REPLACEMENT PARTS and ACCESSORIES

FlexPak 3000 49’1340

e

8-8

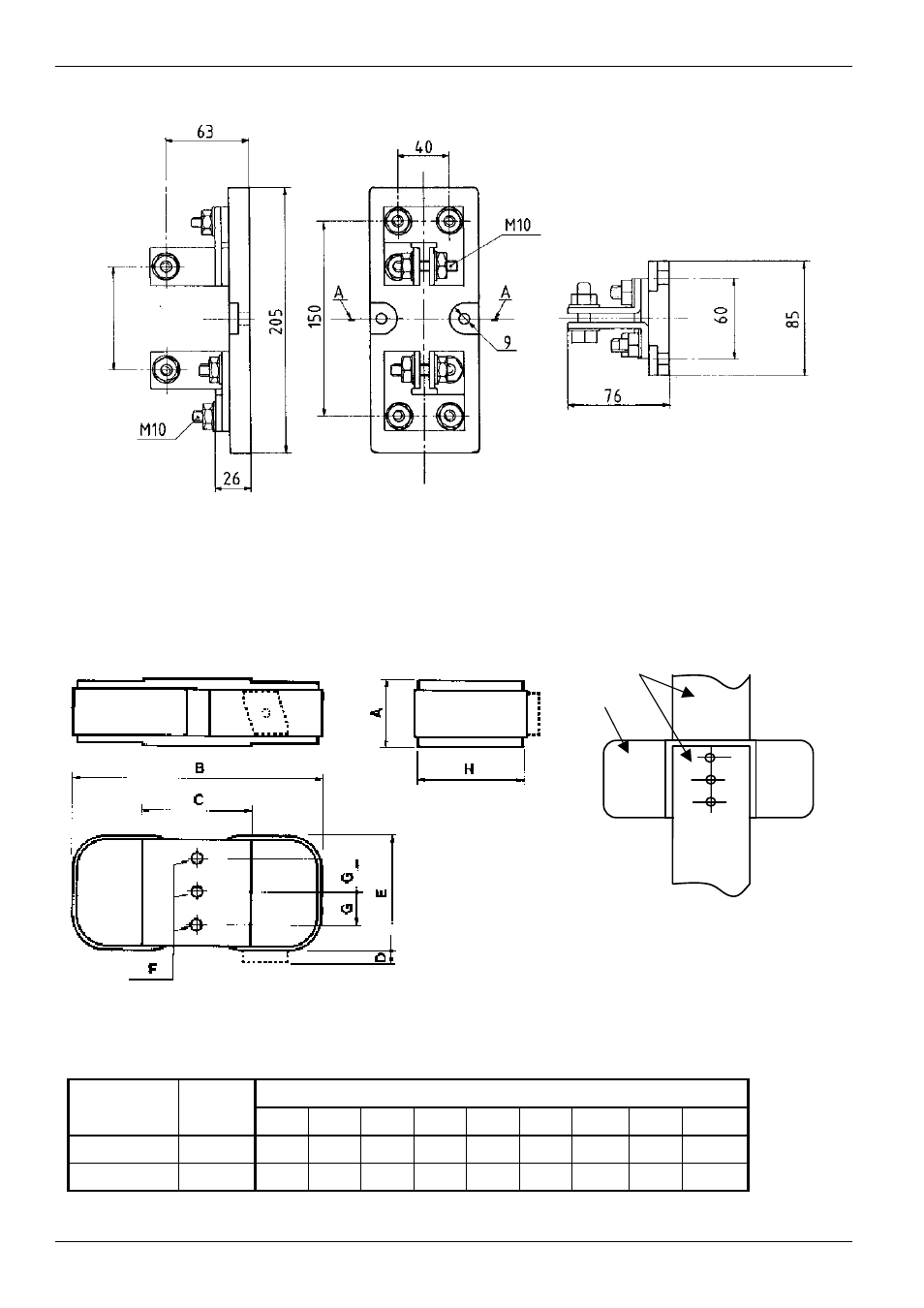

Fuse Holder Dimensions

(continued)

80 (

11

0)

Part number 511.26.01
for fuses DIN 80/ 3K, 660 V, 800 - 1250 A, (553.33.xx) spacing 80 mm

Part number 511.26.03
for fuses DIN 80/ 3K, 800 V, 800 - 1250 A, (553.34.xx) spacing 110 mm

Bus bars

Fuse

To guarantee free air circulation,
the fuses must be mounted
between the input/output bus-bars
as shown, with enough space to
the next fuse.

Cooling air per fuse: 130 m

3

/h

Fuse Dimensions

Fuse
Part Number

Nominal
Current

A B C D E F G H Pv

553.72.00

2000

A:

60 230 100 15 105

M12

31,25

100

340

W

553.72.01

2500

A:

60 230 100 15 105

M12

31,25

100

390

W

Fuses for FlexPak 3000 type 2000 A (non UL, cUL)
