Rockwell Automation FlexPak 3000 Power Module SW-Version 4.3 User Manual
Page 45
DRIVE SETUP AND ADJUSTMENT
49’1340 e
FlexPak 3000
4-3
4.5.1
Set the Regulator Type - J15 Jumper
J15 determines whether the drive uses Speed/Voltage (SPEED) or Torque/Current (CURRENT)
regulation.
When CURRENT is selected, only the terminal strip or the AutoMax Network Communication
Board can be used as the control source. and the reference selection is automatically set to
AUTO mode.
Also note that speed/voltage parameters must be set to provide overspeed protection for the
drive.
J17
J28 J22
J15 J20 J26
J16 J21
J25
F2
GND
F1
GND1
ARM I
IOGND2
J7
J5
J2
0VI2
F3
GND3
J9
J1
J8
F4
GND4
J18
J12 J10 J19
J14 J11
J6
EPROM
790.30.70
J30 J29 J27
J4
J3

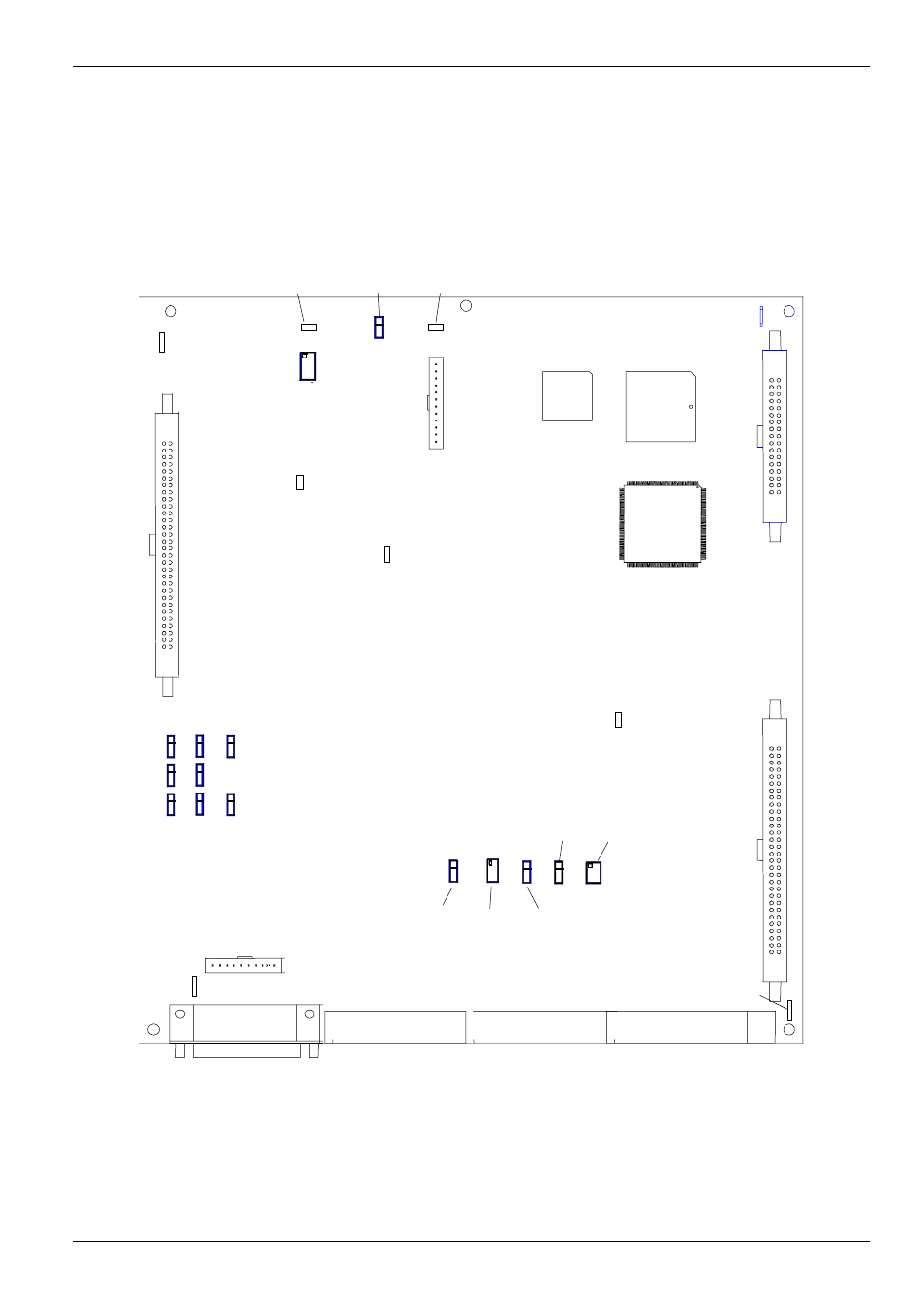

Figure 4.1 - Regulator Board Jumpers, Connectors and Test Points
