Rockwell Automation Publication 2080-UM002F-EN-E - December 2013 53
Communication Connections Chapter 5

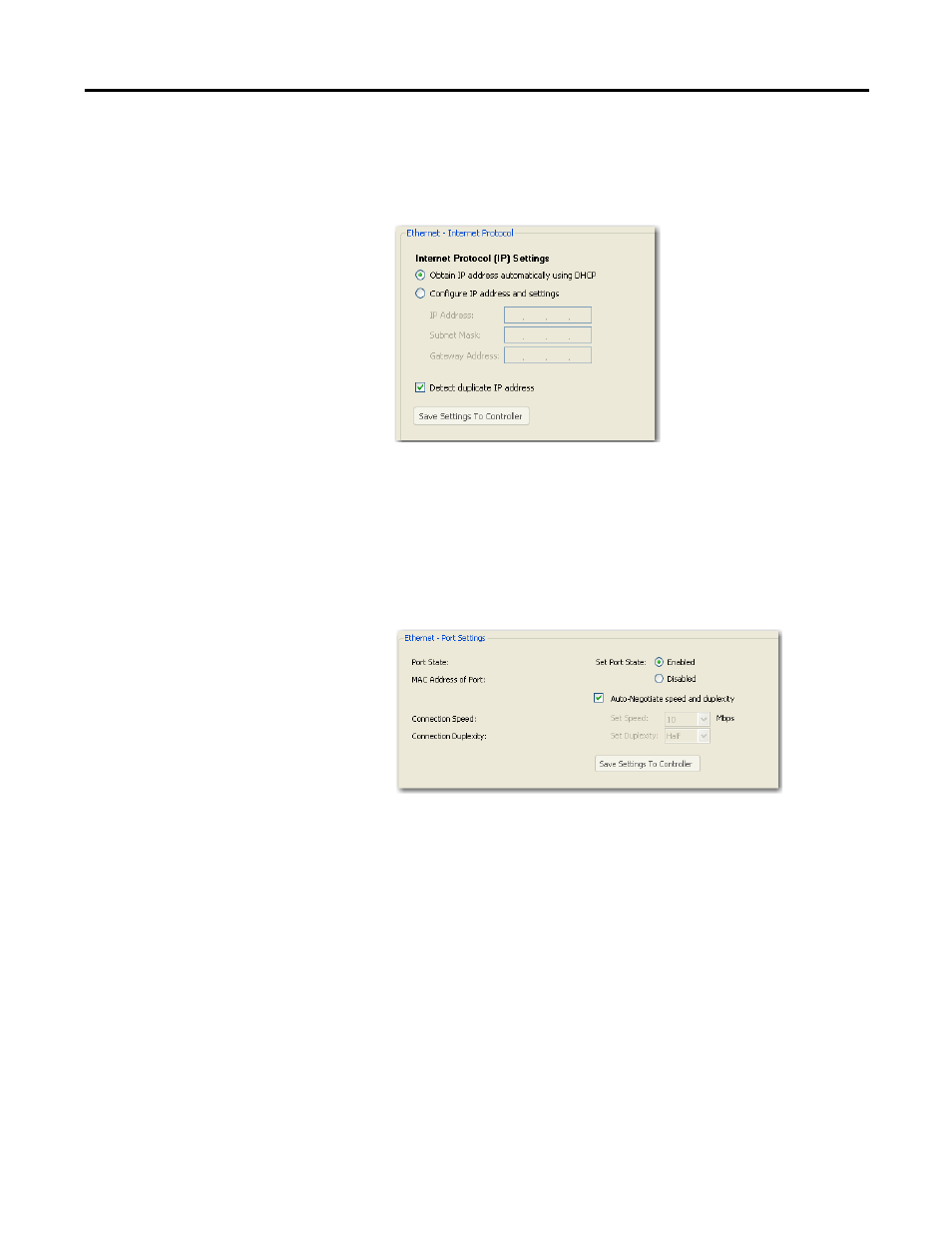

2. Under Ethernet, click Internet Protocol.
Configure Internet Protocol (IP) settings. Specify whether to obtain the
IP address automatically using DHCP or manually configure IP address,
subnet mask, and gateway address.
3. Click the checkbox Detect duplicate IP address to enable detection of
duplicate address.
4. Under Ethernet, click Port Settings.
5. Set Port State as Enabled or Disabled.
6. To manually set connection speed and duplexity, uncheck the option box
Auto-Negotiate speed and duplexity. Then, set Speed (10 or 100 Mbps)
and Duplexity (Half or Full) values.
7. Click Save Settings to Controller if you would like to save the settings to
your controller.
8. On the device configuration tree, under Ethernet, click Port Diagnostics to
monitor Interface and Media counters. The counters are available and
updated when the controller is in Debug mode.
TIP The Ethernet port defaults to the following out-of-the box settings:
• DHCP (dynamic IP address)
• Address Duplicate Detection: On
