Chapter 1 Hardware Overview
Micro850 Controllers
Controller Description
Description
Description
1
Status indicators
9
Expansion I/O slot cover
2
Optional power supply slot
10
DIN rail mounting latch
3
Plug-in latch
11
Mode switch
4
Plug-in screw hole
12
Type B connector USB port
5
40 pin high speed plug-in connector
13
RS232/RS485 non-isolated combo serial port
6
Removable I/O terminal block
14
RJ-45 Ethernet connector (with embedded green and
yellow LED indicators)
7
Right-side cover
15
Optional power supply
8
Mounting screw hole / mounting foot
Status Indicator Description
(1)
(1) For detailed descriptions of the different status LED indicators, see
.
Description
Description
16
Input status
21
Fault status
17
Module Status
22
Force status
18
Network Status
23
Serial communications status
19
Power status
24
Output status
20
Run status
16
21
17
18
19
20
22
23
24
45909
45910
Status indicators
1
2
3
4
5
6
7
8
8
10
6
11
12
13
14
15
9
10

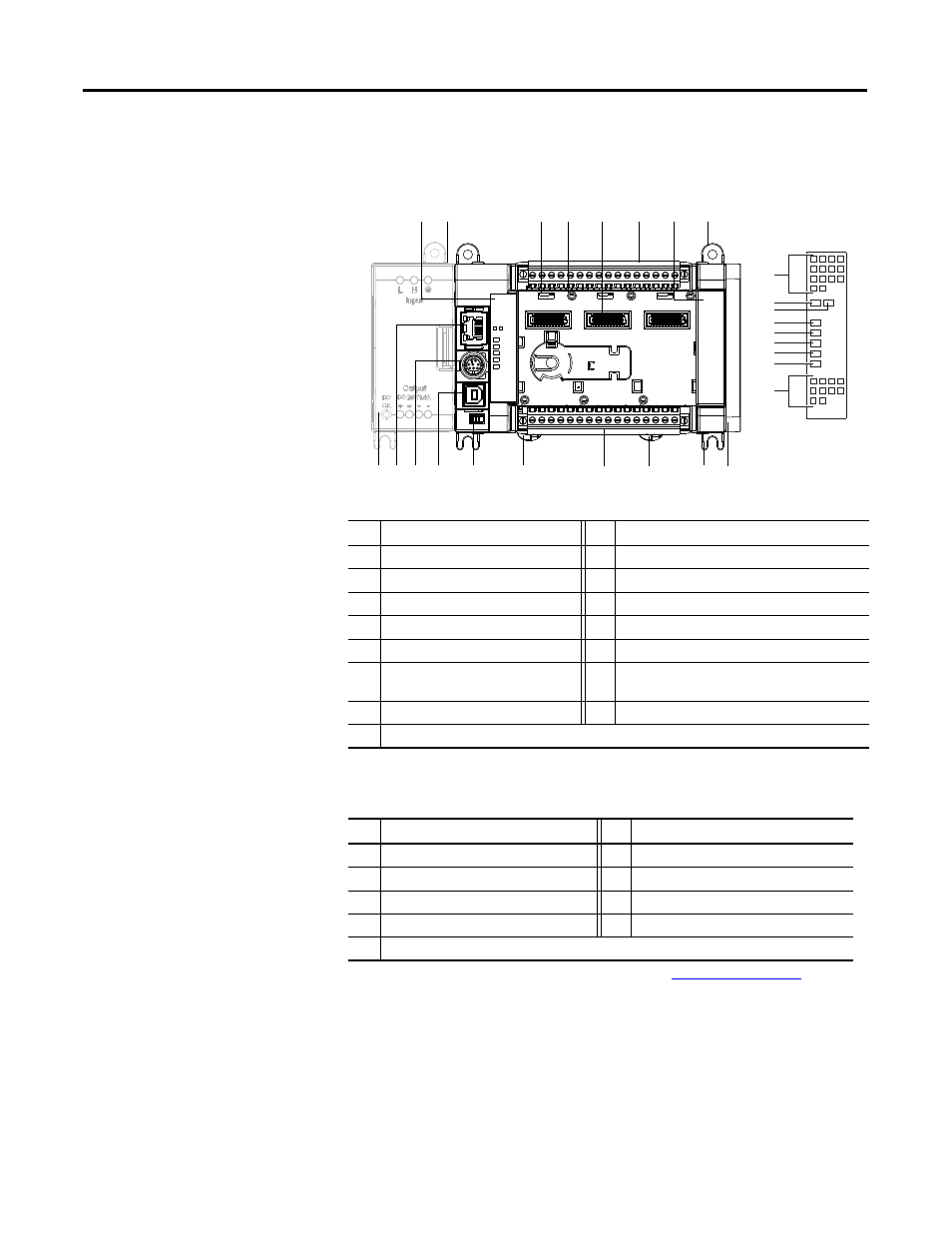

Micro850 24-point controllers and status indicators
