Chapter 3 Install Your Controller
Panel Mounting
The preferred mounting method is to use four M4 (#8) screws per module. Hole
spacing tolerance: ±0.4 mm (0.016 in.).
Follow these steps to install your controller using mounting screws.
1.
Place the controller against the panel where you are mounting it. Make sure
the controller is spaced properly.
2.
Mark drilling holes through the mounting screw holes and mounting feet
then remove the controller.
3.
Drill the holes at the markings, then replace the controller and mount it.
Leave the protective debris strip in place until you are finished wiring the
controller and any other devices.

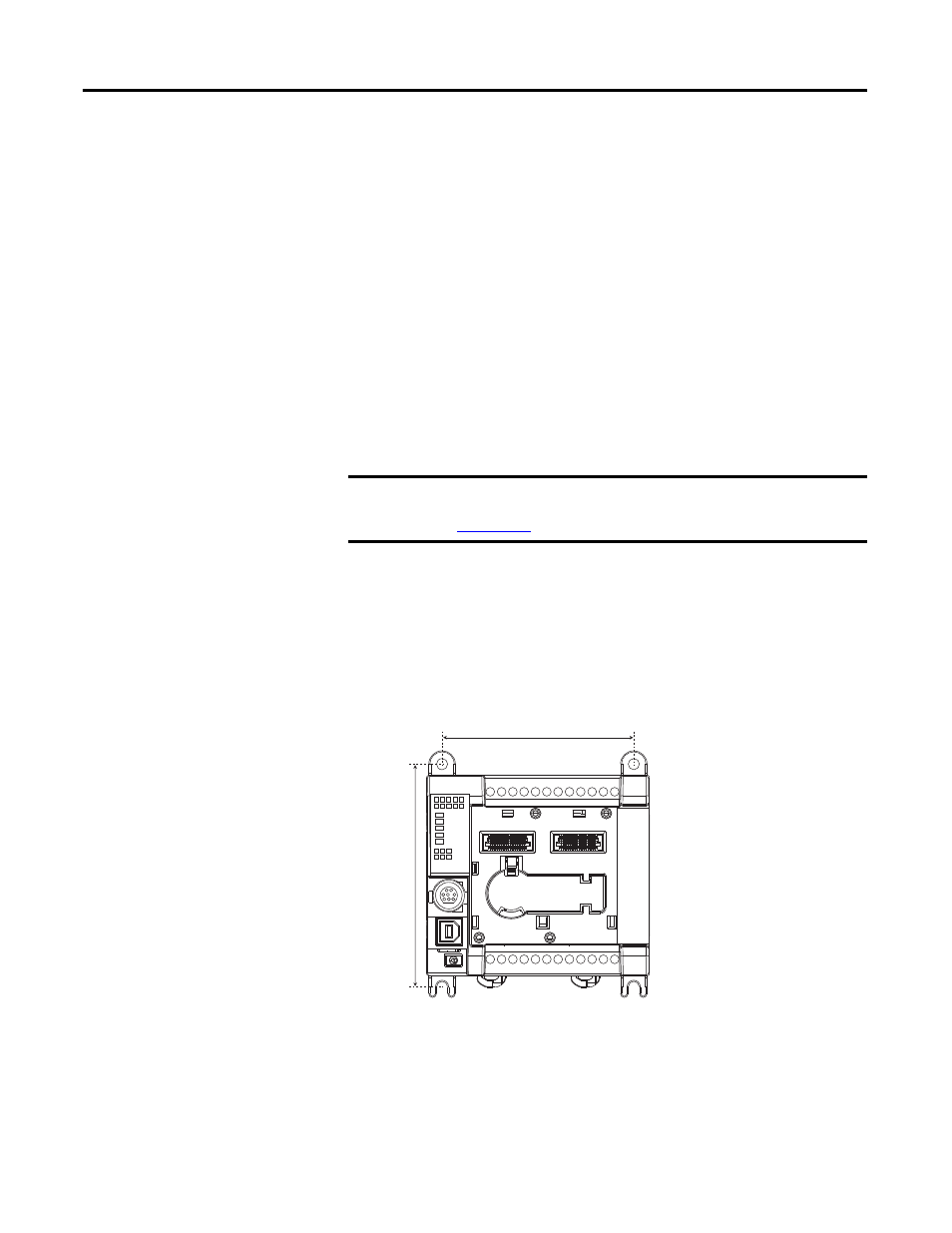

Panel Mounting Dimensions
Micro830 10- and 16-Point Controllers
2080-LC30-10QWB, 2080-LC30-10QVB, 2080-LC30-16AWB, 2080-LC30-
16QWB, 2080-LC30-16QVB
IMPORTANT
For instructions on how to install your Micro800 system with expansion
I/O, see the User Manual for Micro800 Expansion I/O Modules,
45325
86 mm (3.39 in.)
100 mm (3.94 i
n.)
