Rockwell Automation Publication 1408-UM001D-EN-P - September 2013

121

SCADA Applications Appendix B

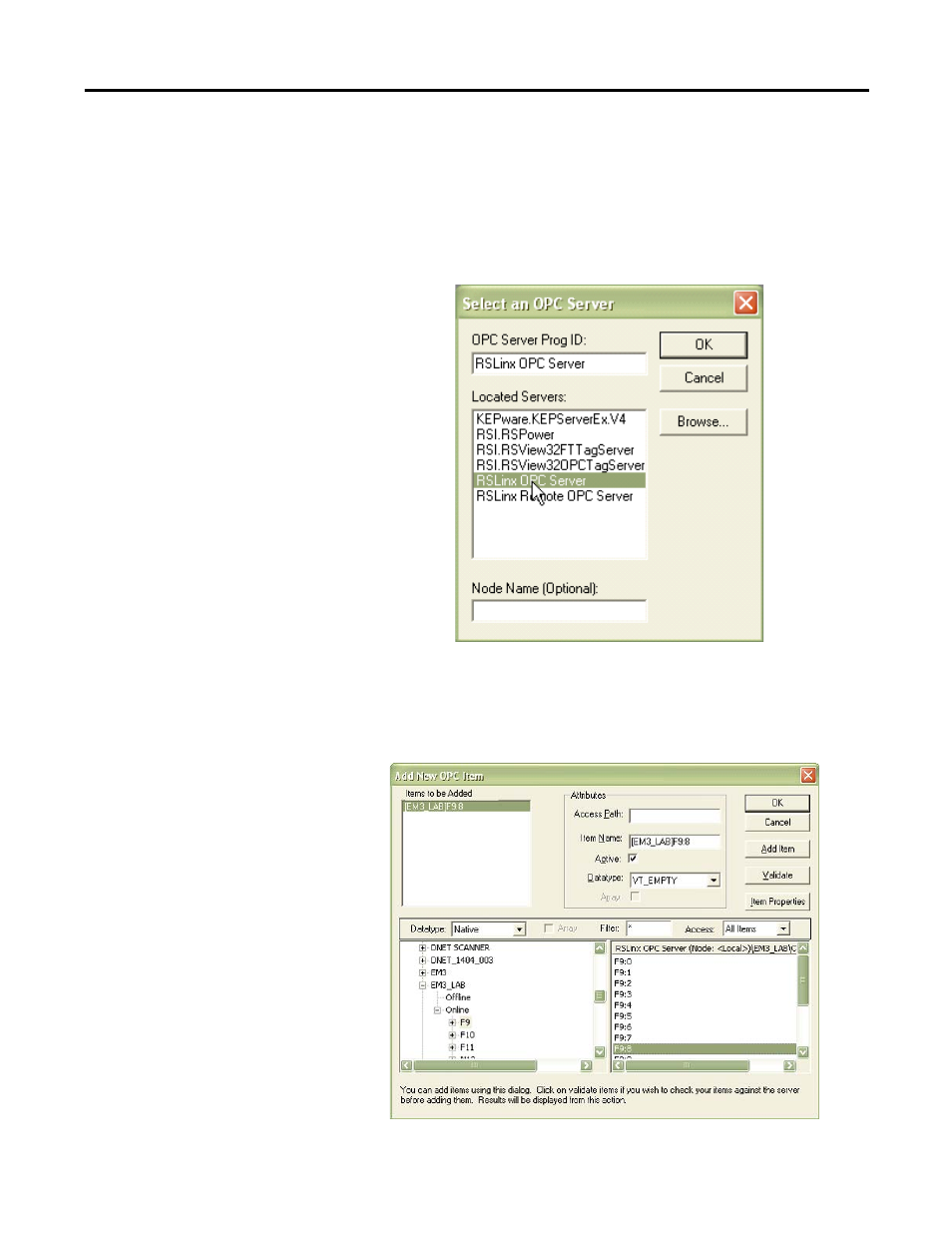

Browse OPC Tags

The power monitor supports OPC tag browsing. The example uses the RSI OPC

Test Client to illustrate tag browsing.

1. Open the RSI Test Client and connect to the RSLinx Classic OPC Server.

2. Add a group, then add an item. Browse to the OPC topic and then to the

table and element in the Online tags.

In this example, the User Configured Read Instance F9, element 8, in the

OPC topic EM3_LAB is selected.
