120

Rockwell Automation Publication 1408-UM001D-EN-P - September 2013

Appendix B SCADA Applications

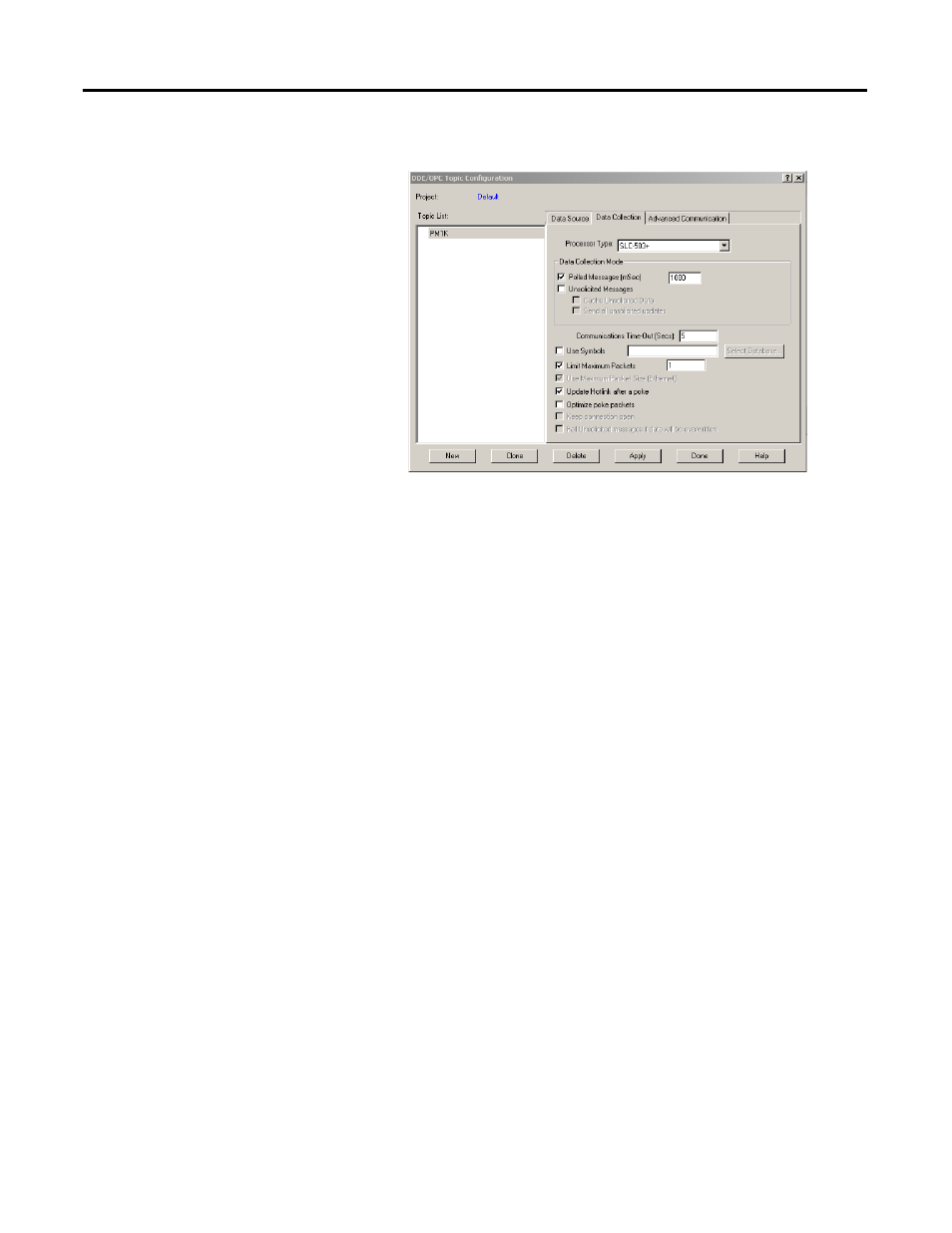

8. From the Processor Type menu, choose SLC 503+.

9. Click Done.

OPC Topic configuration is complete.

You can now use the RSLinx OPC Server, and the topic just created, to serve data

to your application.

OPC item addresses are of the format [OPC Topic Name]Address,Ln,C1 where

Address is the power monitor data address (example: F21:7). Optional argument

Ln is the length of the array requested in elements. If the Ln argument is used, C1

(number of array columns) must also be specified.
