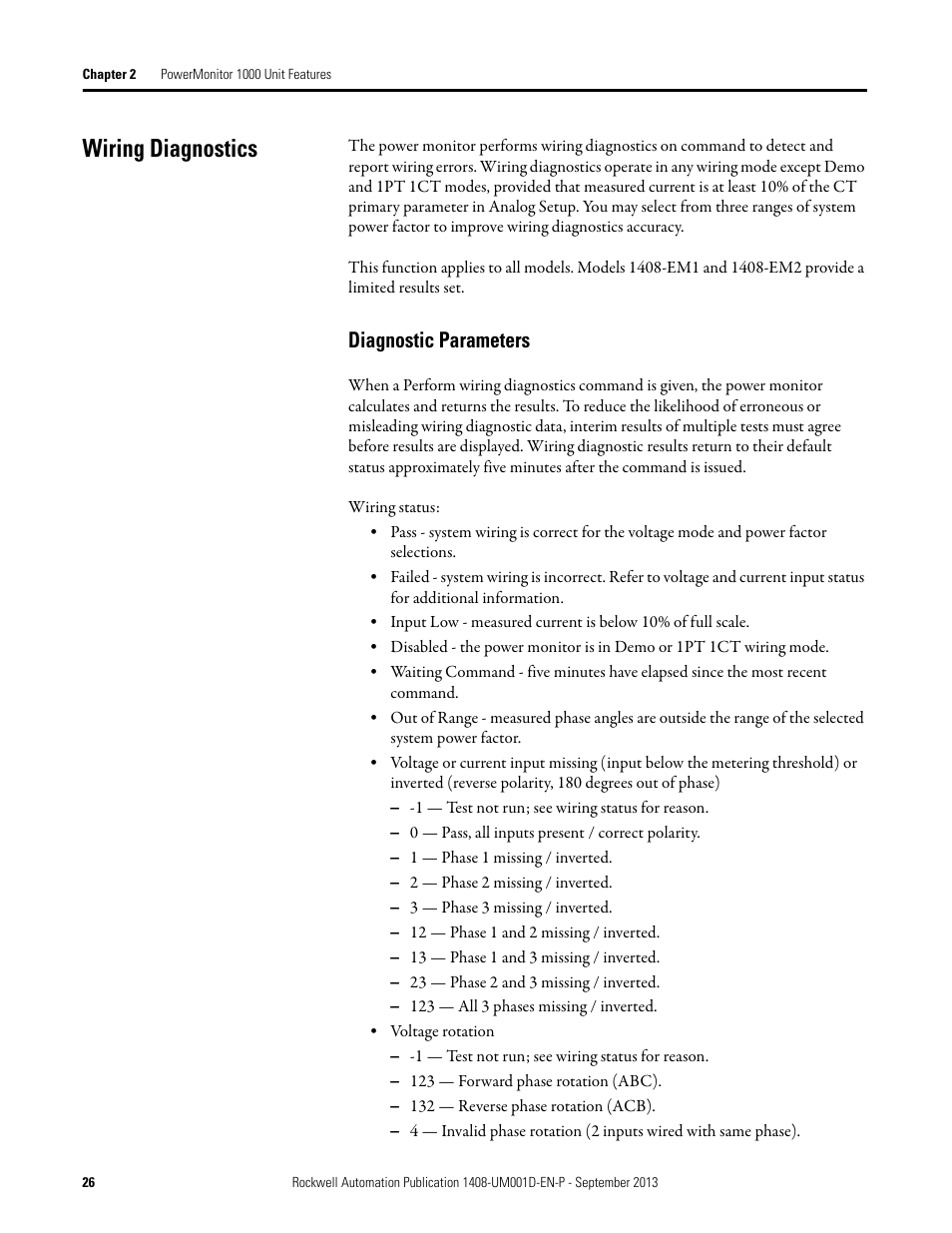

Wiring diagnostics, Diagnostic parameters – Rockwell Automation 1408-EMxx PowerMonitor 1000 Unit User Manual
Page 26
