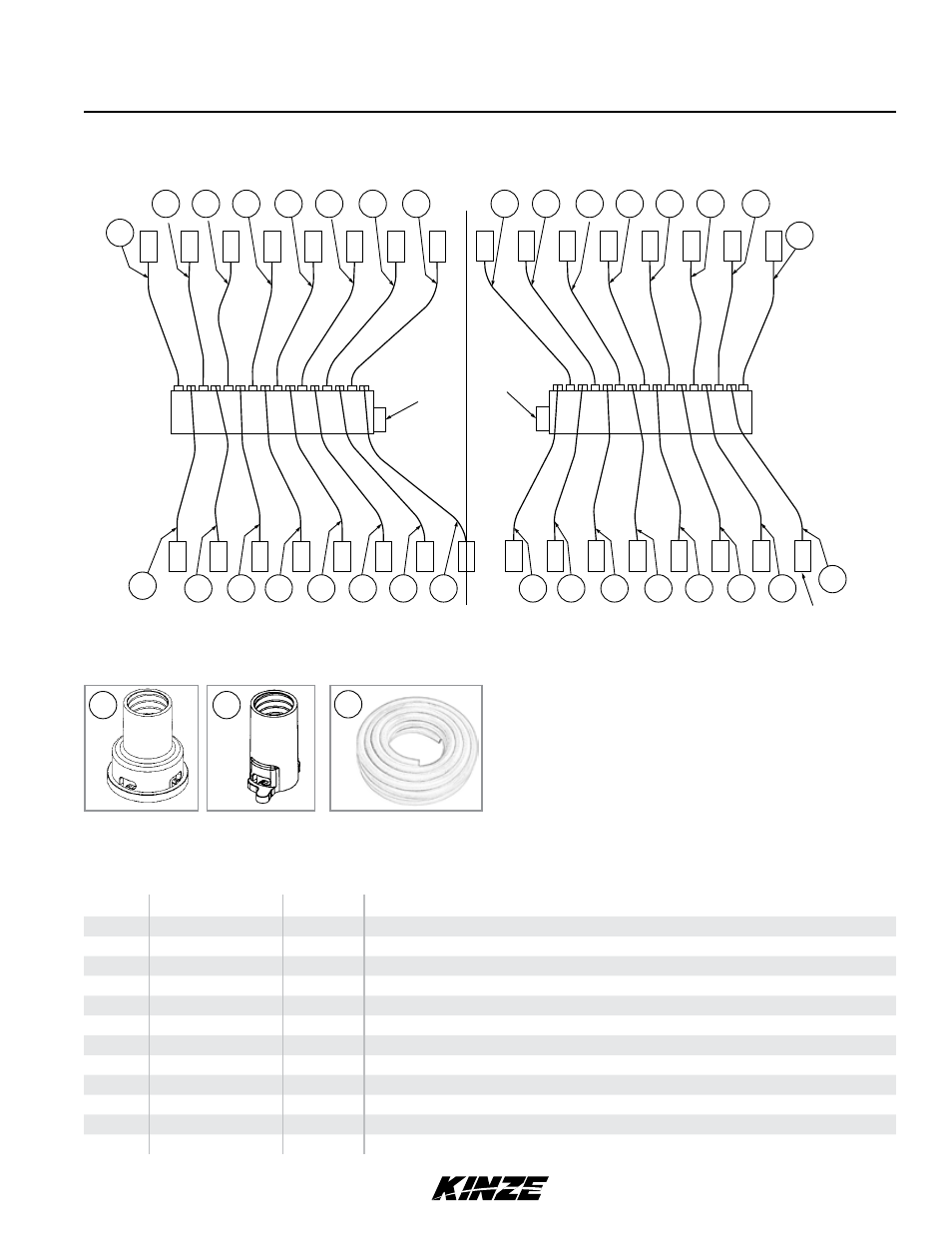

ASD Hoses, 16 Row
ITEM
PART NO.
QTY.
DESCRIPTION
1
GA13800
-
Hose Assembly, 1¼" x 218"
2
GA13801
-
Hose Assembly, 1¼" x 192"
3
GA13802
-
Hose Assembly, 1¼" x 161"
4
GA13803
-
Hose Assembly, 1¼" x 133"
5
GA13804
-
Hose Assembly, 1¼" x 101"
6
GA13805
-
Hose Assembly, 1¼" x 71"
7
GA13806
-
Hose Assembly, 1¼" x 62"
8
GA13807
-
Hose Assembly, 1¼" x 82"
9
GA13808
-
Hose Assembly, 1¼" x 93"
10
GB0425
-
Dissipator Quick Coupler
11
GB0429
-
Seed Entrainer Quick Coupler
12
GR1947
-
Bulk Fill Hose, 1" I.D. x 1¼" O.D. x 100'
IP1127
Row Units
Push Units/Interplant
Air in
Air in
R.H. Rear of Machine
L.H. Rear of Machine
R.H.
Entrainment
L.H.
Entrainment
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Even Row
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
6
2
3
4
5
8
9
6
6
1
2
3
4
5
8
9
6
10
11
12
