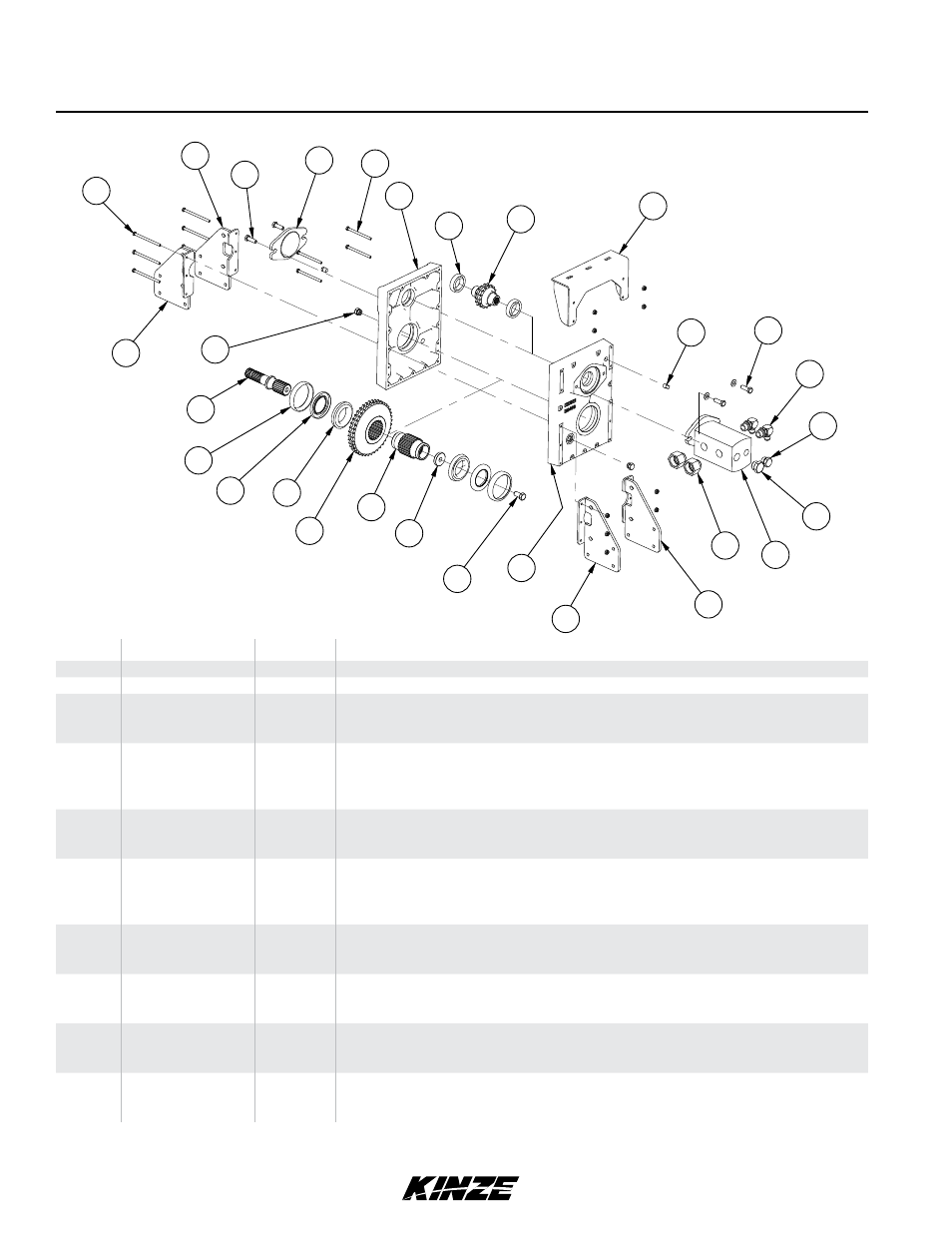

Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 82)

Planter Mounted PTO
ITEM PART NO. QTY. DESCRIPTION
1 GD19497 2 PTO Cover
2 GA13428 1 Hydraulic Tank Assembly
3 GD19513
G10801
G10071 1
4
4 R.H. Rub Bar
Carriage Bolt, ½"-13 x 2¼"
Serrated Flange Nut, ½"-13
4 GA13688
G10004
G11387
G10622 1
4
2
2 Rear Cover Support
Hex Head Cap Screw, ⅜"-16 x 1¼"
Flat Washer, ⅜" SAE
Serrated Flange Nut, ⅜"-16
5 GD19504
G10305
G10622 2
2
2 Rear Cover Bracket
Carriage Bolt, ⅜"-16 x 1"
Serrated Flange Nut, ⅜"-16
6 GA13433
G10017
G11389
G10071 1
2
2
2 Rub Bar Mount
Hex Head Cap Screw, ½"-13 x 1½"
Flat Washer, ½" Plated SAE
Serrated Flange Nut, ½"-13
7 GA13360
G10636
G10071 1
1
1 R.H. PTO Tank Support
Carriage Bolt, ½"-13 x 1 ½"
Serrated Flange Nut, ½"-13
8 GA13359
G10636
G10071 1
1
1 L.H. PTO Tank Support
Carriage Bolt, ½"-13 x 1 ½"
Serrated Flange Nut, ½"-13
9 GD19512
G10801
G10071 1
4
4 L.H. Rub Bar
Carriage Bolt, ½"-13 x 2¼"
Serrated Flange Nut, ½"-13
10 GA13436
G10305
G11091 1
3
3 Rear Tank Mount
Carriage Bolt, ⅜"-16 x 1"
Serrated Flange Nut, ⅜"-16
21
23
23
28
21
29
26
27
22
38
37
36
35
31
32
33 34
20
22
24
25
39 27
42
41
44
43
40
30
TM
M0217-02 Model 3660
P79 Rev. 7/11
