Hose spring anchor – Kinze 3660 Lift and Rotate Planter Rev. 6/14 User Manual
Page 152

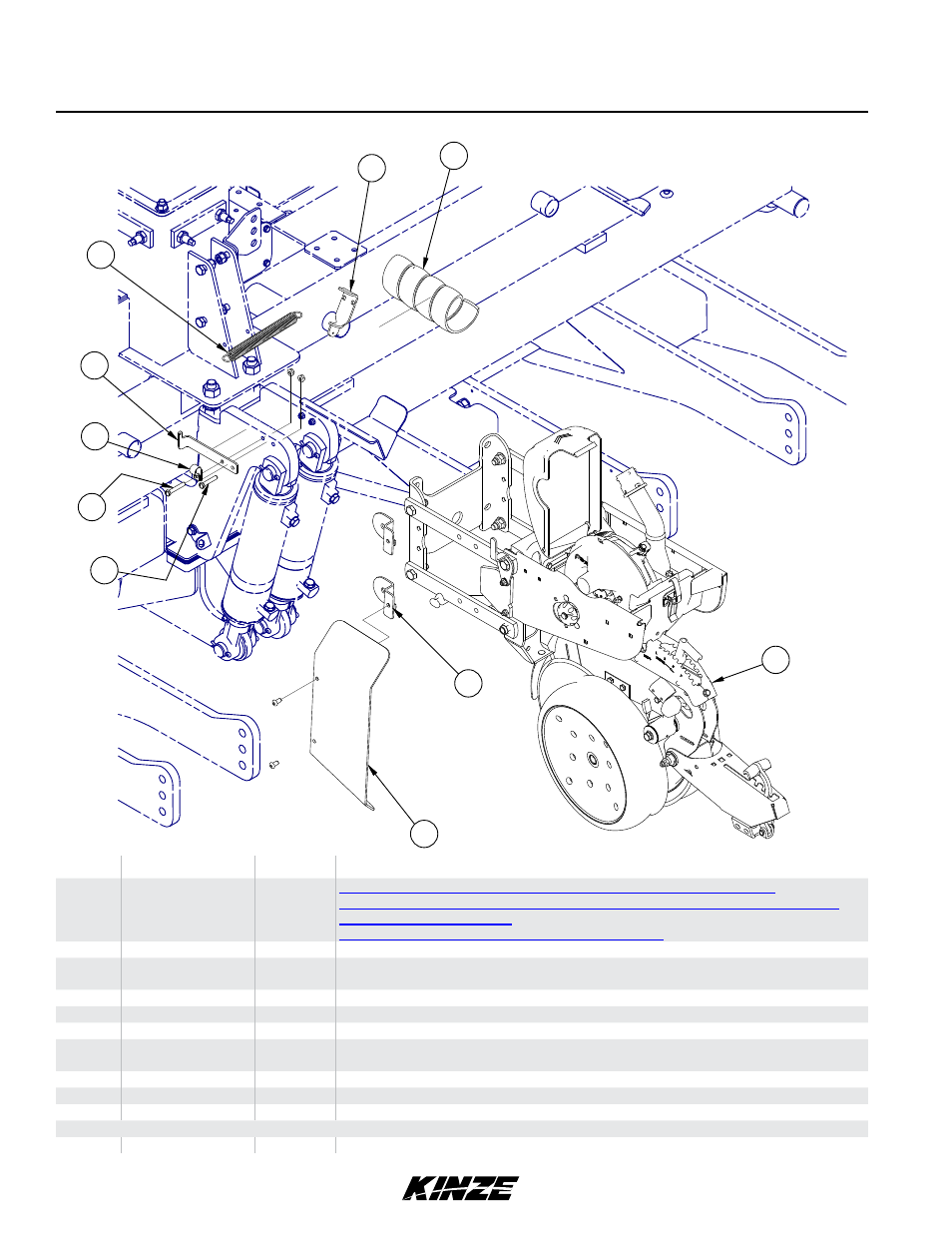

Hose Spring Anchor
3
2
1
10
9
8
7
6
5
4
(IP1093)
ITEM
PART NO.
QTY.
DESCRIPTION
1
---
-
See "Shank Assembly, Seed Tube, and Depth Adjustment" on page P1
See "Parallel Arms, Mounting Support Plate, and Quick Adjustable Down Forces
See "Hopper Support and Meter Drive" on page P21
2
GA14760
2
Shield Bracket
3
GD21094
G11286
1
2
Shield
Hex Socket Button Head Cap Screw, ⅜"-16 x ¾", Grade 8
4
G10048
1
Hex Head Cap Screw, ⅜"-16 x 2"
5
G10939
1
Hex Head Cap Screw, ⅜"-16 x 2¼"
6
GD20095
1
Insulated Clamp
7
GD19793
G10622
1
2
Hose Anchor Bracket
Serrated Flange Nut, ⅜"-16
8
GD0829
1
Spring
9
GA14761
1
Hose Anchor
10
GD19383-01
1
Hose Wrap, 90"
A
G1K488
-
Hose Spring Anchor Kit, Includes Items 1-9
TM
M0217-02
Model 3660
P149
Rev. 6/13
