Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 76)

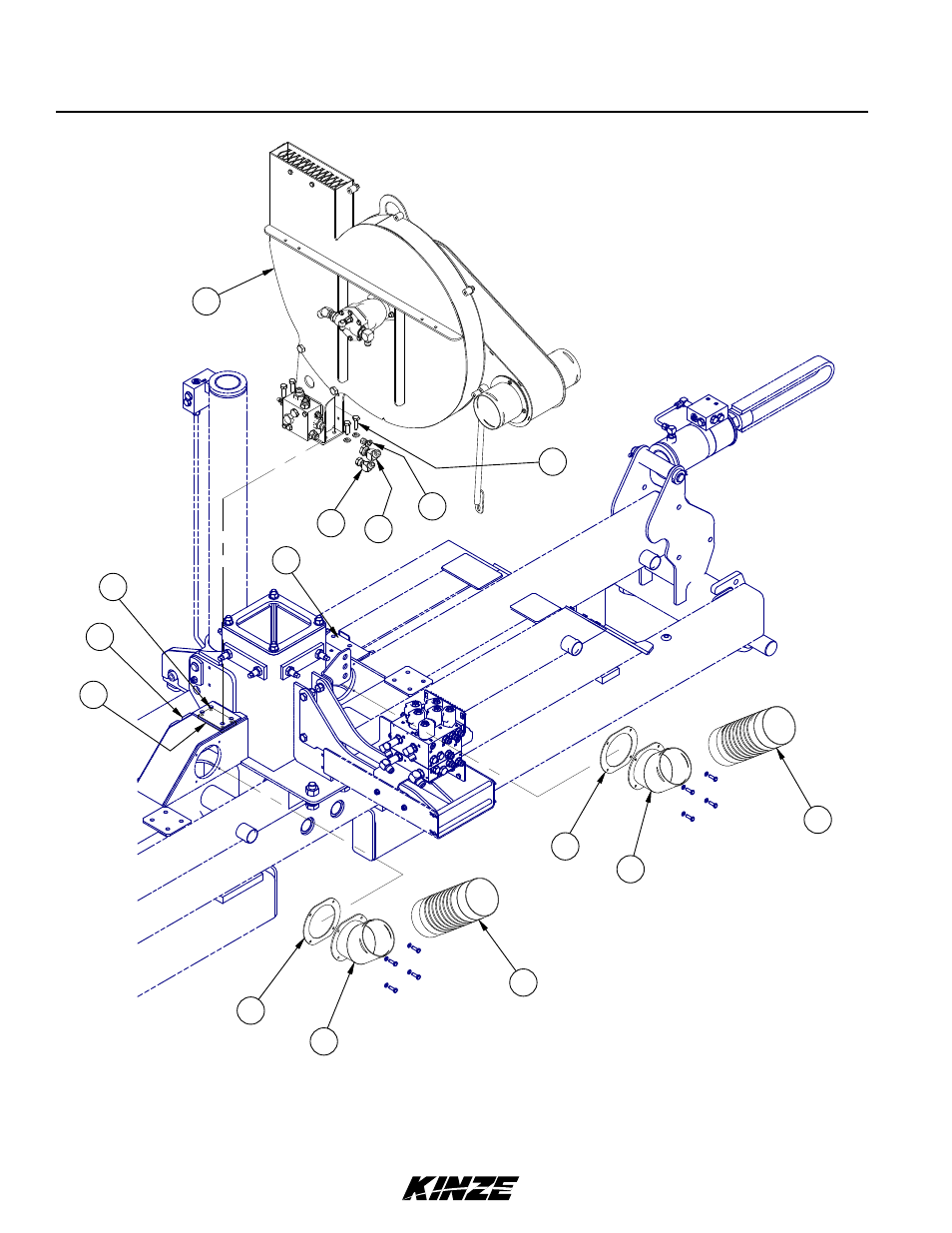

EdgeVac Manifolds and Distribution Hoses
(IP1070)
1 ASSY, E-V FAN A13438 1
2 HOSE, 5" REINF 5 ID X 5-1/4 OD X 13 D15867-01 2
2 E-V MANIFOLD FLANGE GASKET D18873 3
2 WELD, MANIFOLD FLANGE A13306 4
4 HHCS, 5/16-18 X 5/8 GR5 PLTD 10018
4 WASHER, 5/16 SPRING LOCK PLTD 10232
4 HHCS 1/2-13 X 1-1/2 GR5 CS PLT 10017 5
4 WASHER, 1/2 SPRING LOCK PLTD 10228
1 ELBOW, 9/16-18 JIC SWIVEL 45 DEG 6502-06 6
1 ELBOW,1-1/16-12 JIC SWIVEL 45 DEG 6502-12 7
1 ELBOW, 7/8-14 JIC SWIVEL 45 DEG 6502-10 8
1 FAN MOUNT TAP BLOCK D19856 9
2 PLUG LOCKING 5/16" PUSH-IN 11335 10
8 PLUG LOCKING 1/2" PUSH-IN 11336 11
QTY DESCRIPTION PART NUMBER ITEM
IP1070
JASON LUCAS
2
2
3
4
4
3
1
6
8
7
5
9
11
10
11
TM
M0217-02 Model 3660
P73 Rev. 7/11
