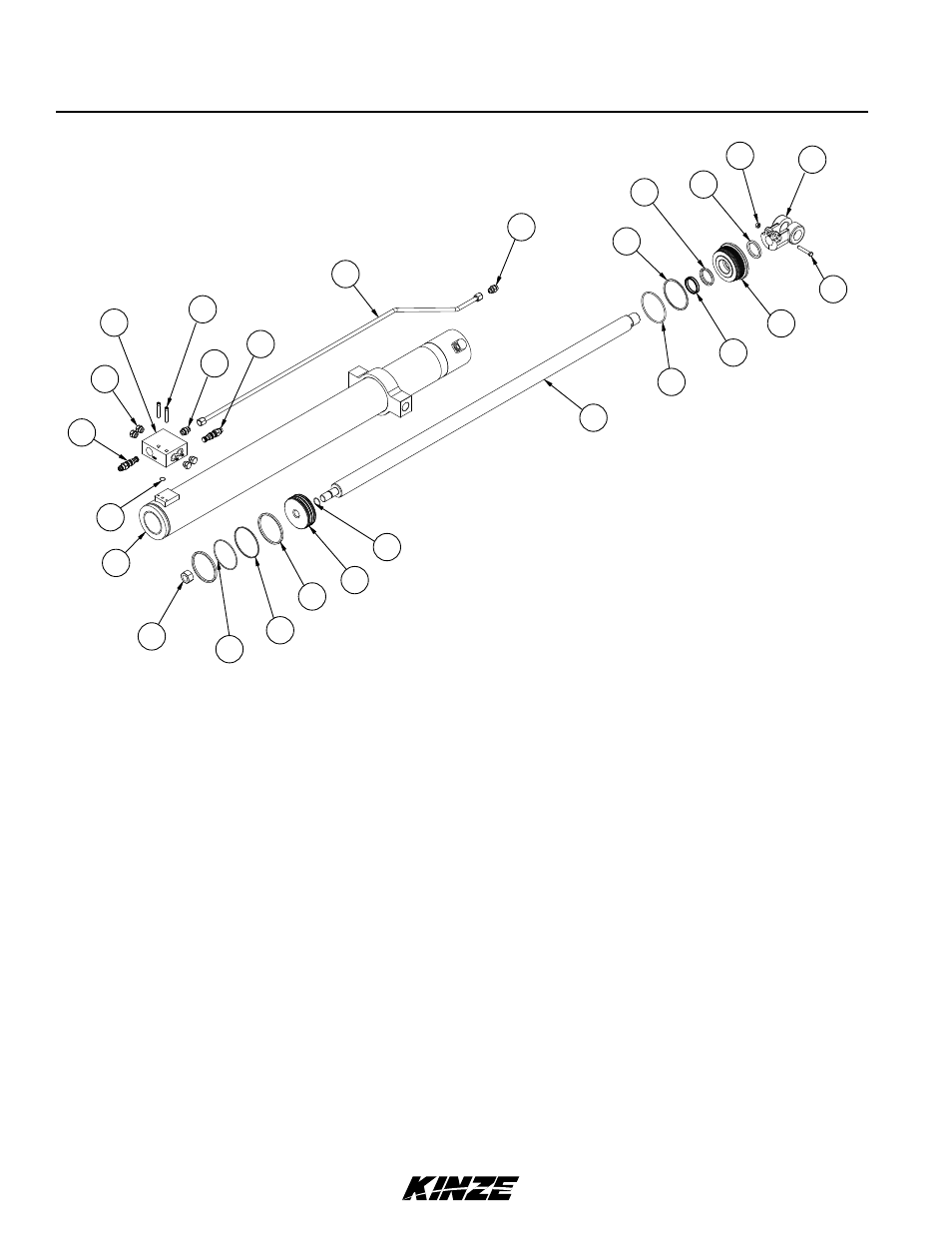

Transport Lift Cylinder
1 O-RING #120, 78D VITON D12226 1
1 ROD CYL, 2 OD X 58.75 D19316 2
1 O-RING #345, 75D VITON D12242 3
1 BACK-UP RING # 348, 53D POLYMYTE D12243 4
1 U-CUP LIP SEAL, 2" SPRING LOADED D12255 5
1 ROD WIPER, 2" POLYMYTE D12240 6
1 GUIDE, HEAD GLAND D12522 7
1 RING, LATHE CUT 2" D12106 8
1 ASSY, ROD CLEVIS A13025
-
1 CLEVIS, CYLINDER D18528 9
1 HHCS, 3/8-16 X 2.25 GR5 PLTD 10939 10
1 NUT, HEX,3/8 - 16 GR5 PLTD 10101 11
2 ADAPTER, 3/4-16 JIC,3/4-16 O-RING 6400-08 12
1 HYDRAULIC LINE, STEEL A13556 13
2 VALVE, COUNTERBALANCE (SUN) A8882 14
2 HSHCS, 5/16 - 18 X 2 GR8 PLTD 10932 15
4 O-RING PLUG, 3/4-16 HEX HEAD 6408-08 16
1 BLOCK, MANIFOLD D15623 17
1 O-RING #016, 75D VITON D12239 18
1 WELD, CYLINDER BODY A13549 19
1 LOCKNUT, HEX 1-14 GR C PLN AZTEC 10958 20
2 PISTON RING, 4-1/2" CAST IRON D12085 21
1 PISTON SEAL, 4-1/2" PTFE D12086 22
1 ENERGIZER, SEAL 4-1/2" #155 VITON D12244 23
1 PISTON, 4-1/2 DIA D19261 24
QTY DESCRIPTION PART NUMBER ITEM
TODD GRAY
IP1022
2
3
4
5
6
7
8
9
11
10
1
24
21
23
22
20
19
12
13
14
12
15
16
18
14
17
(IP1022a)
TM
M0217-02 Model 3660
P171 Rev. 7/11
