Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 126)

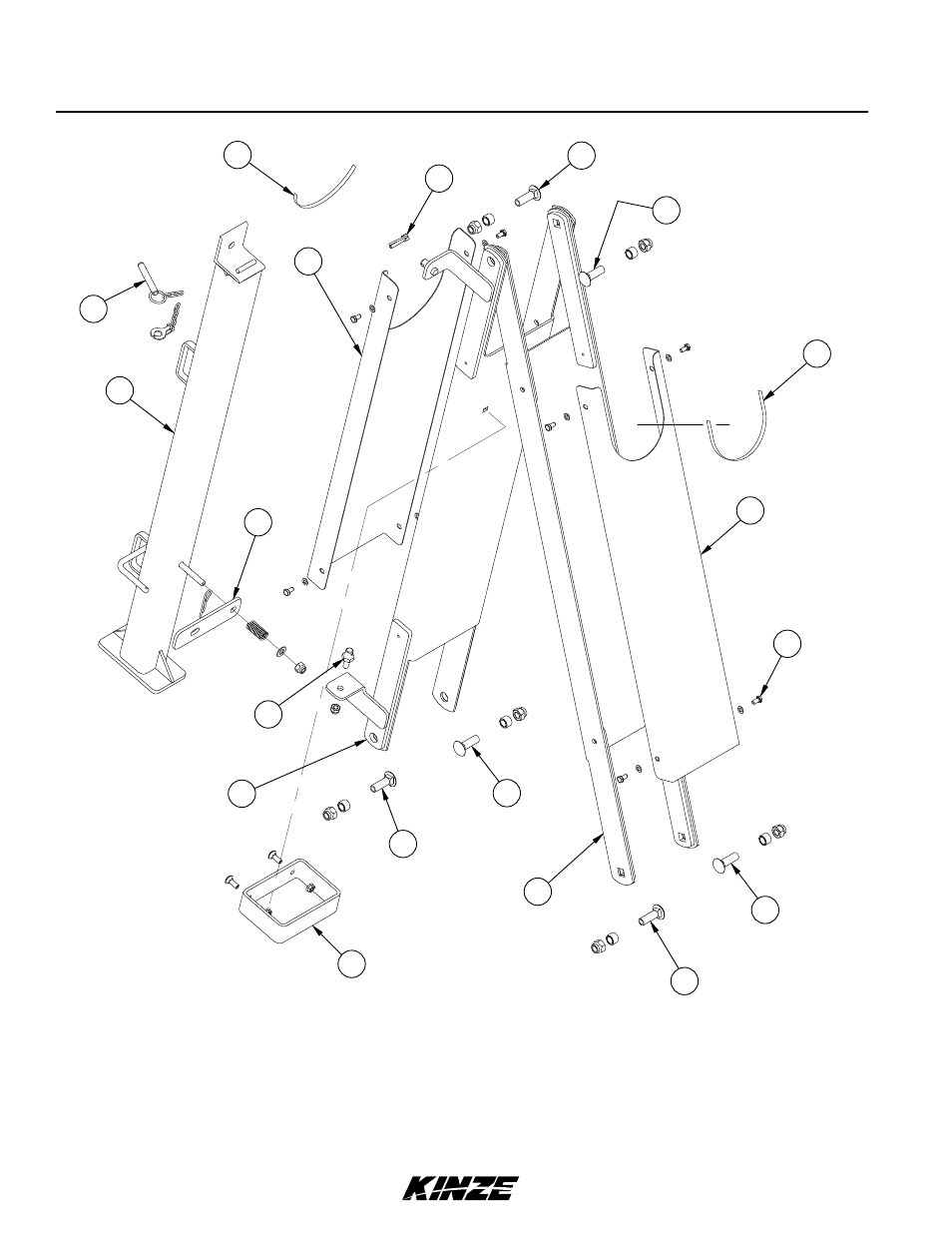

Hose Take-up, 16 Row
(IP1013b)
1 WELD, HOSE TAKE UP-FRONT A13961 1
1 WELD, HOSE TAKE UP-REAR A13171 2
6 BOLT, CARR 5/8-11 X 2 GR5 PLTD 10689 3
6 BUSHING, .880 OD X .645 X .580/.590 B0218
6 LOCKNUT, HEX 5/8 - 11 GR B PLTD AZTEC 10107
1 COVER, REAR HOSE TAKE-UP D18709 4
1 COVER, FRONT HOSE TAKE-UP D18710 5
8 HHCS, 5/16-18 X 0.625 GR5 PLTD 10018 6
8 WASHER, FLAT 5/16 SAE PLTD 10221
1 PIN, HOLD UP 7/16-14 PLTD D8276 7
1 LOCKNUT, HEX 7/16 - 14 GR B PLTD AZTEC 10113
1 SAFETY LOCK-UP A13657 -
1 SAFETY LOCK-UP WELD A13655 8
1 LOCK-UP LATCH BRKT D19430 9
1 LOCKNUT, HEX 1/2 - 13 GR B PLTD AZTEC 10111
1 WASHER, FLAT 1/2 SAE PLTD 10206
1 CLIP, HAIRPIN #11 PLTD, 1/8 X 2-9/16 10592
1 SFT (RD) SILCN RBBR TUBE 3/4 X 5.38 D18071-03
1 SPRING, COMPRESSION D19462
1 DETENT PIN W/ CHAIN A13940 10
1 LYNCH PIN, 1/4 PLTD D2558 11
1 HOSE TAKE-UP STOP D19825 12
2 CARR 3/8-16 X 1 GR5 CS PLT 10305
2 NUT-FLG SER 3/8-16 HDN CS PLT 10622
2 EDGE MOLDING, 1/16 X 21.75" 4418-05 13
QTY DESCRIPTION PART NUMBER ITEM
IP1013
Jason Lucas
5
3
3
4
6
3
3
2
3
3
12
1
7
8
10
9
11
13
13
TM
M0217-02 Model 3660
P123 Rev. 7/11
