ITEM PART NO. QTY. DESCRIPTION
1 A13083 1 Barrel (Non-Stock Item)
2 GD27237 1 Nylon Lock Nut, 1¼"-12, Grade 8
3 *D12281 1 Seal
4 GD19003 1 Piston
5 *D12204 1 O-Ring, No. 218
6 GD19001 1 Cylinder Rod
7 *D12264 1 U-Cup
8 *D12221 1 O-Ring, No. 342
9 *D12222 1 Back-up Ring, No. 342
10 GD19002 1 Gland
11 *D12263 1 Wiper
12 GD12121 1 Ring
13 G10640 2 Grease Fitting, ¼"-28
A GA13904 - Cylinder Complete, 4" x 16" (Part Number Stamped On Barrel)
B GR1929 - Seal Kit, Includes: (2) O-Rings, (1) Back-Up Ring, (1) U-Cup, (1) Wiper, (1) T-Seal
*Part of seal kit, item can not be purchased individually.

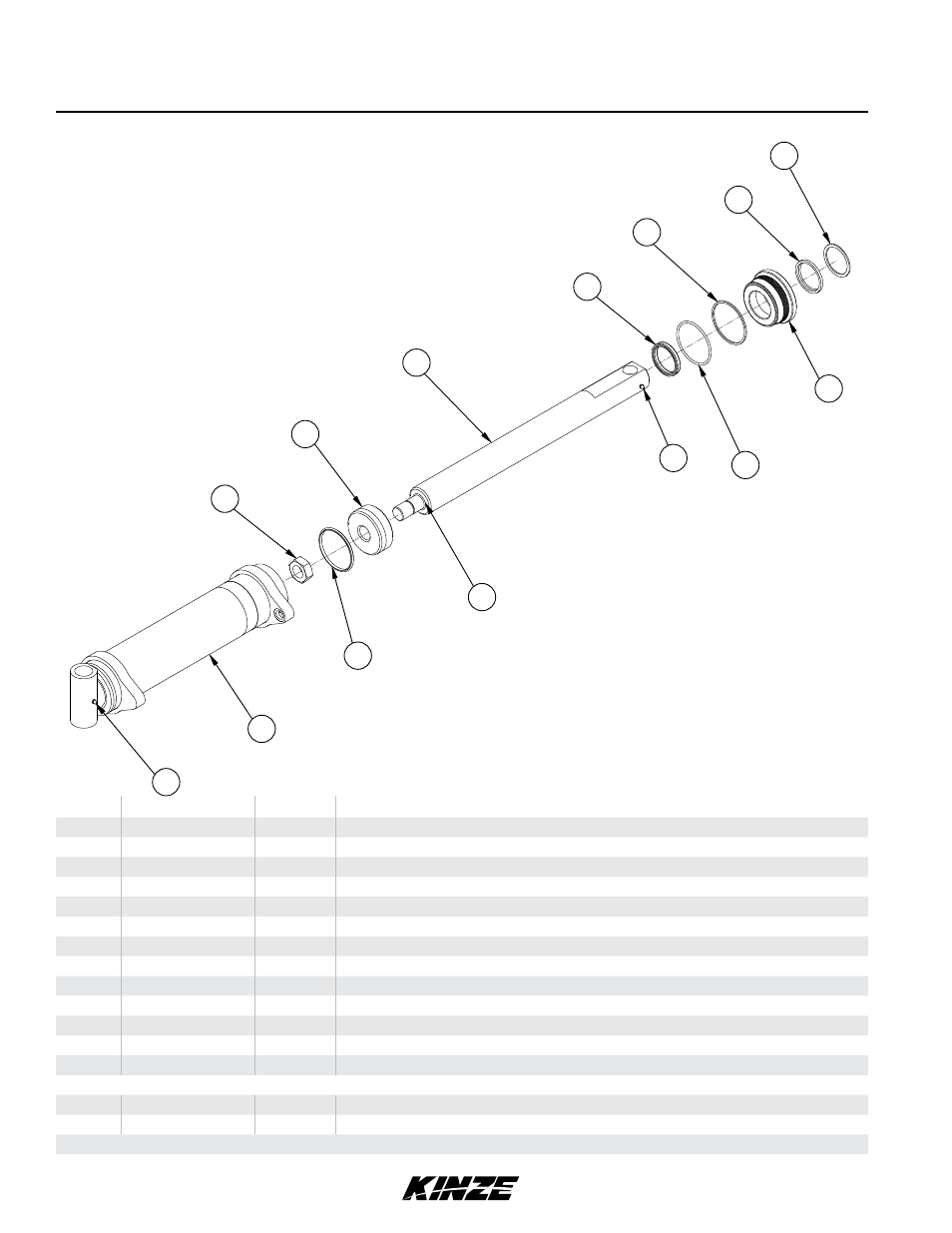

Rotation Cylinder
1
13
2
3
4
6
13
7
8
9
10
11
12
5
(IP1112)
TM
M0217-02 Model 3660
P167 Rev. 6/14
