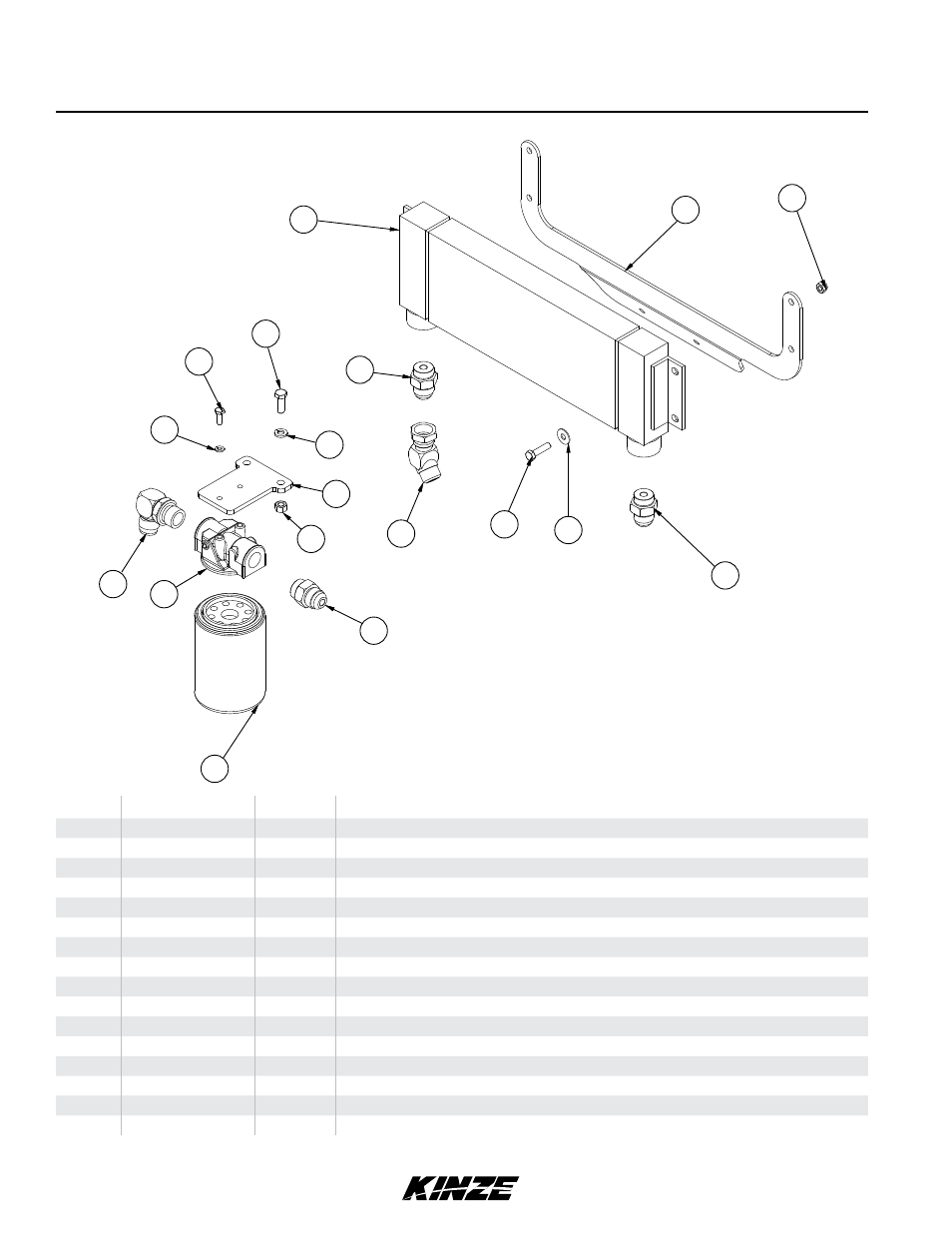

PTO Pump Oil Cooler (Planter Mounted)
(IP1065)
2 HHCS, 3/8-16-1 GR5 PLTD 10001 16
2 WASHER, 3/8 SPRING LOCK PLTD 10229 15
2 VMI HEX NUT_FULL_3/8-16 10101 14
2 WASHER, 1/4 SPRING LOCK PLTD 10227 13
2 HHCS, 1/4-20 X 0.75 GR5 PLTD 10023 12
4 HHCS, 5/16-18 X 1-1/4 GR5 PLTD 10171 11
4 WASHER, FLAT 5/16 USS PLTD 10219 10
4 LOCKNUT, HEX 5/16-18 GR B PLT AZTEC 10109 9
3 ADAPT, 1-1/16-12 JIC, 1-1/16-12 O-RNG 6400-12 8
1 ADJ 90 EL,1-1/16-12 X 1-1/16-12 ORG 6801-12 7
1 ELBOW,1-1/16-12 JIC SWIVEL 45 DEG 6502-12 6
1 E-V OIL FILTER MOUNT D18968 5
1 FILTER, OIL 10 MICRON D16037 4
1 FILTER, HEAD D16038 3
1 COOLER, HYDRAULIC OIL A10917 2
1 BRACKET, OIL COOLER D16608 1
QTY DESCRIPTION PART NUMBER ITEM
2
1
9
8
10
11
6
8
15
16
12
13
14
5
8
7
3
4
ITEM PART NO. QTY. DESCRIPTION
1 GD16608 1 Bracket
2 GA10917 1 Hydraulic Oil Cooler
3 GD16038 1 Filter Head
4 GD16037 1 Oil Filter, 10 Micron
5 GD18968 1 Oil Filter Mount (EdgeVac)
6 G6502-12 1 Swivel Elbow, 45°, 11/16"-12 Male JIC To Female
7 G6801-12 1 Elbow W/O-Ring, 90°, 11/16"-12 Male JIC To O-Ring
8 G6400-12 3 Connector, W/O-Ring, 11/16"-12 Male JIC To O-Ring
9 G10109 4 Lock Nut, 5/16"-18, Grade 8
10 G11386 4 Flat Washer, 5/16" SAE
11 G10171 4 Hex Head Cap Screw, 5/16"-18 x 1¼"
12 G10023 2 Hex Head Cap Screw, ¼"-20 x ¾"
13 G10227 2 Lock Washer, ¼"
14 G10101 2 Hex Nut, ⅜"-16
15 G10229 2 Lock Washer, ⅜"
16 G10001 2 Hex Head Cap Screw, ⅜"-16 x 1"
TM
M0217-02 Model 3660
P77 Rev. 1/12
