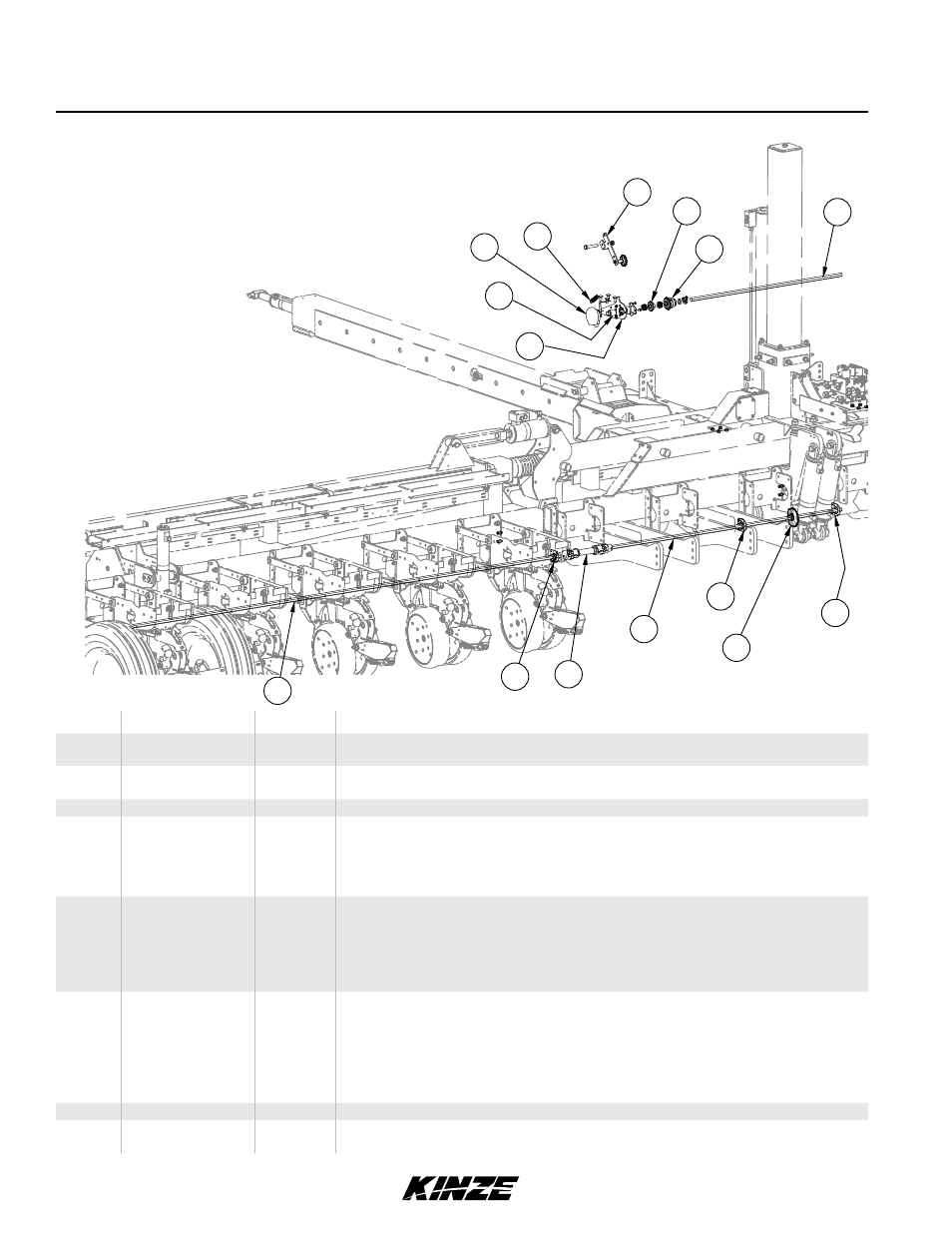

Hydraulic drive, Item part no. qty. description, Rev. 7/11 – Kinze 3660 Lift and Rotate Planter Rev. 6/14 User Manual
Page 130
Hydraulic Drive
2
SHAFT, HEX 7/8 X 138
D0914-138
1
2
U-JOINT ASSY, 4-1/2
A7123
2
4
SQ HD SS, 3/8 - 16 X 5/8 CUP PNT PLTD
10688
2
SHAFT, HEX 7/8 X 75
D0914-75
3
5
HANGER BRG, 7/8 HEX PLTD
A2180
4
2
NUT, HEX,3/8 - 16 GR5 PLTD
10101
2
SPROCKET 30T #40 PLTD
A5114
5
7
HEX LOCK CLAMP ASSY
A11331
23
BUSHING,1-1/2 X 1-1/32 X 10 GA PLTD
10233
1
CARRIER BRACKET
D18747
6
4
FLANGETTE, ZINC PLT
3400-01
2
BEARING, 7/8 HEX BORE
2100-03
6
BOLT, CARR 5/16-18 X 3/4 GR5 PLTD
10312
6
NUT, SERRATED FLANGE 5/16 - 18 PLTD
10620
1
ENCODER, HEX ADAPTER PLTD
A12661
7
1
MODULE, ENCODER
A12565
8
1
BRACKET, ANTI-ROTATION
D19077
2
SPRING
D5857
9
1
HHCS, 3/8-16 X 2 GR5 PLTD
10048
1
HHCS, 3/8-16 X 3.5 GR5 PLTD
10061
2
LOCKNUT, HEX 3/8 - 16 GR B PLTD AZTEC
10108
1
IDLER ASSEMBLY
A13559
10
2
HHCS, 5/8-11 X 3.5 GR5 PLTD
10013
2
NUT, HEX JAM 5/8 - 11 GR2 PLTD
10503
2
LOCKNUT, HEX 5/8 - 11 GR B PLTD AZTEC
10107
1
CLUTCH ASSY, INTERPLANT
A8092
11
2
SPROCKET 15T #40 PLTD
A5105
12
1
SHAFT, HEX 7/8 X 48
D0914-48
13
1
HYDRAULIC MOTOR E-V
A12667
14
2
LOCKNUT, HEX 1/2 - 13 GR B PLTD AZTEC
10111
2
HHCS, 1/2-13 UNC-1.5 GR5 PLTD
10017
1
IDLER ASSEMBLY
A13560
15
1
WELD, MOTOR CARRIER BRKT
A13251
16
1
COUPLER HALF, 7/8 HEX 16T #40
D16489
17
4
HSSS, 1/4-20 x 0.25 CUP PNT GR8
11277
1
COUPLER HALF, 1" ID 16T #40 SPRKT
D16490
18
10
HHCS, 3/8-16 X 1-1/4 GR5 PLTD
10004
50
10
NUT, SERRATED LRG FLNG 3/8-16 PLTD
11091
51
8
BOLT, CARR 1/2-13 X 1-1/4 GR5 PLTD
10574
52
8
NUT, SERRATED FLANGE 1/2-13 PLTD
10071
53
QTY
DESCRIPTION
PART NUMBER
ITEM
IP1073
JASON LUCAS
10
13
15
9
14
18
1
2
3
1
3
2
8
11
12
9
7
6
16
17
5
4
5
4
4
4
4
(IP1073a)
ITEM
PART NO.
QTY.
DESCRIPTION
1
GD0914-138
GD0914-78
2
-
Hex Shaft, ⅞" x 138" (No Holes), 16 Row
Hex Shaft, ⅞" x 78" (No Holes), 12 Row
2
GA7123
G10688
2
4
U-Joint Assembly, 4½"
Square Head Set Screw, ⅜"-16 x ⅝"
3
GD0914-75
2
Hex Shaft, ⅞" x 75"
4
GA2180
G10004
G11091
GA11331
G10233
5
10
10
3
3
Hanger Bearing, ⅞" Hex Bore
Hex Head Cap Screw, ⅜"-16 x 1¼"
Serrated Flange Nut, ⅜"-16
Hex Lock Clamp Assembly
Machine Bushing, 1½" x 1/32", 10 Gauge
5
GA5114
G3310-103
GA5108
G3310-99
GA11331
G10233
2
-
-
-
2
6
Sprocket, 30 Tooth (Used W/EdgeVac)
Chain, No. 40 Roller Chain, 103 Pitches (Used W/EdgeVac)
Sprocket, 23 Tooth (Used W/Mechanical)
Chain, No. 40 Roller Chain, 99 Pitches (Used W/Mechanical)
Hex Lock Clamp Assembly
Machine Bushing, 1½" x 1/32", 10 Gauge
6
GD18747
G10037
G10071
G3400-01
G2100-03
G10312
G10620
1
4
4
2
1
3
3
Carrier Bracket
Hex Head Cap Screw, ½"-13 x 1¼"
Serrated Flange Nut, ½"-13
Flangette
Bearing, ⅞" Hex Bore, Spherical
Carriage Bolt, 5/16"-18 x ¾"
Serrated Flange Nut, 5/16"-18
7
GA12661
1
Hex Adapter Encoder
8
GA12565
GD19077
1
1
Encoder Module
Anti-Rotation Bracket
TM
M0217-02
Model 3660
P127
Rev. 7/11
