ITEM
PART NO.
QTY.
DESCRIPTION
1
GD14626
34
Elbow, 90°, 2"
2
GD14627
28
Coupler, 2"
3
GD15792-03
4
Hose, 2" x 28"
4
GD15792-04
1
Hose, 2" x 36", (Push And Pull Row Units)
5
GD15792-05
2
Hose, 2" x 38" (Push Row Unit)
6
GD15792-06
1
Hose, 2" x 42"
7
GD15792-19
12
Hose, 2" x 26"
8
GD15792-20
10
Hose, 2" x 32"
9
GD15792-23
2
Hose, 2" x 34" (Pull Row Unit)
10
GD17052
-
Vacuum Plug
11
GD15792-18
-
Vacuum Hose, 2" x 50'
(IP1109)
EdgeVac Interplant Hose Routings
L.H. Rear of Machine
R.H. Rear of Machine
Row Units
Push Units/Interplant
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
1
Even
Row
2
3
4
5
6
7
8
9
10
11
12
13
14
15
L.H. Wing
Rows 1-5
Rows 1-7
Rows 1-5
Rows 1-6
Rows 7-10
Rows 8-9
R.H. Wing
Rows 7-16
Rows 12-16
Rows 10-15
Rows 7-16
10
1
8
2
2
9
1
1
7
6
4
3
1
2
9
8
7
2
5
1

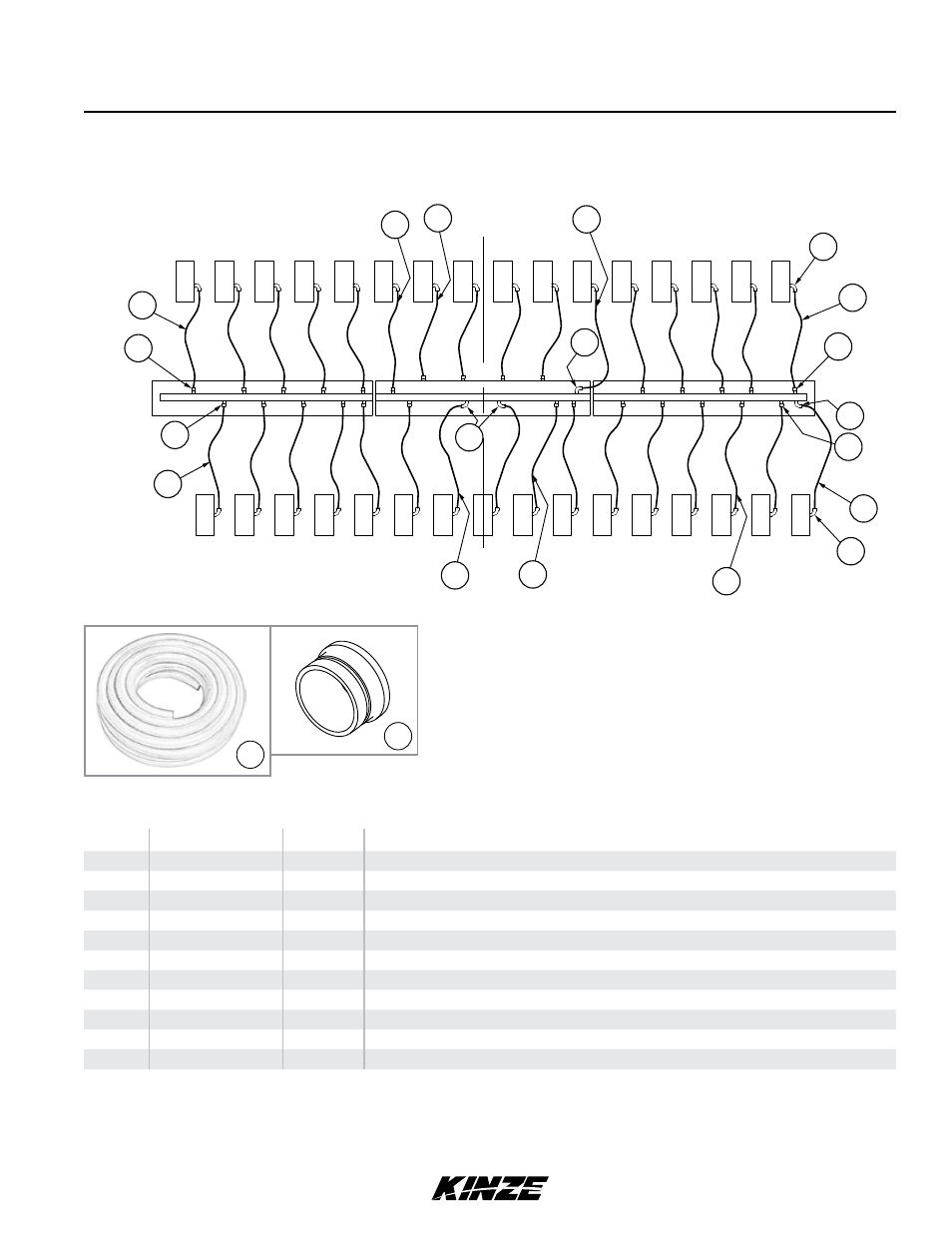

EdgeVac Hoses
16 Row Shown, 12 Row does not used outside two rows.
10
Model 3660
M0217-02
Rev. 6/14
P72
