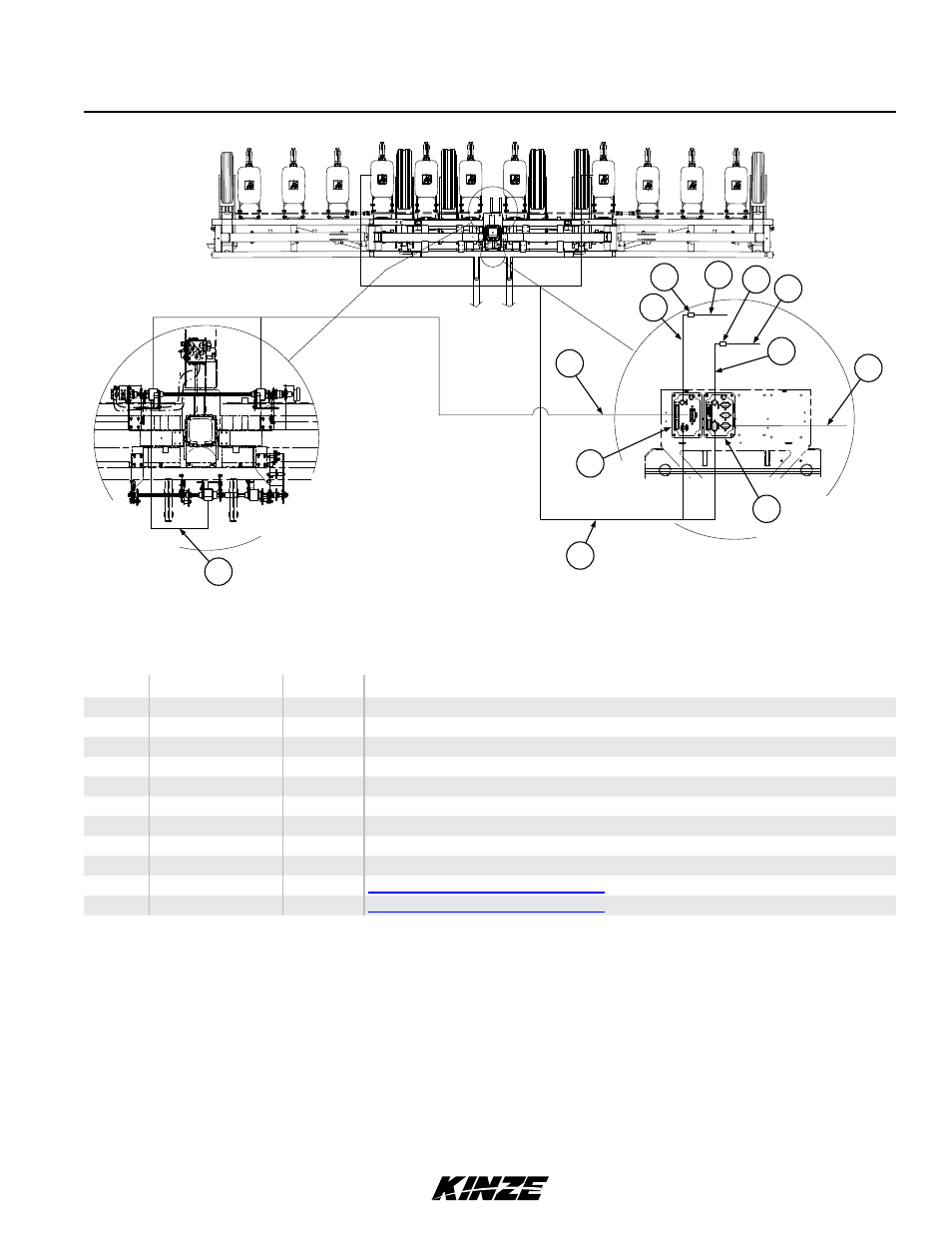

Two-Section Wiring Schematic
ITEM PART NO. DESCRIPTION QTY
1 A12564 MODULE, SEED RATE CONTROL 1
2 A12537 MODULE, CLUTCH CONTROL 1
3 D18176 CONNECTOR, Y-SPLICE 2
4 A13048 CABLE, SEED RATE 1
5 A12567 CABLE, 4" CAN EXTENSION (HYD DRIVE) 1
6 A12566 CABLE, 6" CAN STUB (HYD DRIVE) 1
7 A13047 CABLE, IMP SWITCH EXT. 1
8 A12558 CABLE, 8" CAN STUB 1
9 A12559 CABLE, 5" CAN EXTENSION 1
10 A14186 CABLE 2 SECTION TS 1
11 A14212 CABLE INTERPLANT TS 1
4
5
8
7
1
10
11
6
3
9 3
2
ITEM PART NO. QTY. DESCRIPTION
1 GA12564 1 Seed Rate Control Module
2 GA12537 1 Clutch Control Module
3 GD18176 2 Y-Splice Connector
4 GA13048 1 Seed Rate Cable
5 GA12567 1 Can Extension Cable, 4" (Hydraulic Drive)
6 GA12566 1 Can Stub Cable, 6" (Hydraulic Drive)
7 GA16827 1 Implement Switch Extension Cable
8 GA12558 1 Can Stub Cable, 8"
9 GA12559 1 5" Can Extension Cable, 5"
10 --- - See "Point Row Clutch" on page P131
11 --- - See "Point Row Clutch" on page P131
(IP1141)
Model 3660 M0217-02
Rev. 8/12 P140
