Page 178

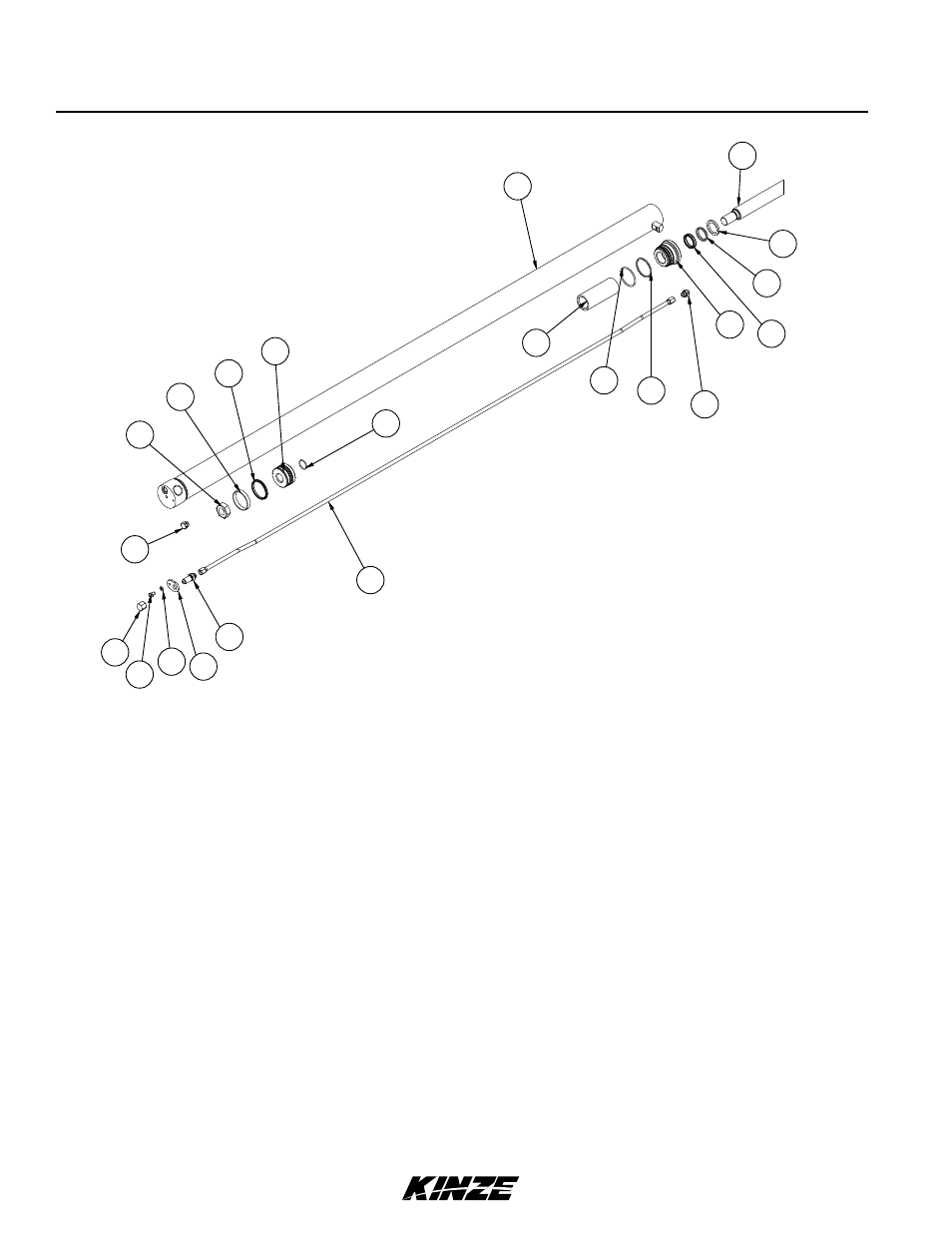

Tongue Cylinder
1
STEEL HYDRAULIC LINE
A8979
22
1
BULKHEAD FITTING, 3/4-16
2700-08
21
1
BRACKET, BULKHEAD FITTING
D12597
20
1
WASHER, 3/8 SPRING LOCK PLTD
10229
19
1
HHCS, 3/8-16 X 0.625 GR5 PLTD
10328
18
1
CAP NUT, 3/4-16 JIC
304-C-8
17
1
O-RING PLUG, 3/4-16 HEX HEAD
6408-08
16
1
LOCKNUT, HEX THIN, 1-1/4-12 GR C PLN
10972
15
1
WEAR RING
D12047
14
1
T-SEAL, 3" HNBR
D12278
13
1
PISTON, CYLINDER
D11970
12
1
O-RING #218, 75D VITON
D12204
11
1
SPACER
D7147
10
1
O-RING #334
D12202
9
1
BACK-UP RING #334
D12203
8
1
ADAPTER,3/4-16 JIC,7/16-20 O-RING
6400-08-04
7
1
GUIDE, HEAD GLAND
D11984
6
1
U-CUP LIP SEAL, 1-3/4 SPRING LOADED
D12253
5
1
ROD WIPER, 1-3/4" POLYMYTE
D12200
4
1
RING, LATHE CUT 1-3/4"
D12104
3
1
ROD WELD
A8859
2
1
WELD, CYLINDER BODY
A8861
1
QTY
DESCRIPTION
PART NUMBER
ITEM
TODD GRAY
IP1032
17
18
19 20
21
22
7
10
9
8
6
5
4
3
2
1
11
12
13
14
15
16
(IP1032)
TM
M0217-02
Model 3660
P175
Rev. 7/11
