Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 144)

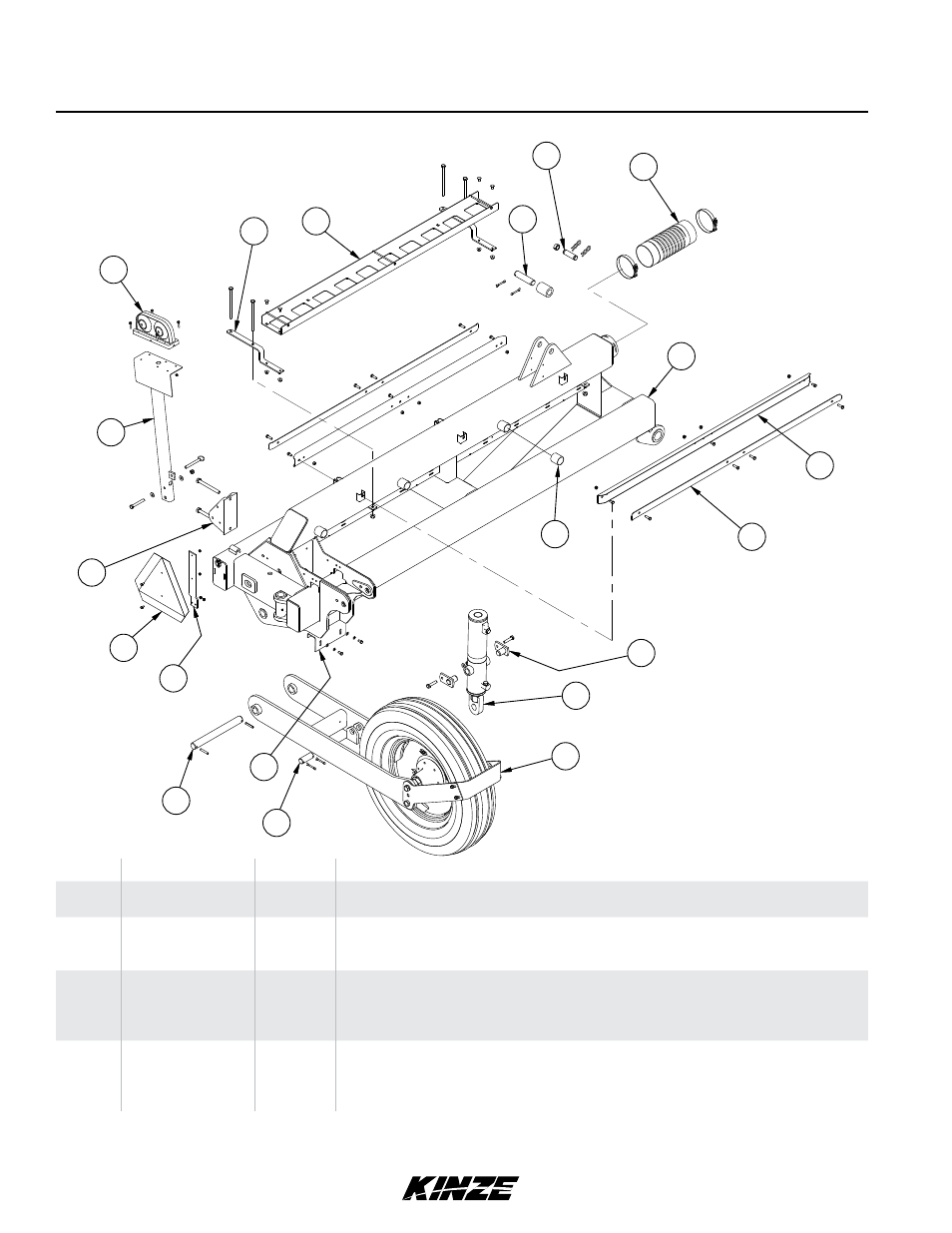

Wing Frame, 12 Row
(IP1121)
L.H. Wing Frame Shown
7
8
9
5
4
10
3 20
1
19
18
15
14
13
6
11
17
16
12
2
ITEM PART NO. QTY. DESCRIPTION
1 GA13971
GA13972 1
-
L.H. Wing, 12 Row (Shown)
R.H. Wing, 12 Row
2 GD18433
G10108
G10002 2
6
6 Hose Channel, 63½"
Lock Nut, ⅜"-16
Hex Head Cap Screw, ⅜"-16 x ¾"
3 GD18752
G10004
G11091
G10108 2
8
8
8 Plate Clamp, 63"
Hex Head Cap Screw, ⅜"-16 x 1¼"
Serrated Flange Nut, ⅜"-16
Lock Nut, ⅜"-16
4 GA6761
G10581
G11389
G10111 2
2
2
2 Pin, 1¾"
Hex Head Cap Screw, ½"-13 x 2¼"
Flat Washer, ½" SAE
Lock Nut, ½"-13
TM
M0217-02 Model 3660
P141 Rev. 6/13
