Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 193)

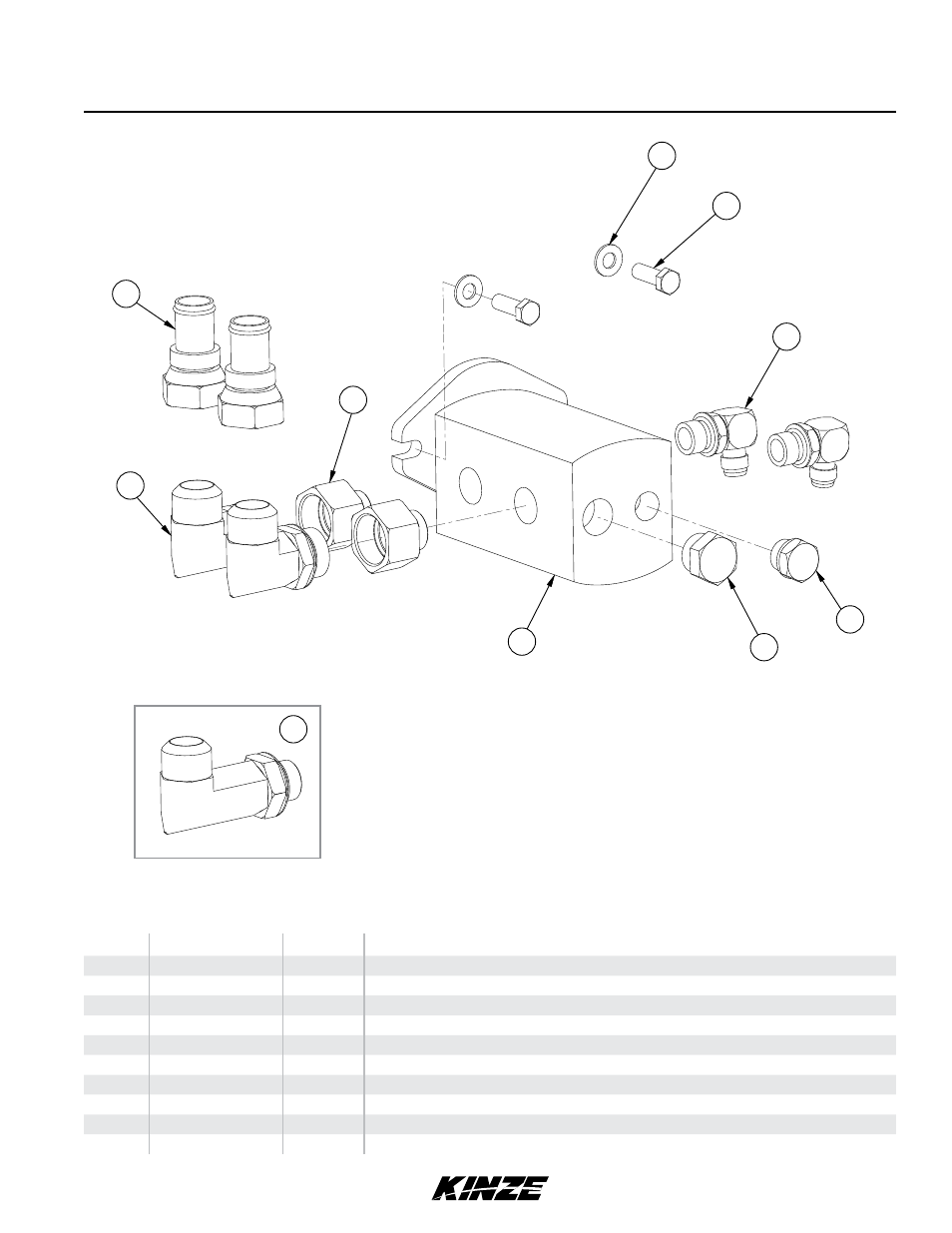

Hydraulic Pump
(IP1049a)
ITEM PART NO. QTY. DESCRIPTION
1 GA13490 1 Hydraulic Pump Assembly
2 G10017 2 Hex Head Cap Screw, ½"-13 x 1½"
3 G11389 2 Flat Washer, ½" SAE
4 G6408-12 1 Plug W/O-Ring, 11/16"-12 O-Ring
5 6408-16 1 Plug W/O-Ring, 15/16"-12
6 G6801-10-12 2 Elbow W/O-Ring, 90°, ⅞"-14 Male JIC To 11/16"-12 O-Ring
7 G6410-16-20 2 Adapter W/O-Ring, 15/16"-12 x 1⅝"
8 G6801-20 2 Elbow W/O-Ring, 90°, 1⅝"-12 Male JIC To O-Ring
9 GD19493 2 Swivel Hose Barb, 1⅝"-12 JIC x 1¼"
10 G6801-L-20-16 2 Long Elbow W/O-Ring, 90°, 1⅝"-12 Male JIC To O-Ring (As Required)
2
3
6
1
4
5
9
8
7
10
