Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 188)

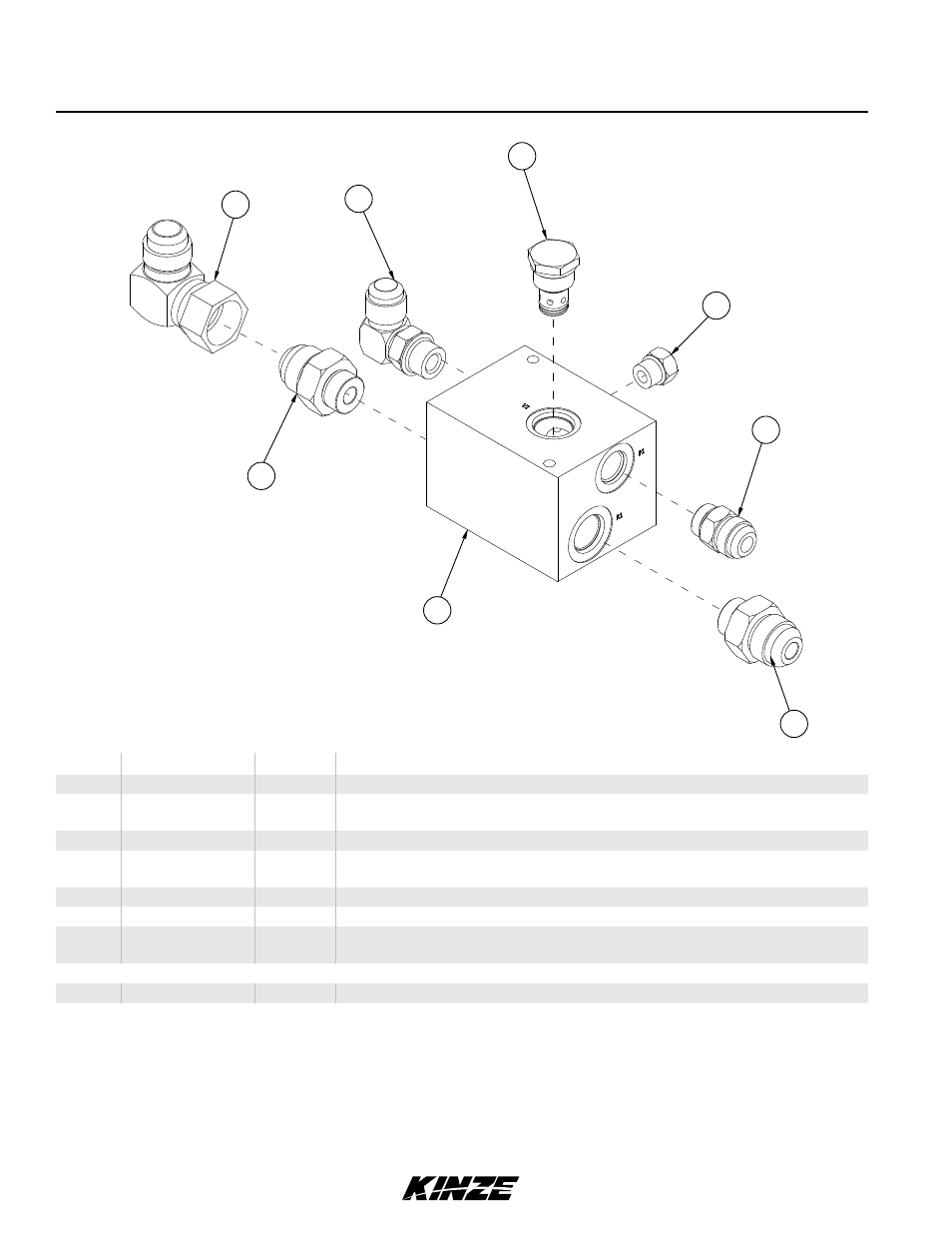

ASD Valve Block
1 O-RING PLUG, 9/16-18 HEX HEAD 6408-06 7
1 ELBOW, 1-1/16-12 SWIVEL 90 DEG 6500-12 6
2 ADAPTER, 1-1/16-12 JIC, 7/8-14 O-RING 6400-12-10 5
1 ADJ 90 EL, 7/8-14 X 3/4-16 O-RING 6801-10-08 4
1 CARTRIDGE CHECK VALVE A4293 3
1 ADAPTER, 7/8-14 JIC, 3/4-16 O-RING 6400-10-08 2
1 ASD FAN BLOCK D19123 1
QTY DESCRIPTION PART NUMBER ITEM
3
4
6
5
1
2
5
7
(IP1094)
ITEM PART NO. QTY. DESCRIPTION
1 GD19123 1 Block
2 G6400-10-08
GR1037 1
-
Connector W/O-Ring, ⅞"-14 Male JIC To ¾"-16 O-Ring
O-Ring
3 GA4293 1 Check Valve
4 G6801-10-08
GR1037 1
-
Elbow W/O-Ring, 90°, ⅞"-14 Male JIC To ¾"-16 O-Ring
O-Ring
5 G6400-12-10 2 Connector W/O-Ring, 11/16"-12 Male JIC To ⅞"-14 O-RIng
6 G6500-12 1 Swivel Elbow, 90°, 11/16"-12 Male JIC To Female
7 G6408-06
GR1045 1
-
Plug W/O-Ring, 9/16"-18 O-Ring
O-Ring
A GR2041 - Seal Kit (Check Valve)
