Page 176

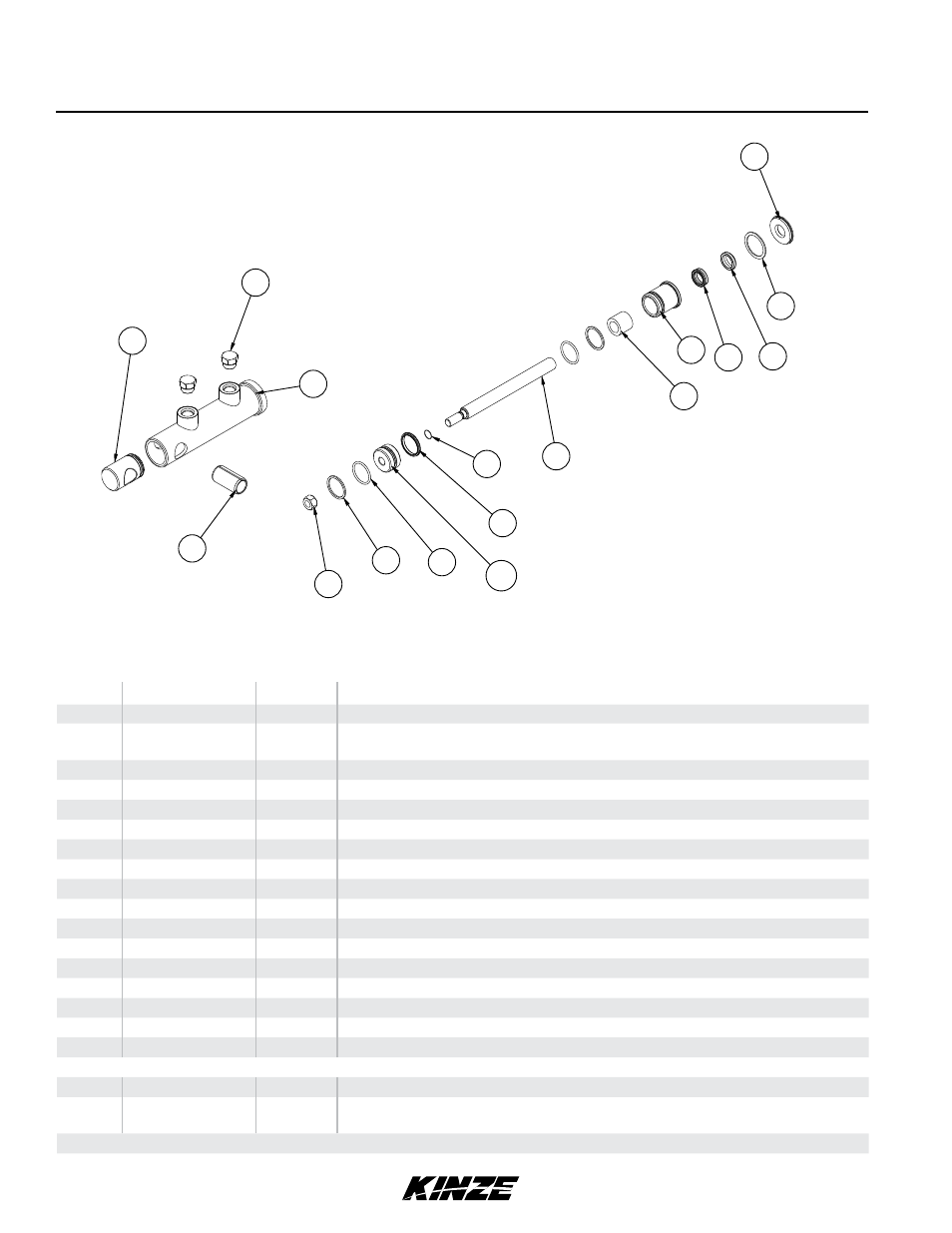

Transport Catch Cylinder
1
WATER CAP SEAL
D12139
17
1
RETAINER RING
10770
16
1
ROD WIPER
D12258
15
1
SPRING LOADED U-CUP LIP SEAL
D12259
14
1
GUIDE, HEAD GLAND
D13170
13
1
BUSHING, BRONZE
D13399
12
1
ROD, CYLINDER
D13425
11
1
O-RING #014
D12261
10
1
T-SEAL, 1-1/2" HNBR
D12276
9
1
PISTON, CYLINDER 1-1/2 DIA
D13172
8
2
O-RING #218, 75D VITON
D12204
7
2
BACKUP RING #218
D12260
6
1
LOCKNUT, 1/2-20
11016
5
1
BUSHING, STEEL TENSION
D13400
4
1
END-CAP, CYLINDER
D13173
3
2
O-RING PLUG, 3/4-16 HEX HEAD
6408-08
2
1
BARREL, CYLINDER
D13426
1
QTY
DESCRIPTION
PART NUMBER
ITEM
TODD GRAY
IP1028
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2
3
1
(IP1028)
ITEM
PART NO.
QTY.
DESCRIPTION
1
D13426
1
Barrel
(Non-Stock Item)
2
G6408-08
GR1037
2
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
3
GD13173
1
End Cap
4
GD13400
1
Tension Bushing, 1" x 2" Long
5
G11016
1
Lock Nut, ½"-20
6
*D12260
2
Back-Up Ring, No. 218
7
*D12204
2
O-Ring, No. 218
8
GD13172
1
Piston
9
*D12276
1
T-Seal, 1½"
10
*D12261
1
O-Ring, No. 014
11
GD13425
1
Rod
12
*D13399
1
Bronze Bushing
13
GD13170
1
Gland
14
*D12259
1
U-Cup
15
*D12258
1
Wiper
16
G10770
1
Internal Retaining Ring, 111/16"
17
GD12139
1
Water Cap Seal
A
GA9559
-
Cylinder Complete, 1½" x 2½" (Part Number Stamped On Barrel)
B
GR1598
-
Seal Kit, Includes: (3) O-Rings, (2) BU Rings, (1) Wiper, (1) U-Cup, (1) T-Seal, (1)
Bronze Bushing, (1) Seal
*Part of seal kit, item can not be purchased individually.
TM
M0217-02
Model 3660
P173
Rev. 7/11
