Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 149)

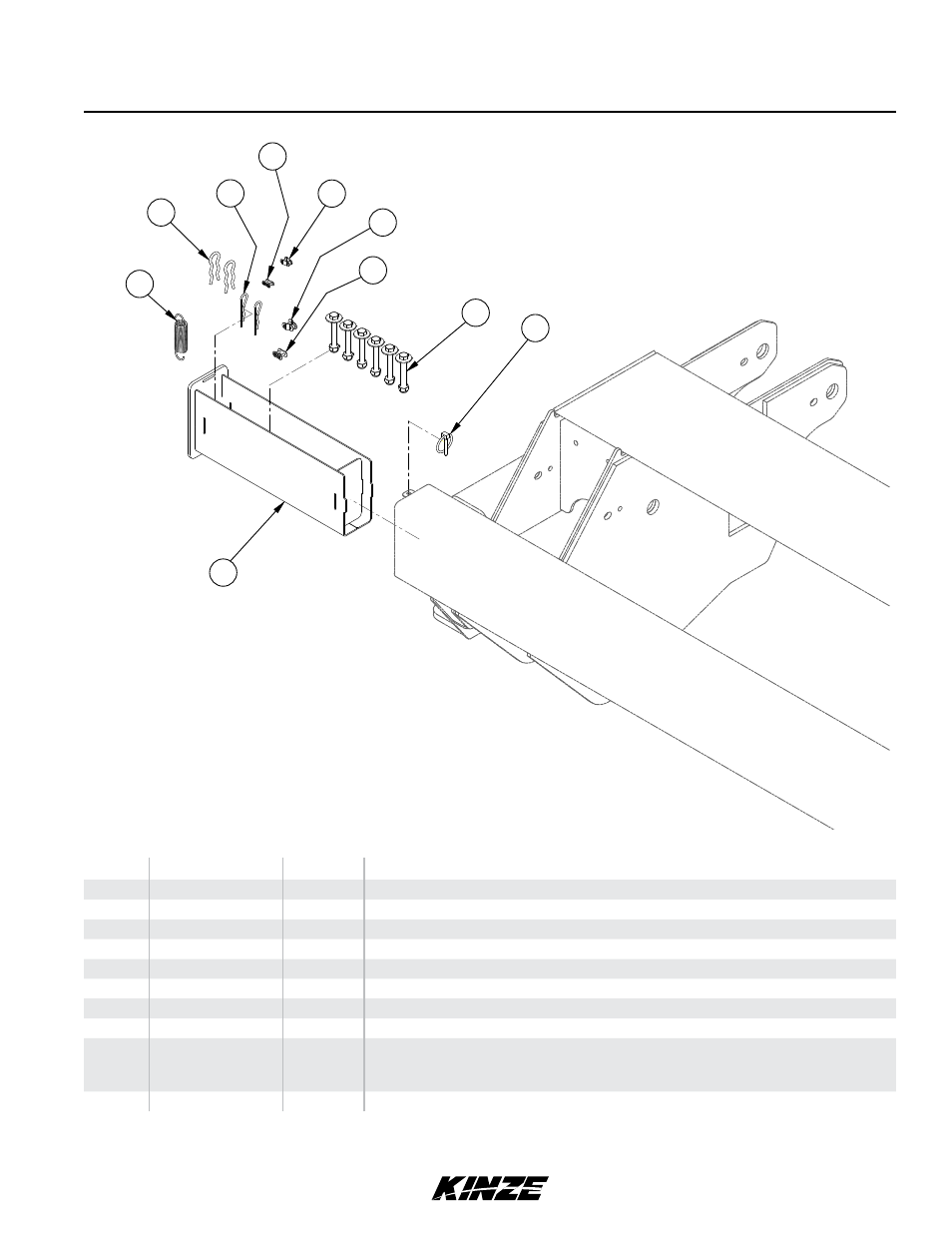

Wing Frame Toolbox
ITEM PART NO. QTY. DESCRIPTION
1 GA13945 1 Toolbox
2 GD5857 1 Spring
3 GR0193 2 Hair Pin Clip
4 G10592 2 Hair Pin Clip, No. 11
5 GR0196 1 Connector Link, No. 41
6 GR0201 1 Offset Link, No. 41
7 GR0911 1 Offset Link, No. 40
8 GR0912 1 Connector Link, No. 40
9 G10067
G11388
G10113 6
6
6 Hex Head Cap Screw, 7/16"-14 x 3"
Flat Washer, 7/16" SAE
Lock Nut, 7/16"-14
10 GD2558 1 Lynch Pin, ¼"
10
1
6
3
2
4
5
7
8
9
(IP1117)
Model 3660 M0217-02
