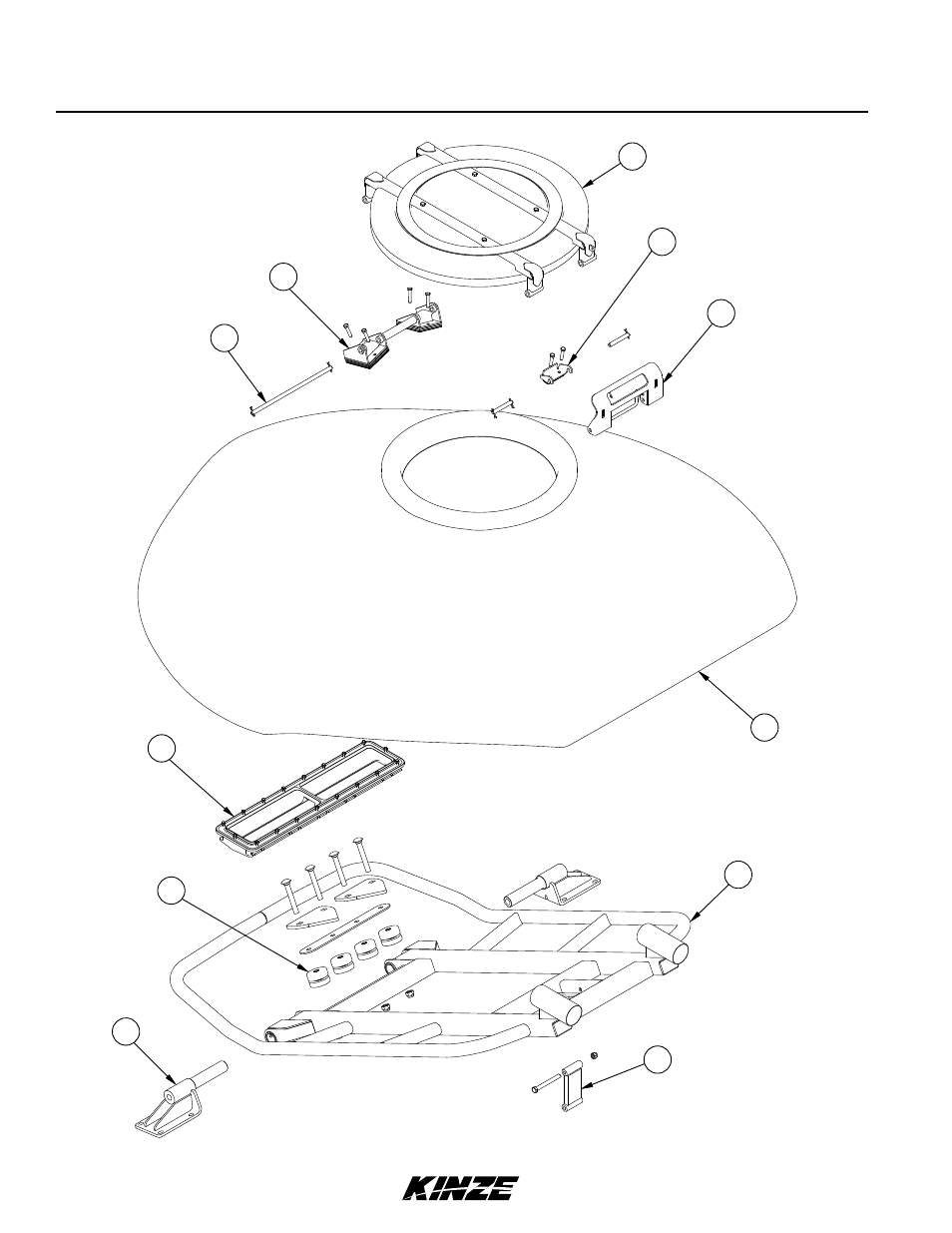

ASD Tank Assembly (Prior to 2010 Production)
(IP1087)


- 3660 ASD TANK ASSY A13701 -
1 LID HINGE PIN D19674 1
8 PIN, COTTER_1/8 X 1 PLTD 10451
1 ASD TANK HINGE WELD A13780 2
6 SHIM, 7 GA D19681-01
6 SHIM, 10 GA D19681-02
6 SHIM, 12 GA D19681-03
6 LOCKNUT, HEX 3/8-16 GR B PLTD AZTEC 10108
6 HHCS, 3/8-16 X 1-3/4 GR5 PLTD 10047
1 LID ASSY A13731 3
1 LATCH CATCH D19677 4
3 SHIM, 7GA D19676-01
3 SHIM, 10GA D19676-02
3 SHIM, 12GA D19676-03
2 LATCH HANDLE PIN D19675
1 LATCH HANDLE WELD A13792 5
1 LATCH HOOK D19542
1 ASD BULK SEED TANK D19419 6
1 TANK MOUNT WELD A13729 7
4 ISOLATOR, UNIVERSAL MOUNT A13788 8
2 ISOLATOR BACKER STRAP D19689
2 ASD TANK BACKER PLATE D19668
4 BOLT, CARR 5/8-11 X 4-1/2 GR5 PLTD 10683
4 LOCKNUT, HEX 5/8-11 GR B PLTD AZTEC 10107
1 ASD ENTRAINMENT MOUNTING PLATE D19666 9
18 WFLS, 1/4-20 X 3/4 GR5 PLTD SERRATED 11166
1 ASD TANK MOUNT GASKET D19620
1 RIBBON SEALER 5' D19690-01
1 RIBBON SEALER 6' D19690-02
1 TANK MOUNT LINK A13915 10
1 LOCKNUT, HEX 1/2-13 GR B PLTD AZTEC 10111
1 HHCS, 1/2-13 X 4-1/2 GR5 PLTD 10045
2 FRONT TANK MOUNT WELD A13797 11
QTY DESCRIPTION PART NUMBER ITEM
IP1087
JASON LUCAS
6
3
1
2
4
5
11
7
10
8
9
TM
M0217-02 Model 3660
P99 Rev. 7/11
