Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 191)

(IP1075)
ITEM PART NO. QTY. DESCRIPTION
1 GA13574 1 Clutch Valve Bracket
G10621 4 Serrated Flange Nut, ¼"-20
G10022 2 Hex Head Cap Screw, ¼"-20 x ½"
2 GD19190 1 Clutch Valve Cover
G10960 2 Flanged Whiz Lock Screw, ¼"-20 x ⅝", No Serration
3 G11276 2 Hex Socket Head Cap Screw, ¼"-20 X 1¼"
4 GR1914 1 Solenoid Valve End Plate Kit
5 GD15687 1 6 Pin Connector
6 GR1913 4 Solenoid Clutch Valve
7 GD19080 2 Elbow, ¼" x ⅛" NPT Swivel
8 GD19298 2 Elbow, ¼" Male Swivel Extended
9 GD17156 2 Plug, ¼" NPT
10 GD17148 2 Male Connector, ¼"
A GA13529 1 Clutch Valve Assembly (Items 4-8)

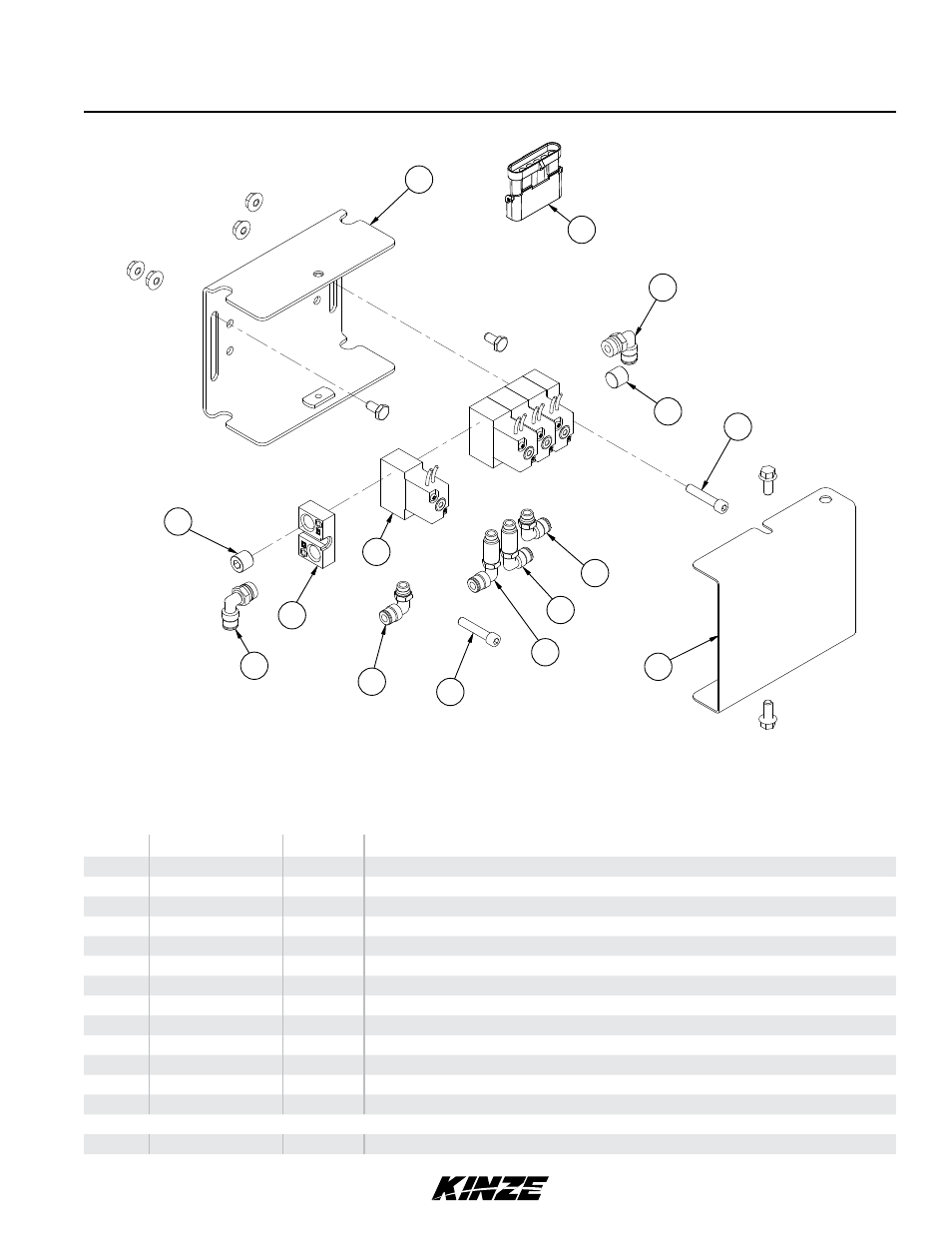

Clutch Valve Assembly
2
3
1
7
8
10
9
4
6
9
10
7
8
3
5
Model 3660 M0217-02
