Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 180)

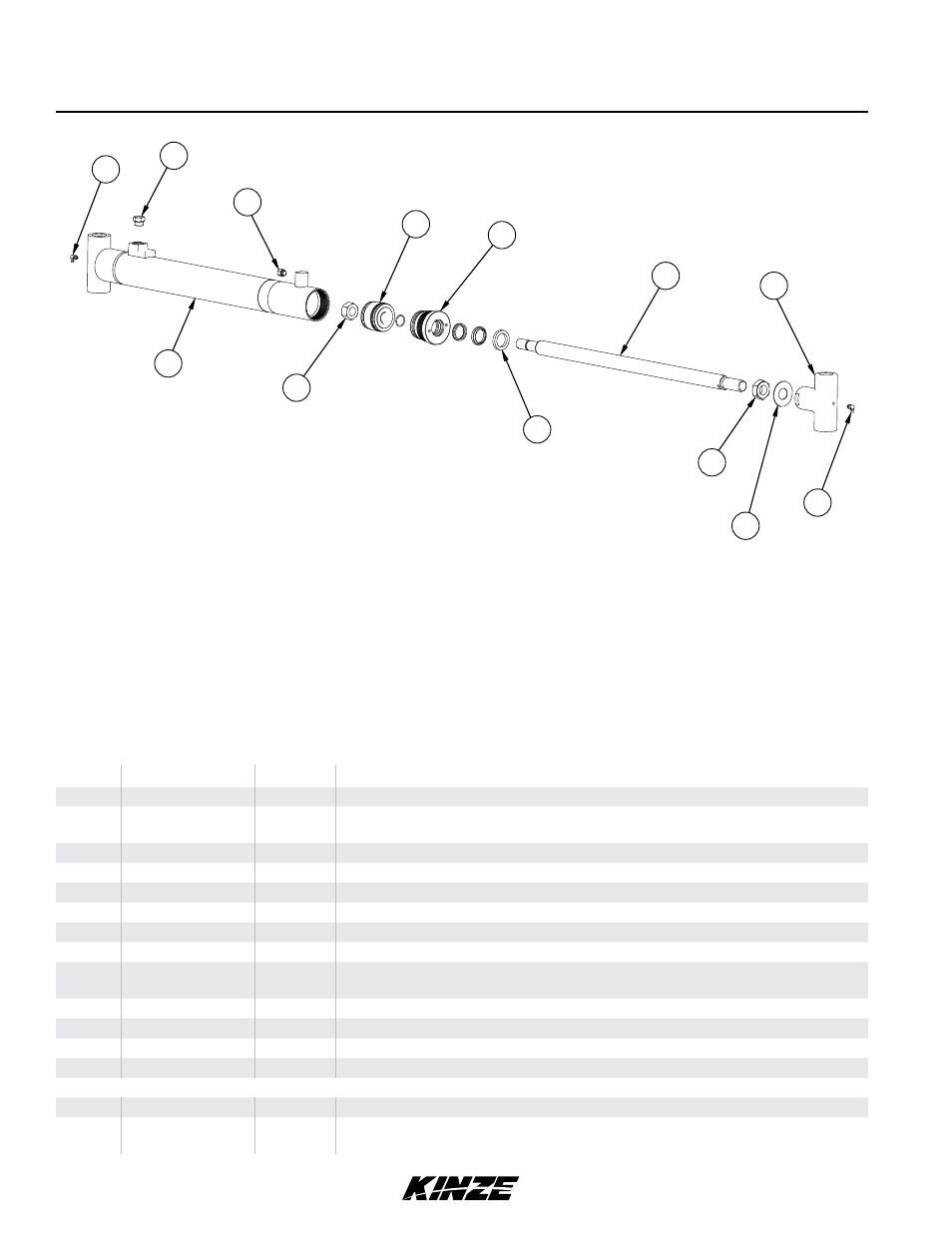

Row Marker Cylinder
ITEM PART NO. QTY. DESCRIPTION
1 A14631 1 Barrel (Non-Stock Item)
2 G6408-08
GR1037 1 Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
3 GD14529 1 Rod
4 GD14308 1 Threaded Sleeve End
5 GD27234 1 Nylon Lock Nut, ⅞"-14, Grade 8
6 --- - ---
7 GD18526 1 Hydraulic Piston
8 GD10207 1 Gland
9 G6408-04
GR1465 1 Plug W/O-Ring, 7∕16"-20 O-Ring
O-Ring
10 GD12102 1 Ring, 1¼"
11 G10779 2 Grease Fitting, 90°, ¼"-28
12 G10324 1 Hex Jam Nut, 1"-14, Grade 2
13 GD23002 1 Locking Devise
A GA14632 - Cylinder Complete, 2½" x 20" (Part Number Stamped On Barrel)
B GR1925 1 Seal Kit, Includes: (2) O-Rings, (1) Back-Up Ring, (1) U-Cup, (1) Wiper, (1) Piston
Ring, (1) T-Seal
(IP1270)
2
9
1
5
7
8
10
3
12
4
11
11
13
TM
M0217-02 Model 3660
P177 Rev. 6/14
