Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 128)

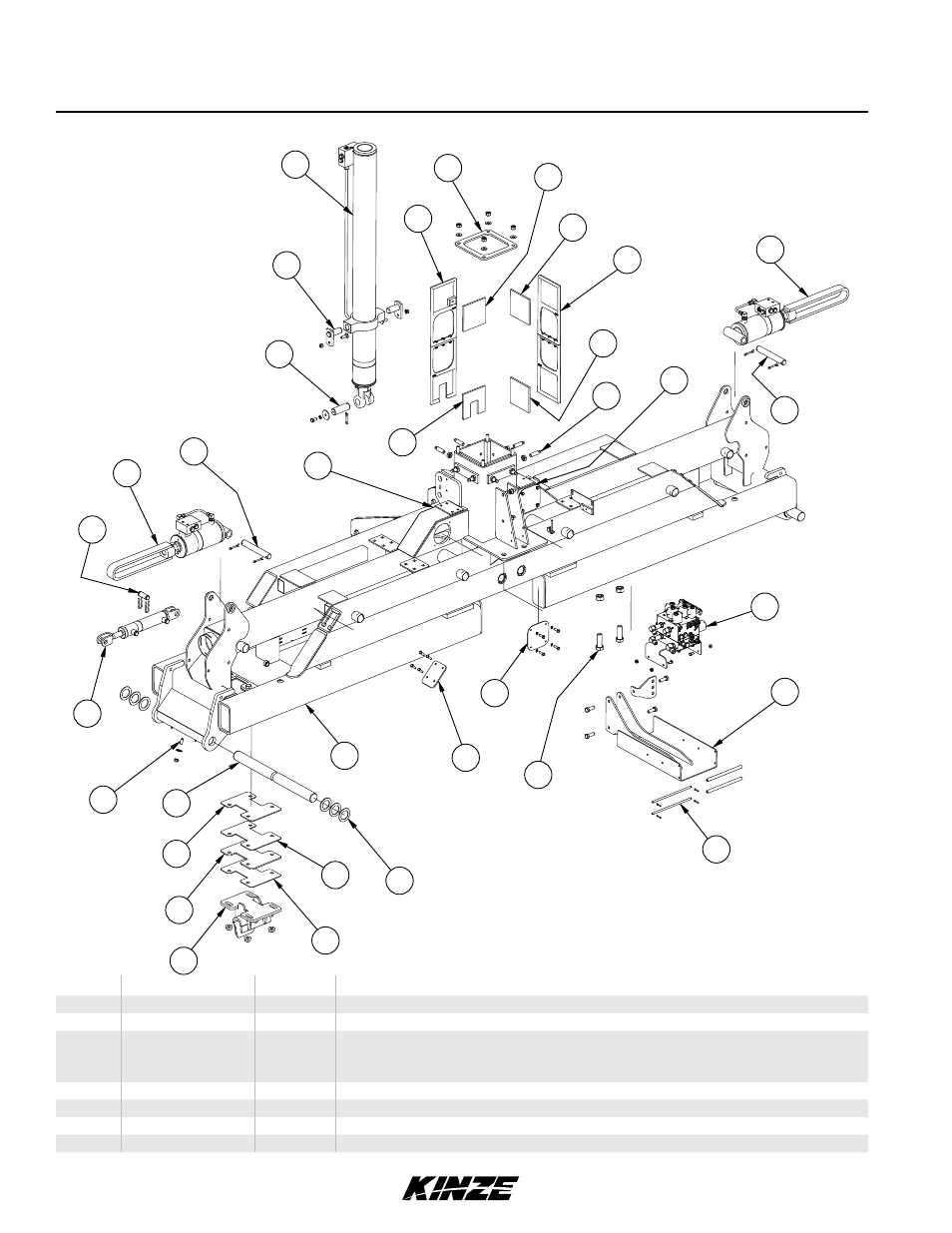

Center Frame
(IP1016)
3
6
4
5
7
8
31
9
24
12
15
14
13
12
11
10
19
16
20
27
26
1 30
2
29
28
25
18
18
18
21
23
17
22
ITEM PART NO. QTY. DESCRIPTION
1 GA12833 1 Center Frame
2 GD10531 2 Hinge Pin, 2⅛" x 25¾"
3 GA12889
G11314
G10028 2
8
8 Field Stabilizer
Serrated Flange Nut, ¾"-10
Hex Head Cap Screw, ¾"-10 x 3"
4 GD19842 4 ¼ " Field Stabilizer Shim (As Required)
5 GD18841 4 Shim, 10 Gauge (.1345") (As Required)
6 GD18842 4 Shim, 12 Gauge (.1046") (As Required)
7 GD18840 4 Shim, 7 Gauge (.1793") (As Required)
TM
M0217-02 Model 3660
P125 Rev. 7/11
