Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 120)

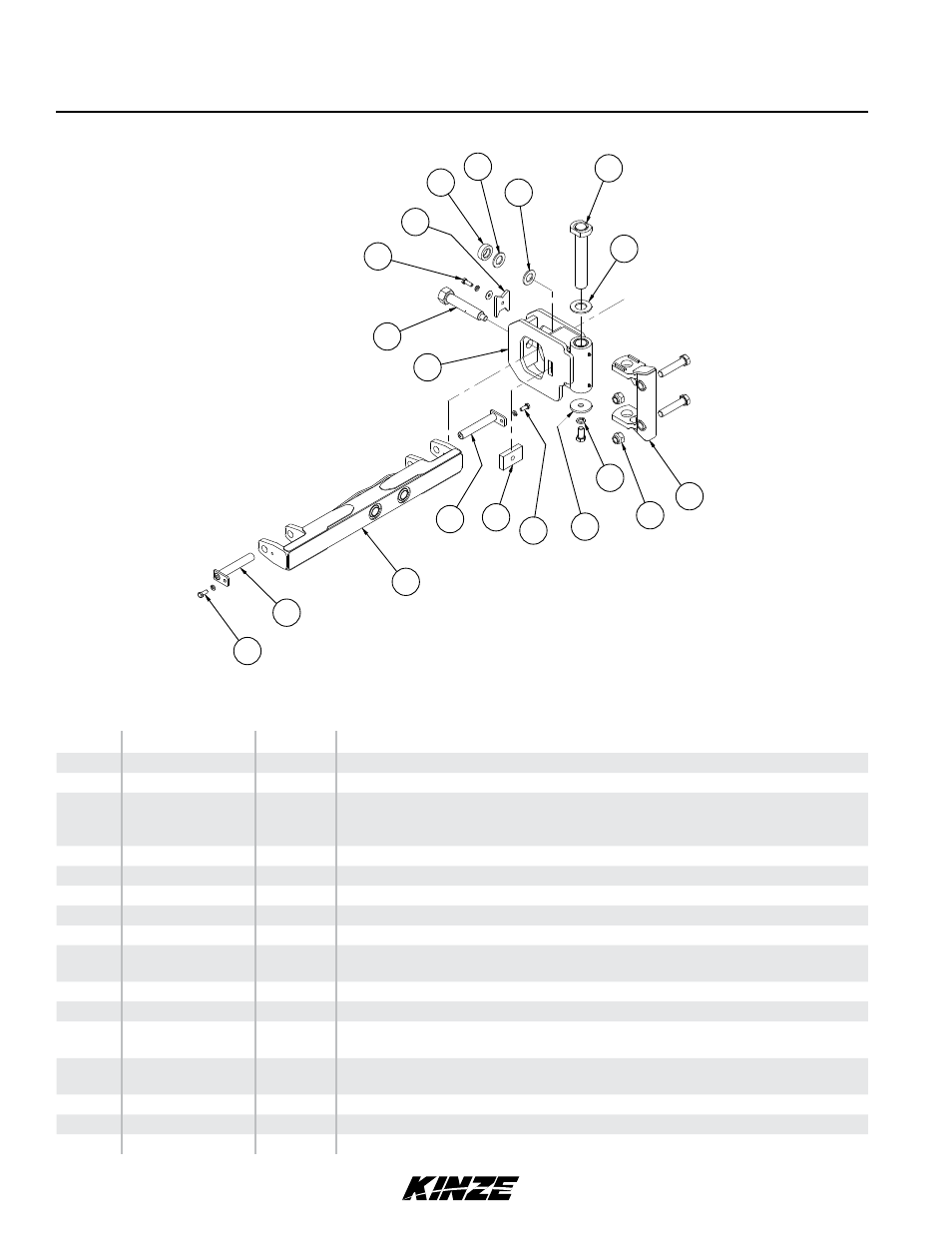

2-Point Hitch Option
(IP1012)


1 HITCH PIVOT SUBASSY A13665 1
1 PIN WELD, PIVOT A13673 2
1 HHCS, 5/8-11 X 1.75 GR5 PLTD 10005 3
1 WASHER, FLAT 5/8 USS PLTD 10217
3 WASHER, 5/8 SPRING LOCK PLTD 10230
1 LOCK-NUT, HITCH PIVOT D15100 4
1 SLEEVE, 3 OD X 1.781 ID D16226 5
2 WASHER, 3 OD X 1.781 ID D16303 6
1 WELD, PIVOT PIN A12163 7
1 WASHER, 4 OD X 2.265 ID X 1/4 D15725 8
2 LOCKNUT, HEX 1 1/4 - 7 GR B PLTD AZTEC 10157 9
2 HHCS, 1 1/4-7 X 6 GR5 PLTD 10169
1 PIVOT MOUNT WELD A12165 10
1 WASHER, 4.00 OD X 3/8 D17245 11
1 WASHER, 1 SPRING LOCK PLTD 10118 12
1 HHCS, 1-8 X 2 GR5 PLTD 11223
2 HHCS, 5/8-11 X 1.5 GR5 PLTD 10007 13
1 BAR, TAPPED D19468 14
2 WELD, HAMMERSTRAP A11079 15
1 WELD, 3 POINT BAR A12164 16
QTY DESCRIPTION PART NUMBER ITEM
IP1012
Jason Lucas
16
14
2
6
5
7
8
15
13
10
9
12
11
1
4
3
15
13
6
ITEM PART NO. QTY. DESCRIPTION
1 GA13665 1 Hitch Pivot
2 GA13673 1 Pivot Pin
3 G10005
G11391
G10230 1
1
1 Hex Head Cap Screw, ⅞"-11 x 1¾"
Flat Washer, ⅝" SAE
Lock Washer, ⅝"
4 GD15100 1 Pivot Lock
5 GD16226 1 Sleeve, 3" O.D. x 125/32" x 29/32" Thick
6 GD16303 2 Washer, 3" O.D. x 125/32" x ¼" Thick
7 GA12163 1 Pin, 13⅜"
8 GD15725 1 Washer, 4" O.D. x 2¼" I.D. x ¼"
9 G10169
G10157 2
2 Hex Head Cap Screw, 1¼"-7 x 6"
Lock Nut, 1¼"-7
10 GA13783 1 Pivot Mount
11 GD17245 1 Washer, 4" O.D. x 11/32" I.D. X ⅜"
12 G11223
G10118 1
1 Hex Head Cap Screw, 1"-8 x 2"
Lock Washer, 1"
13 G10007
G10230 2
2 Hex Head Cap Screw, ⅝"-11 x 1½"
Lock Washer, ⅝"
14 GD19468 1 Tapped Bar
15 GA11079 2 Hammer Strap, Category 3 And 3N
16 GA12164 1 Hitch Bar
TM
M0217-02 Model 3660
P117 Rev. 7/11
