Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 182)

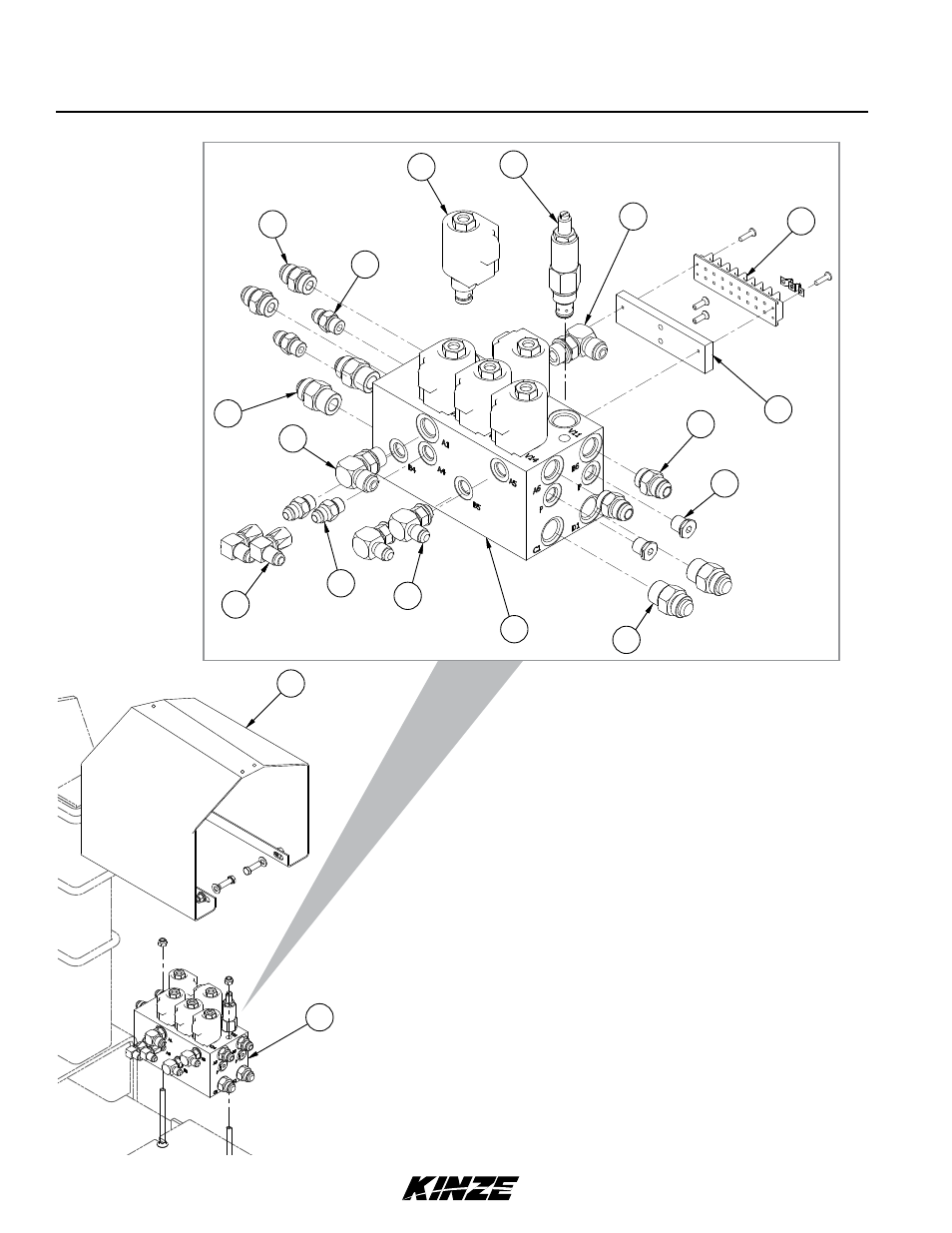

Valve Block - Located on Hitch
(IP1110/IP1111)


1 MANIFOLD BLOCK D9905 1
2 ADJ 90 EL, 9/16-18 X 9/16-18 O-RING 6801-06 2
4 ADAPTER, 9/16-18 JIC, 9/16-18 O-RNG 6400-06 3
2 ELBOW, 9/16-18 SWIVEL 90 DEG 6500-06 4
2 ADJ 90 EL, 3/4-16 X 3/4-16 O-RING 6801-08 5
4 ADAPTER, 7/8-14 JIC, 7/8-14 O-RING 6400-10 6
4 ADAPTER, 3/4-16 JIC,3/4-16 O-RING 6400-08 7
5 COIL, 12VDC W/VOLTAGE SUPPRESSOR R1445 8
5 CARTRIDGE R0763
5 NUT, HEX JAM 1/2-20 PLTD R0761
1 PRESSURE RELIEF VALVE, 1000 PSI A3407 9
1 BLOCK, TAP D12818 10
2 PHIL FLAT HD MS #10-24 X 5/8 STN ST 11068
1 TERMINAL STRIP, (8) #6 DOUBLE ROW A9098 11
2 JUMPER, #6 TERMINAL STRIP 7/16" D13310
2 PHIL PAN HEAD MS #8-32 X 5/8 STN STL 11065
2 O-RING PLUG, 9/16-18 HEX SOC HEAD 6408-H06-0 12
QTY DESCRIPTION PART NUMBER ITEM
IP1111
JASON LUCAS
8 9
5
7
3
6
5
7
12
6
2
3
4
10
11
1
13
14
TM
M0217-02 Model 3660
P179 Rev. 7/11
