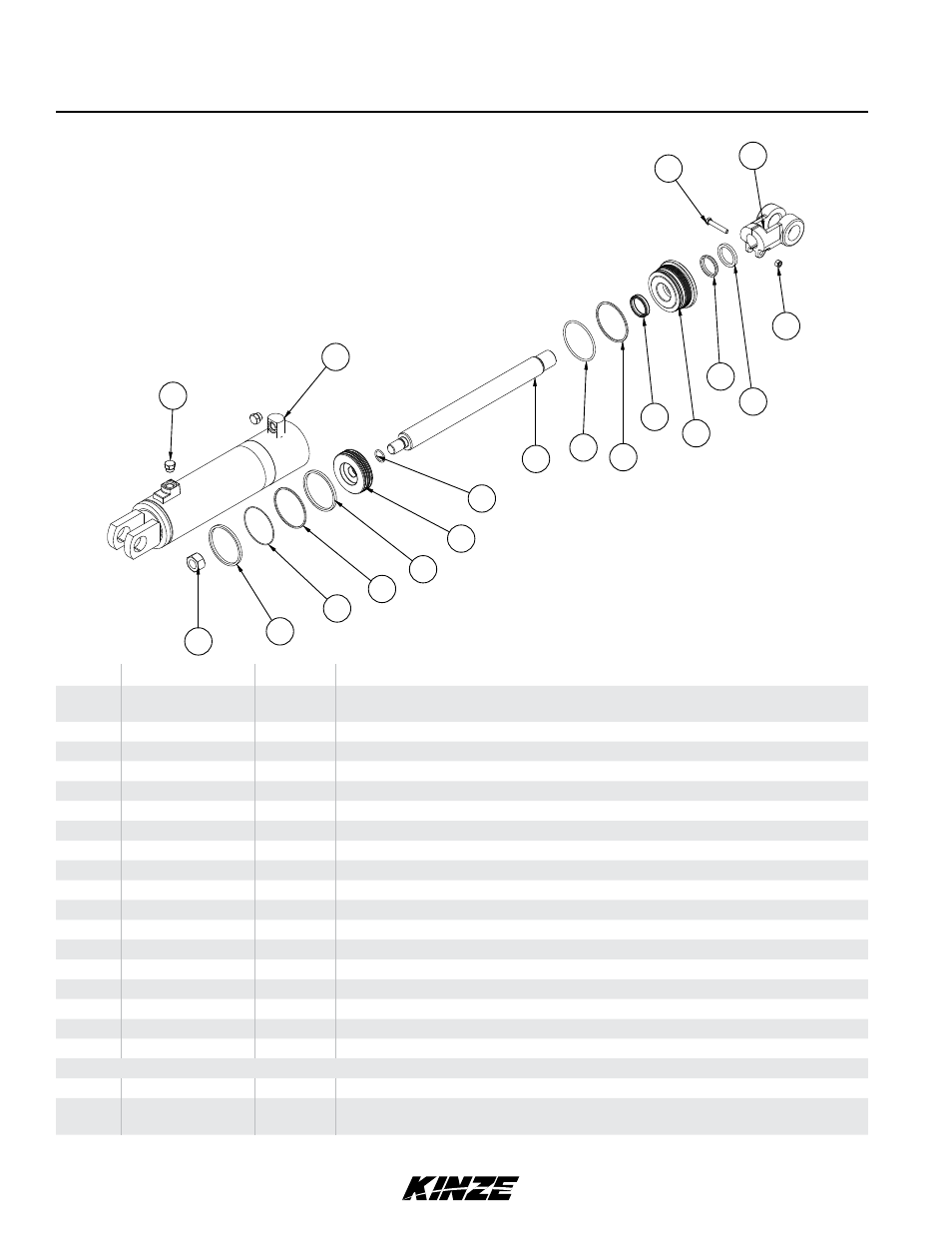

Rockshaft Transport Lift Cylinder
(IP1027)


1 LOCKNUT, HEX 1-14 GR C PLN AZTEC 10958 18
2 PISTON RING, 4" CAST IRON D12135 17
1 PISTON RING 4" CAST IRON D12072 16
1 ENERGIZER, SEAL 4" #153 VITON D12224 15
1 PISTON, 4.00 DIA D12541 14
1 O-RING #214, 75D VITON D12208 13
1 ROD, CYLINDER D18515 12
1 O-RING #342, 75D VITON D12221 11
1 BACK-UP RING #342, 53D POLYMYTE D12222 10
1 U-CUP LIP SEAL, 1-3/4 SPRING LOADED D12253 9
1 GUIDE, HEAD GLAND D12539 8
1 ROD WIPER, 1-3/4" POLYMYTE D12200 7
1 RING, LATHE CUT 1-3/4" D12104 6
1 NUT, HEX,3/8 - 16 GR5 PLTD 10101 5
1 CLEVIS, CYLINDER D18528 4
1 HHCS, 3/8-16 X 2.25 GR5 PLTD 10939 3
1 WELD, CYLINDER BODY A13031 2
2 O-RING PLUG, 3/4-16 HEX HEAD 6408-08 1
QTY DESCRIPTION PART NUMBER ITEM
TODD GRAY
IP1027
18
17
16
15
17
14
13
12
11
10
9
8
7
6
4
2
1
5
3
ITEM PART NO. QTY. DESCRIPTION
1 G6408-08
GR1037 2
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
2 A13031 1 Barrel (Non-Stock Item)
3 G10939 1 Hex Head Cap Screw, ⅜"-16 x 2¼"
4 GD18528 1 Clevis
5 G10101 1 Hex Nut, ⅜"-16
6 GD12104 1 Ring, 1¾"
7 *D12200 1 Wiper, 1¾"
8 GD12539 1 Gland
9 *D12253 1 U-Cup
10 *D12222 1 Back-Up Ring, No. 342
11 *D12221 1 O-Ring, No. 342
12 GD18515 1 Clyinder Rod
13 GD12208 1 O-Ring, No. 214
14 GD12541 1 Piston
15 GD12224 1 Seal
16 GD12072 1 Cast Iron Ring
17 GD12135 2 Cast Iron Ring
18 GD27235 1 Nylon Lock Nut, 1”-14, Grade 8
A GA13021 - Cylinder Complete, 4" x 14" (Part Number Stamped On Barrel)
B GR1928 - Seal Kit, Includes: (2) O-Rings, (1) Back-Up Ring, (1) U-Cup, (1) Wiper, (2) Seals,
(1) Cast Iron Ring
*Part of seal kit, item can not be purchased individually.
TM
M0217-02 Model 3660
P169 Rev. 6/14
