Kinze 3660 Lift and Rotate Planter Rev. 6/14 - Manual (Page 199)

1 CAP NUT, 7/8-14 JIC 304-C-10
2 HOSE ASSEMBLY, 1/2 X 240 A12727
2 HOSE ASSEMBLY, 3/4 X 224 A12912
1 HOSE ASSEMBLY, 1/2 X 24 A1459
2 HOSE ASSEMBLY, 1/2 X 36 A8262
1 HOSE ASSEMBLY, 1/4 X 224 A7652
2 HOSE ASSEMBLY, 1/2 X 30 A1424
1 STR MALE ADPT,7/8-14 JIC X 1/2 NPT 2404-10-08
2 O-RING, #155 D18343
2 ADAPTER, 7/8-14 JIC, 1-1/16-12 O-RING 6400-10-12
2 ADAPT, 1-1/16-12 JIC, 1-1/16-12 O-RNG 6400-12
2 HOSE, 1 1/4 X 5 D19498-01
2 1 5/8 - 12 JIC X 1 1/4 SWIVEL HOSE BARB D19493
2 1 5/8-12 JIC O-RING X 1 1/4 HOSE BARB D19492
19
18
17
16
15
2 ADJ 90 EL, 7/8-14 X 1-1/16-12 O-RNG 6801-10-12
14
2 ADAPTER, 1-5/16-12 O-RING X 1-5/8 6410-16-20
13
2 ADJ 90 EL, 1-5/8-12 X 1-5/8-12 O-RING 6801-20
12
11
2 ADAPTER, 7/8-14 JIC, 7/8-14 O-RING 6400-10
10
4 ADJ 90 EL, 7/8-14 X 7/8-14 O-RING 6801-10
9
8
7
6
5
4
3
2
1
QTY DESCRIPTION PART NUMBER ITEM
Hoses From
Bulkhead
4 PL.
2 PL.
Edge Vac
Flow
Control
Valve
Flow Control
Valve
Hydraulic Pump
Edge Vac
Edge Vac
ASD Fan
ASD Fan
Bulkhead On Hitch
CF
CF
IN
IN
EX
EX
10
12
15
1
2
18
15
16
19
10
9
11
6 6
13
13
5
4
3
7
8
8
14
9
17 18
17

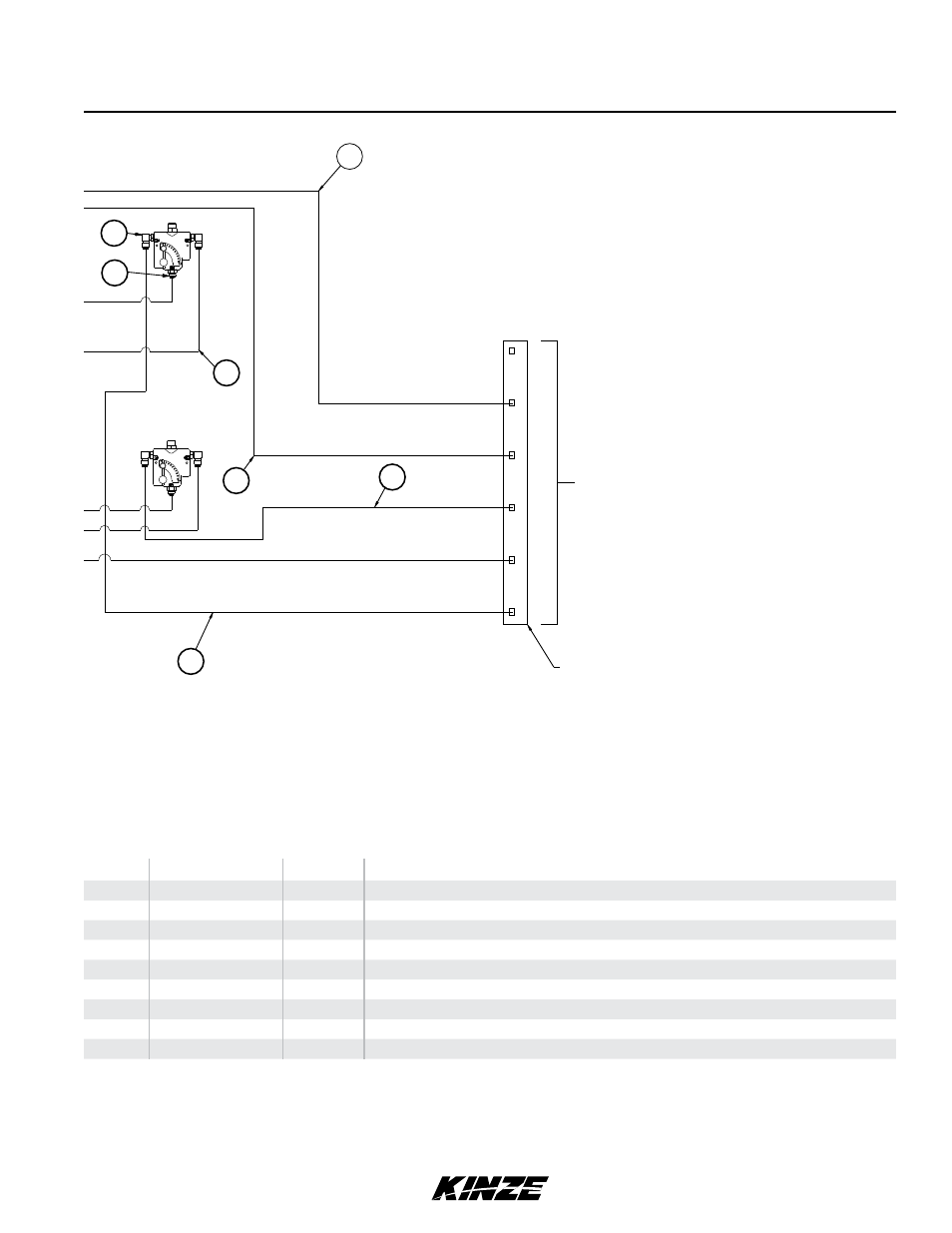

Planter Mounted PTO Hydraulic Hoses and Fittings
ITEM PART NO. QTY. DESCRIPTION
11 GD18343 2 O-Ring
12 G2404-10-12 1 Adapater, ⅞"-14 x ½" NPT
13 *A1424 2 Hose Assembly, ½" x 30"
14 *A7652 1 Hose Assembly, ¼" x 224"
15 *A8262 2 Hose Assembly, ½" x 36"
16 *A1459 1 Hose Assembly, ½" x 24"
17 GA12912 2 Hose Assembly, ¾" x 224"
18 GA12727 2 Hose Assembly, ½ x 240"
19 G304-C-10 1 Cap Nut, ⅞"-14
* Hydraulic hose is not stocked by Kinze Repair Parts, but can be made available on a special order basis. Call for quote.
Model 3660 M0217-02
Rev. 7/11 P196
