73
7 Visualization

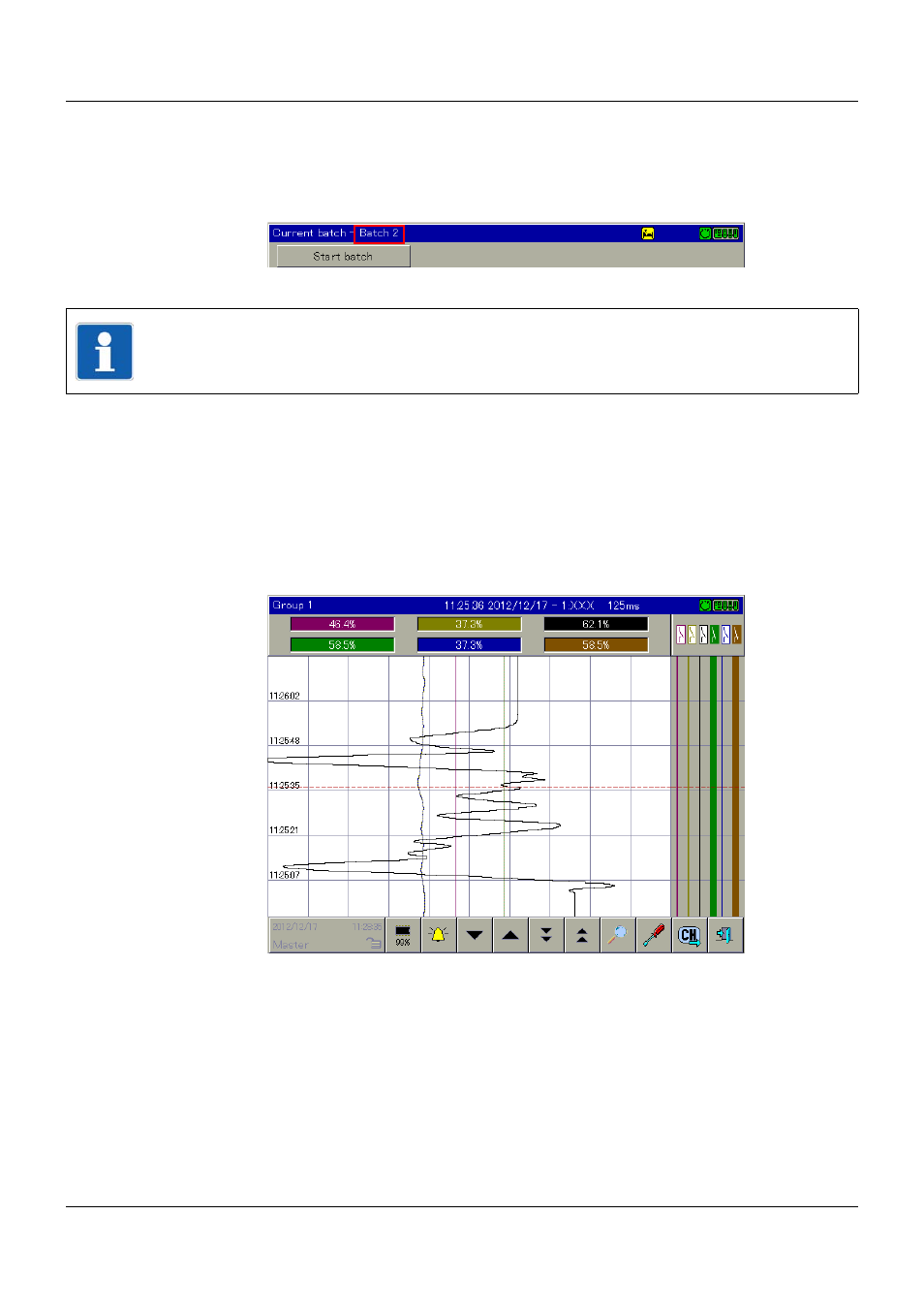

Batch rotation
In contrast to the "Batch selection" function, in which any batch can be selected, this function
displays the batches one after the other.
Home button
This function calls up a defined visualization. The function must be activated and configured
via the setup program.
 Setup program:
HMI > C ONFIGURATION LEVEL > S CREEN > U SER OPERATING LEVEL
7.9.1 Batch evaluation: Diagrams
The operation of the batch evaluation corresponds to the operation of the function "Memory dis-
play".
 Chapter 8 "Memory display (History)", page 83
End batch evaluation
This function is used to end the evaluation; the "Last completed batch" visualization is called
up again.
(1)
(1) Batch name
NOTE!
The function is only available if more than one batch is active.
(1)
(1) End batch evaluation
