2.7.2 Batch texts
How can something be edited?
Text left column
The text in the left column or the left half of the screen can be edited on the multifunction panel
and using the setup program.
 Multifunction panel:
C ONFIGURATION > HMI > B ATCHES /P LANTS > B ATCH 1 TO 9 > B ATCH INFO 1 TO 10 > T EXT
LEFT COLUMN
 Setup program:
HMI > C ONFIGURATION LEVEL > B ATCHES /P LANTS > B ATCH 1 TO 9 > B ATCH INFO > B ATCH
INFO 1 TO 10 > E DIT > T EXT LEFT COLUMN
Text right column
The text in the right column or half of the screen can be edited on the multifunction panel and
using the setup program.
 Multifunction panel:
C ONFIGURATION > HMI > B ATCHES /P LANTS > B ATCH 1 TO 9 > B ATCH INFO 1 TO 10 > T EXT
RIGHT COLUMN
and
C
ONFIGURATION > HMI > B ATCHES /P LANTS > B ATCH 1 TO 9 > B ATCH INFO 1 TO 10 > F ACTO -
RY SETTING
(1) (2)
(3)
(4)
(5)

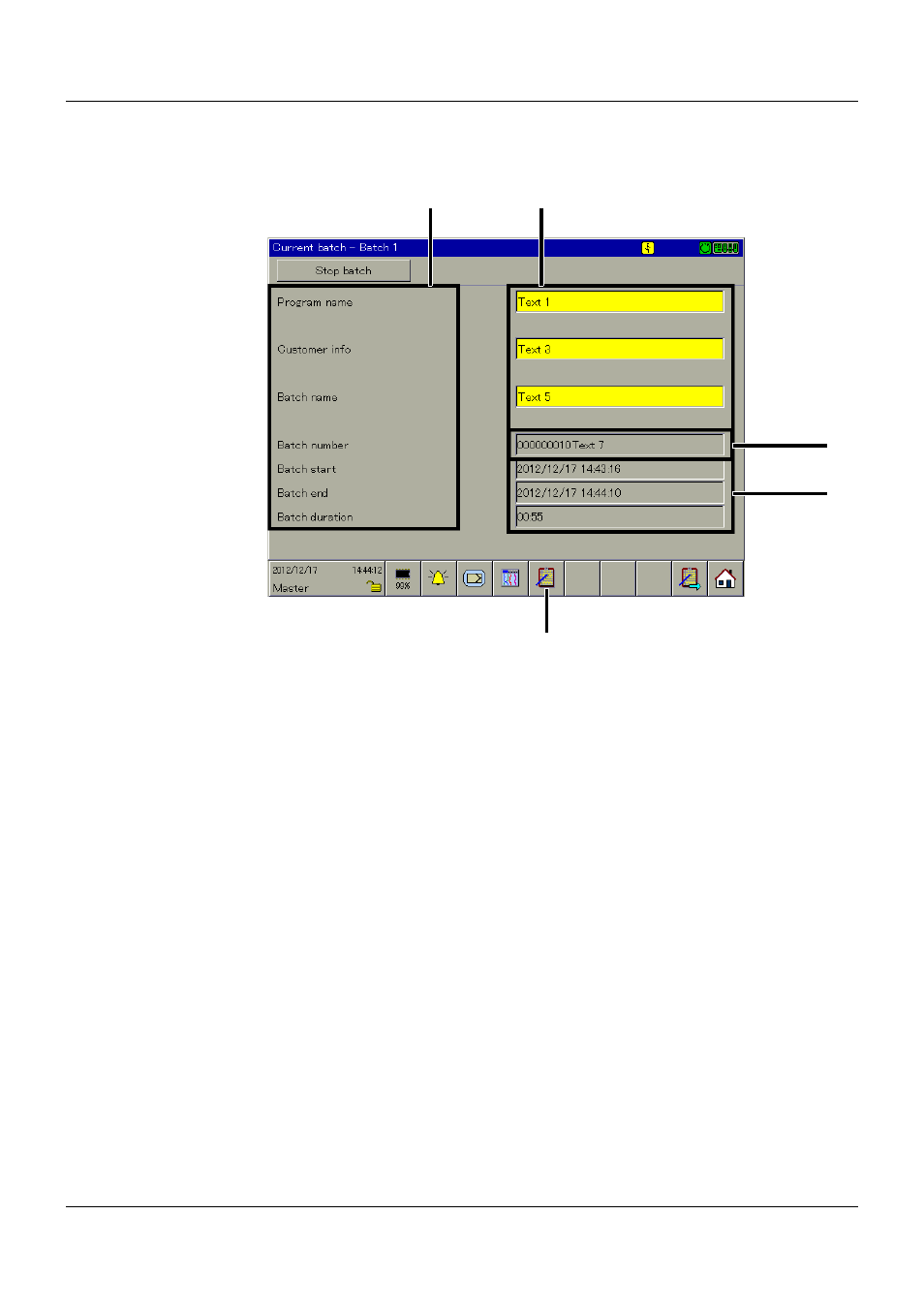

(1) Text left column (2) Text right column
(3) Batch number (4) Batch start, end, duration
(5) Batch selection
