7 Visualization
Group selection
This function is used to directly select and display one of the active groups. Simply touch one
of the group designations displayed after calling up the function.
Memory display
This function is used to start the display of the data available in the history memory.
 Chapter 8 "Memory display (History)", page 83
Numerical measured value display
This function can be used to show and hide the numerical measured value display (diagram
header) and the digital tracks, and to activate the envelope diagram display.
 Chapter 5.1.2 "Visualization window", page 43
Channel rotation
This function activates the display of various limits. Touching the button repeatedly shifts the
channel limits within the group and then subsequently hides them.
Group rotation
In contrast to the "Group selection" function, in which any group can be selected, this function
displays the groups one after the other.
NOTE!
The function is only available if more than one group is active.

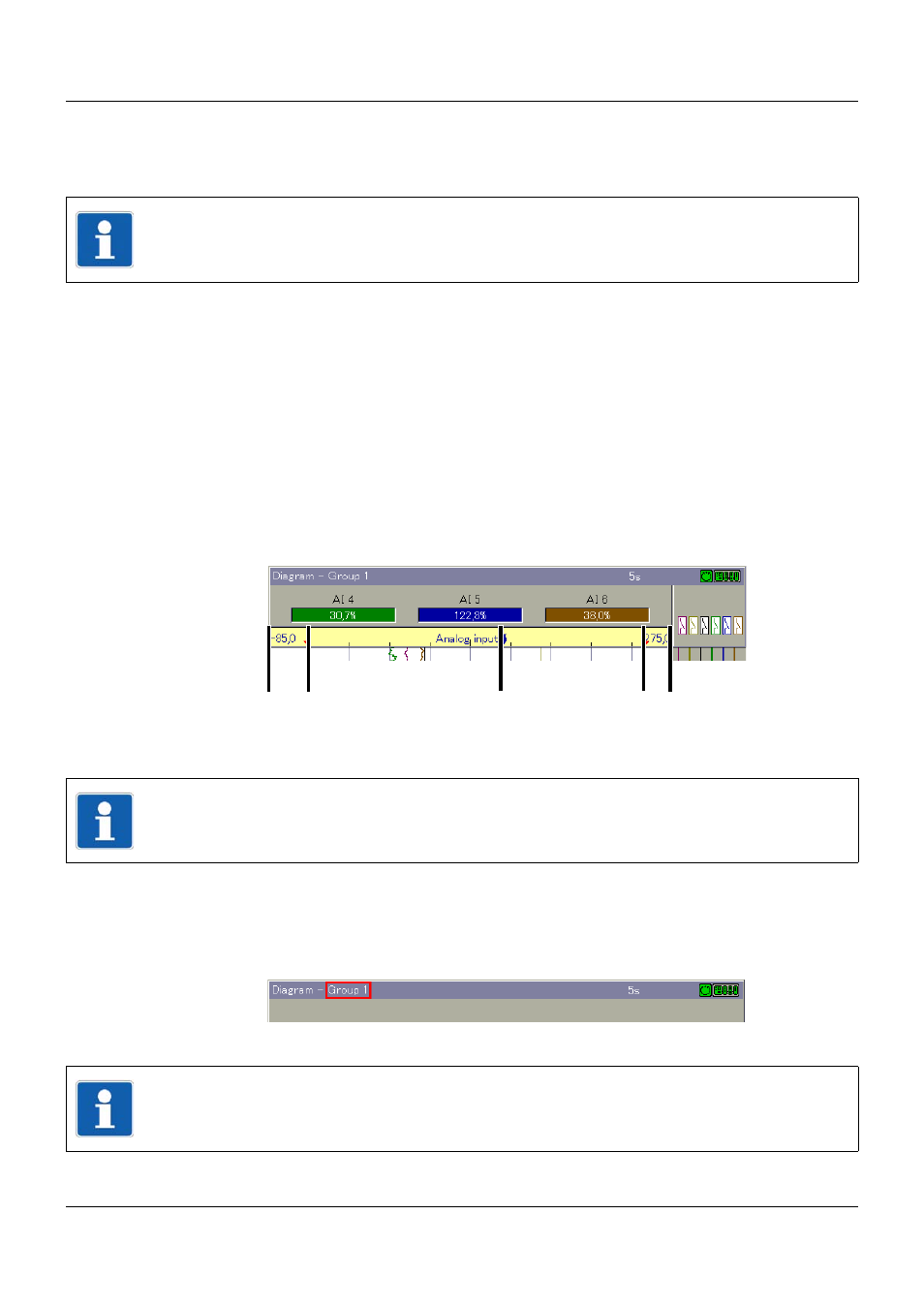

(1) (5) (2) (3) (4)
(1) Range start (2) Limit value 1
(3) Current measured value (4) Limit value 2
(5) Range end (6) Memory display
NOTE!
The function is only available if more than one analog channel is active in a group.
(1)
(1) Group number
NOTE!
The function is only available if more than one group is active.
