139
13 Configuration
13.6.1 Alarm
Limit value monitoring with one or two alarms can be activated for each analog variable. The
alarm is entered in the status and title line and in the alarm and event list of the multifunction
panel.
This type of limit value monitoring is in addition to and independent of the limit value monitoring
of the base unit.

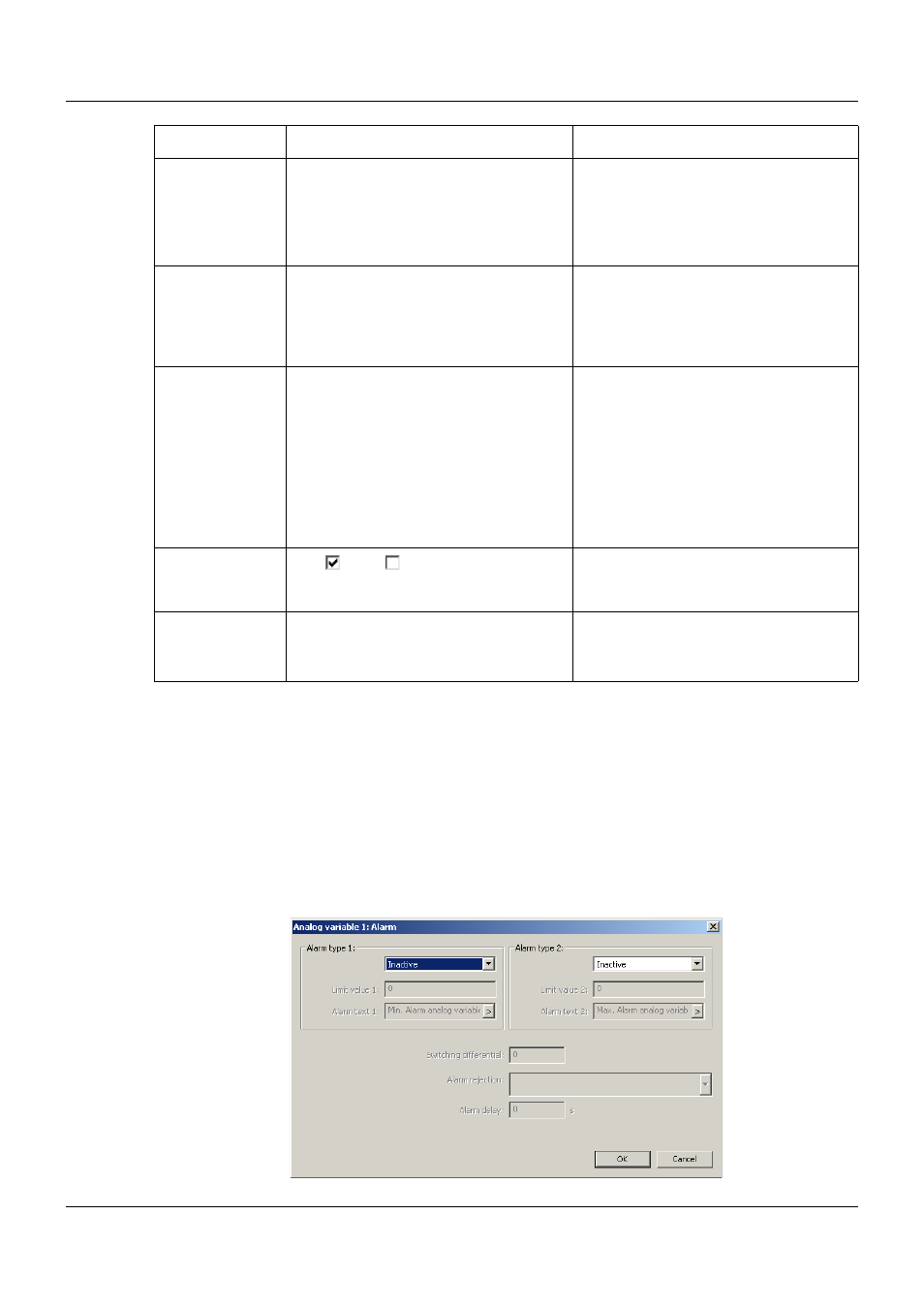

Setup dialog
Range end 100 Limitation of the measuring range
If measured values appear that are
above the configured range, the multi-
function panel issues the indication
">>>>>".
Unit % Unit in which the recorded signal is to be
displayed, with a max. length of five
characters. The unit is displayed wher-
ever the measured value is displayed in
numerical form.
Comma format XXXX.X The comma format determines the num-
ber of pre-decimal and post-decimal
places for the numerical display of the
measured values. If required, the multi-
function panel automatically switches to
a different format in order to display all
pre-decimal places.
First and foremost, all pre-decimal
places must be displayed.
Retain Yes ( ), No ( ) If "Yes", the current value is saved upon
switch-off (power off) and is available
again upon switch-on (power on).
Alarm The user can configure up to two alarms
for monitoring two limit values.

Chapter 13.6.1 "Alarm", page 139
Parameter Selection/settings Description
