JUMO mTRON T
Measuring, Control, and Automation System
Analog input module 4-channel
Brief description
The analog input module 4-channel is equipped with four universal analog inputs that are elec-
trically isolated from each other for thermocouples, RTD temperature probes, resistance trans-
mitters, resistance/potentiometers, or standard signals (current or voltage) as well as one digital
input (DC 0/24 V). The digitized input values/states are available in the system for further pro-
cessing.
LEDs are used to indicate applied voltage supply, the module operating status, as well as the
logical status of the digital input.
A setup program can be used to comfortably configure the analog input module.
For service work, the module insert can be easily pulled out of the case at the front. The case
including the bus PCB remains mounted on the DIN rail.
Type 705020/...

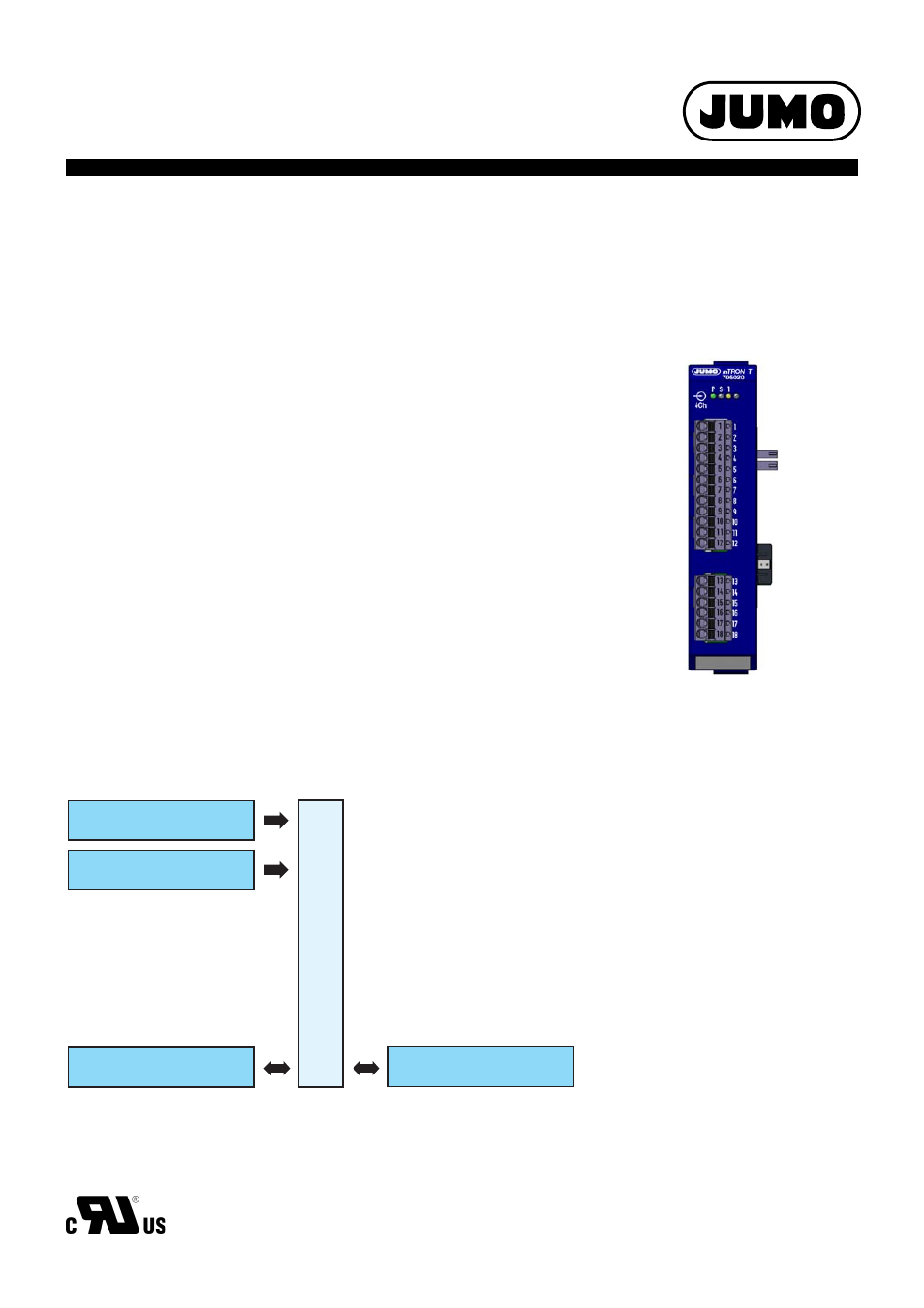

Block diagram
4 universal analog inputs
electrically isolated
1 digital input
(DC 0/24 V)
705020
Voltage supply
System bus
Features
• Four high-quality, universal analog inputs
for thermocouples, RTD temperature
probes, resistance transmitters, resistance/
potentiometers, or standard signals
• All analog inputs are electrically isolated
from each other
• Customer-specific linearization (up to 45
pairs of values or polynomial up to the 4th
order)
• Limit value monitoring
• One digital input DC 0/24 V
• Automatic configuration after the module
insert has been exchanged (Plug and Play)
• Connection of the inputs at the front
• Removable terminal strips with Push-In
technology
• Quick wiring of operating voltage and sys-
tem bus due to easy module connection
Approval/approval marks (see “Technical data”)
