2 Description

2.4

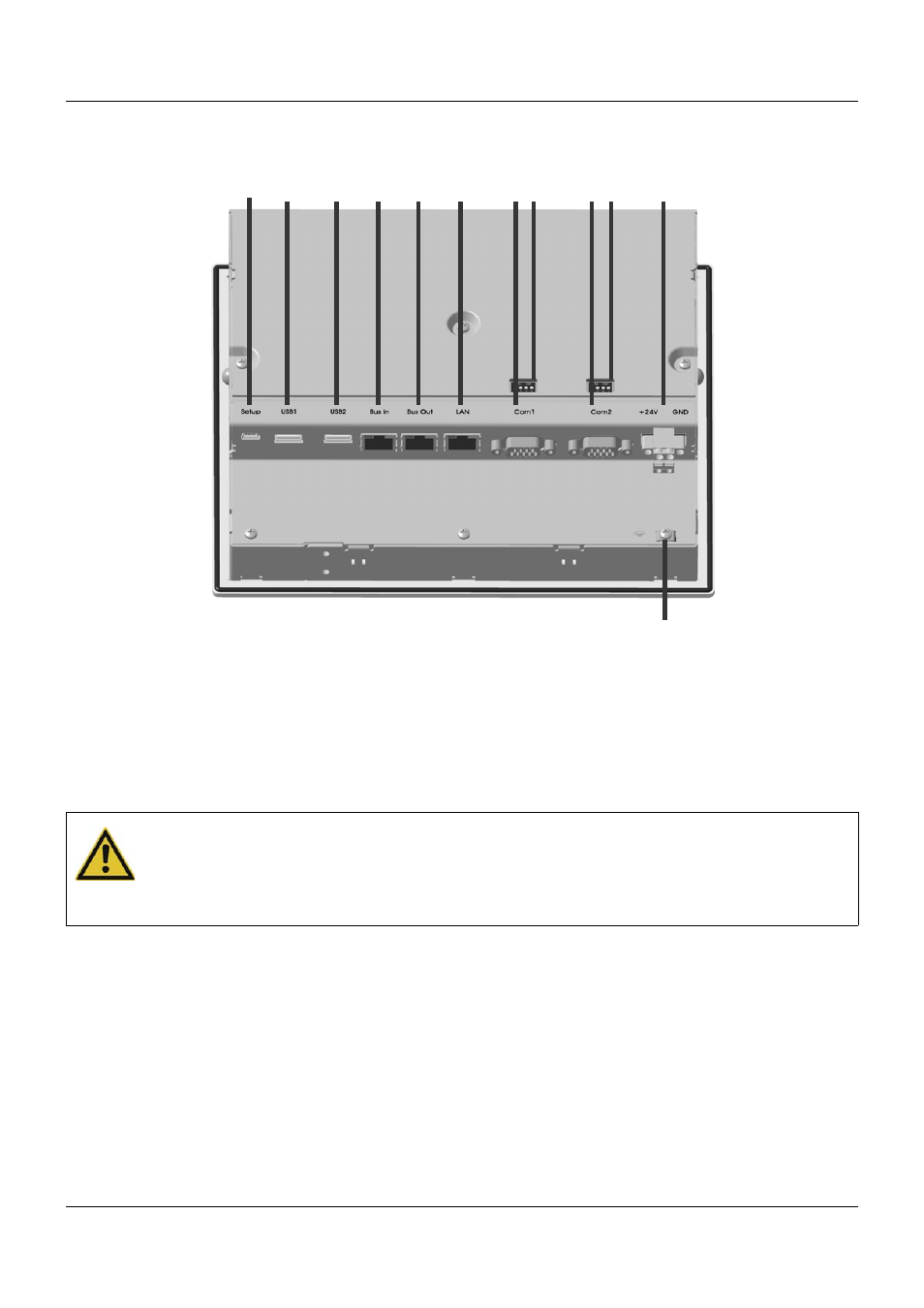

Connection elements

(1) (2)

(3)

(4)

(5)

(6)

(7)(8)

(9)(10)

(11)

(12)

(1) USB device interface (setup)

(2) USB host interface 1

(3) USB host interface 2

(4) System bus In

(5) System bus Out

(6) LAN interface

(7) Com1 interface

(8) Com1 terminating resistor

(9) Com2 interface

(10) Com2 terminating resistor

(11) Voltage supply In, DC 24 V

(12) Functional grounding

CAUTION!
Functional grounding:
Connection terminal for functional ground.
To meet the specified EMC characteristics, this terminal must be connected to functional
ground.
