14 Configuration – in setup program only
244
Process step choice (version 02)

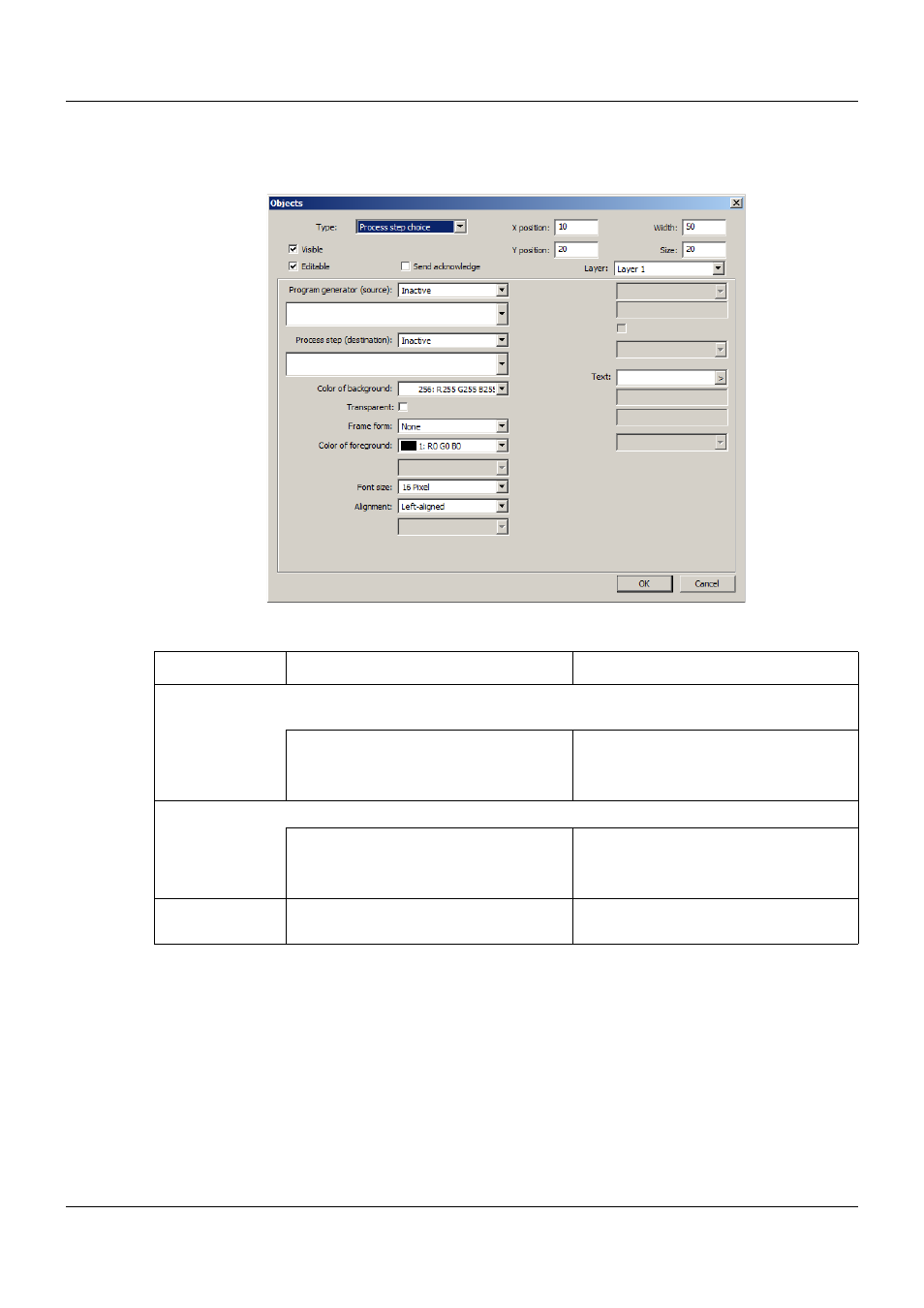

Setup dialog
Parameter
Program generator (source)
If the program generator number has to be directly selectable in the process screen, an object
of type "Input integer" may be used for this purpose. The entered value (program generator
number) is written to an integer variable. This variable is then selected as signal (source) in the
"process step choice" object.
Parameter Selection/settings Description
Program genera-
tor (source) Number of the program generator. All process steps that are assigned to this pro-
gram generator, are displayed in a selection box.
Inactive No signal selected.
Select module and corresponding sig-
nal. The signal must be of the "Integer" data
type.
Process step
(destination) Variable to which the number of the selected process step is written.
Inactive No variable selected.
Select module and corresponding vari-
able. The variable must be of the "Integer"
data type.
Text Enter text. Text for the designation of the object in
the process screen
?
