7 Visualization
66
Minimum
The current minimum value of the current capture period is displayed in this area. In addition
to the value and the unit, the date is also displayed.
Average
The current average of the current capture period is displayed in this area.
Period
The start (date and time) and the current time of the current capture period are displayed in this
area. The current time is saved at the end of a capture period. The start and end are therefore
recorded.
Group selection
This function is used to directly select and display one of the active groups. Simply touch one
of the group designations displayed after calling up the function.
Channel rotation
This function is used to switch between the individual channels of the active group.
Group rotation
In contrast to the "Group selection" function, in which any group can be selected, this function
displays the groups one after the other.
Home button
This function calls up a defined visualization. The function must be activated and configured
via the setup program.
 Setup program:
HMI > C ONFIGURATION LEVEL > S CREEN > U SER OPERATING LEVEL
NOTE!
The function is only available if more than one group is active.

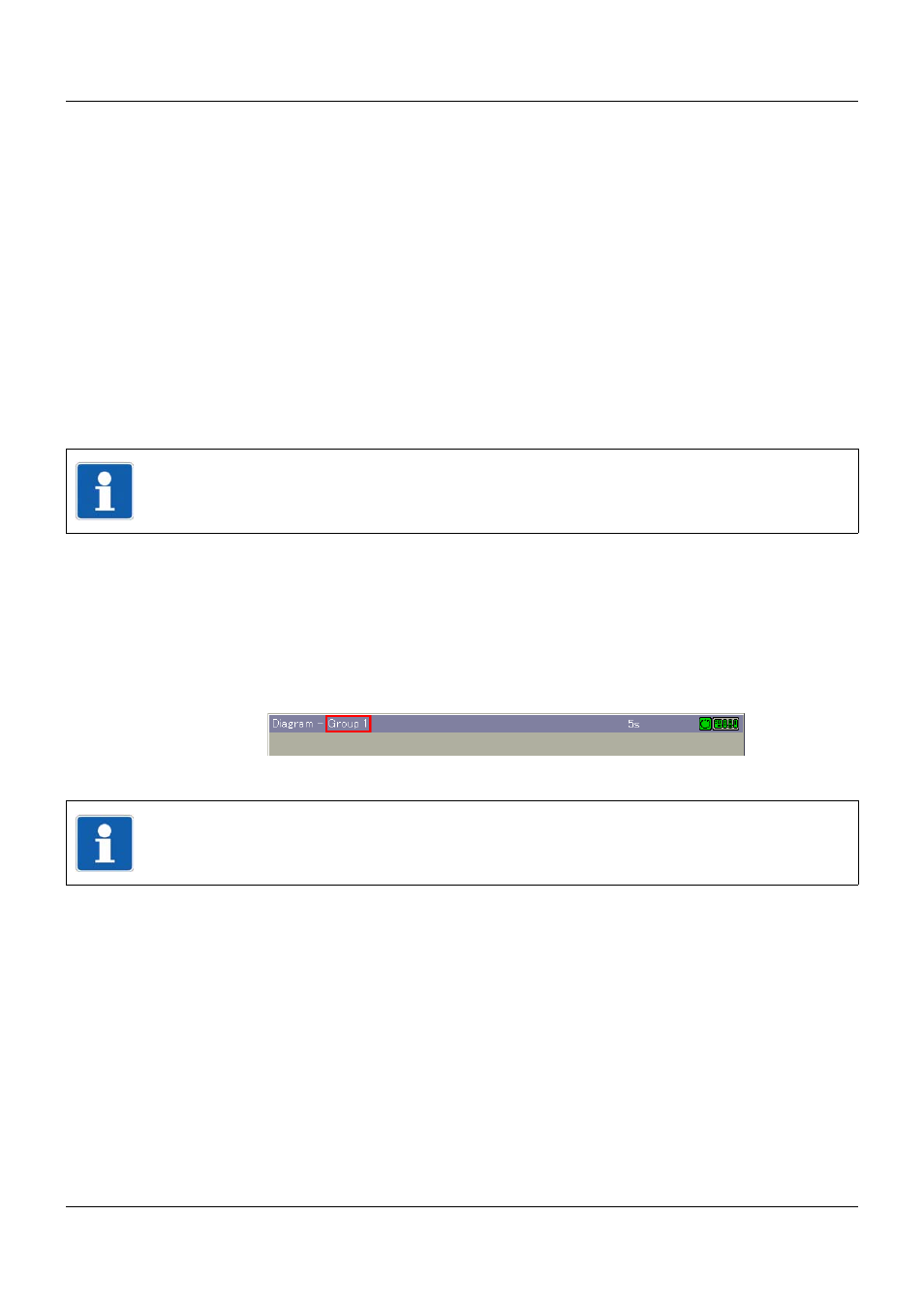

(1)
(1) Group number
NOTE!
The function is only available if more than one group is active.
