13.17.2 Specific settings

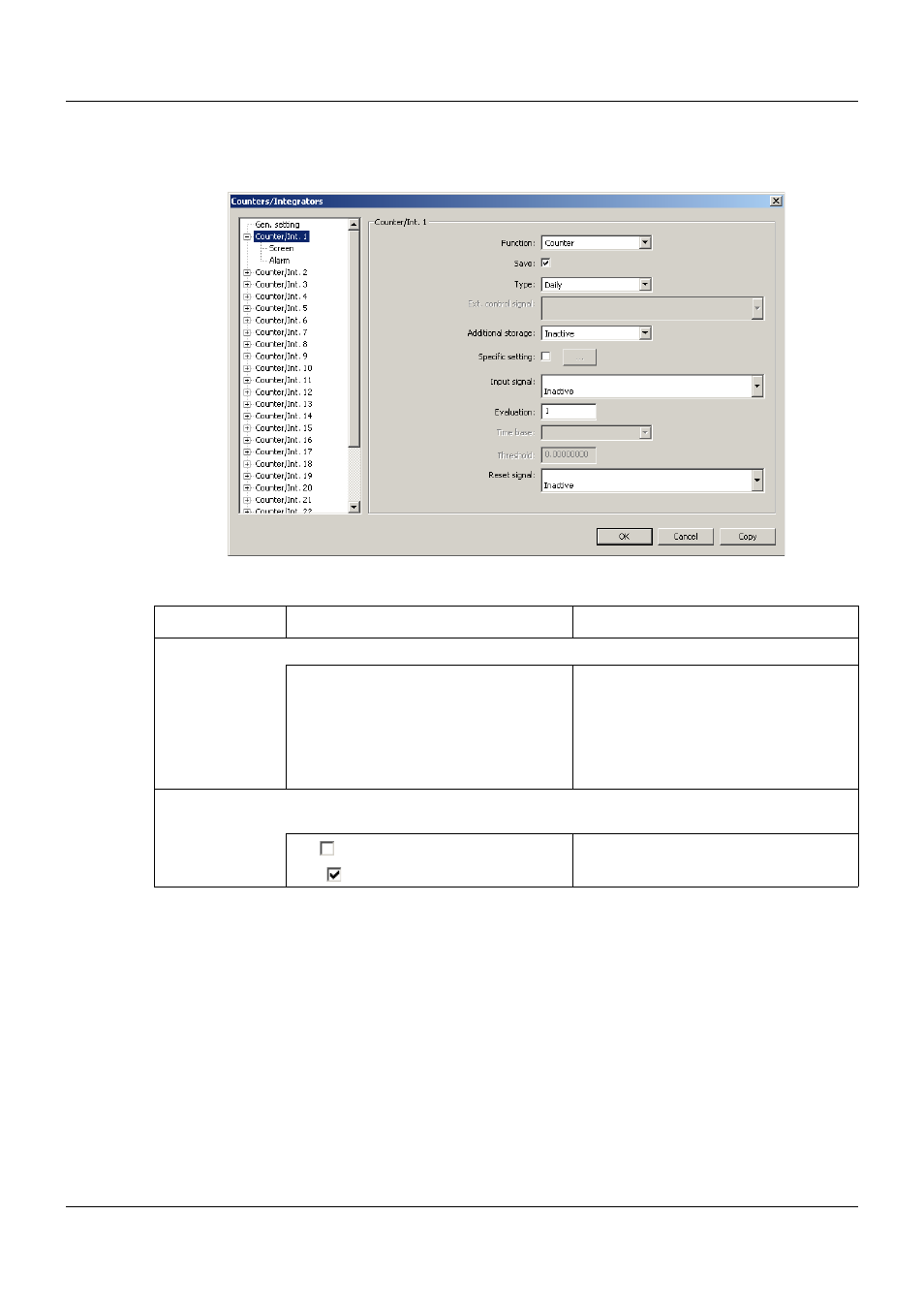

Setup dialog – Counter/Int. 1 to 27
Parameter
Parameter
Selection/settings
Description
Function
Operating mode of the counter/integrator
Inactive
Counter/integrator is switched off.
Counter
Counter for the pulses of a digital signal
Integrator
Integration of an analog signal
Operating time
Determination of the length of time that
a digital signal is active.
Save
The result (status of the counter/integrator) can be saved in order to evaluate it
with the PCA3000 evaluation software.
No (
)
Event is not saved.
Yes (
)
Event is saved.
