7 Visualization
60

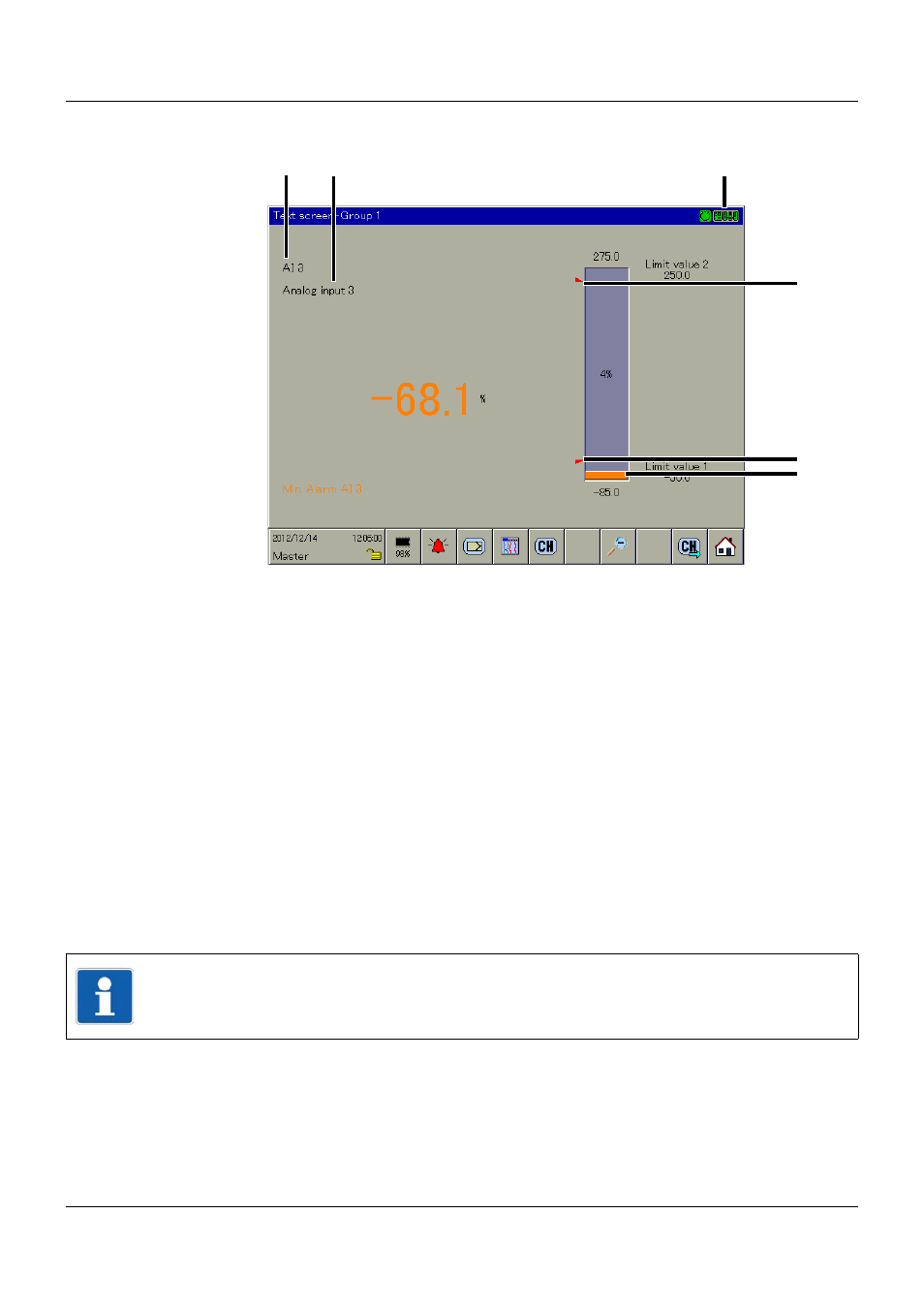

7.4.2 Channel display
Communication status
 Chapter 5.1.1 "Status line and Title line", page 42
Alarm
An alarm (Alarm1 or Alarm2) is marked with an orange or red background. The colors can be
configured in the setup program and using the multifunction panel.
Channel selection
This function is used to select and display one of the active analog channels. Simply touch one
of the channel names displayed after calling up the function.
Group display
The function switches to the group display.
 Chapter 7.4.1 "Group display", page 58
(7) (9) (10)
(3)
(6)
(1) (2)
(8)
(5)
(4)
(1) Channel name (2) Channel description
(3) Communication status (4) Limit value 2
(5) Limit value 1 (6) Alarm
(7) Channel selection (8) Group display
(9) Channel rotation (10) Home button
NOTE!
The function is only available if more than one analog channel is active in the selected group.
