103
11 Device manager
Exit function
Touch the screen here to exit the function and return to the visualization from which it was
called up.
Error overview
The user can use this function to display a matrix in which all errors are contained in an over-
view. This information may be of interest to the manufacturer, if required.
Update
The display is not cyclically updated. This function is used to update the display, i.e. the system
searches for new entries that are not yet present in the list.
Device info per module
The user can display module-specific device information by tapping this with his/her finger.
 Chapter 11.1.2 "CPU", page 103

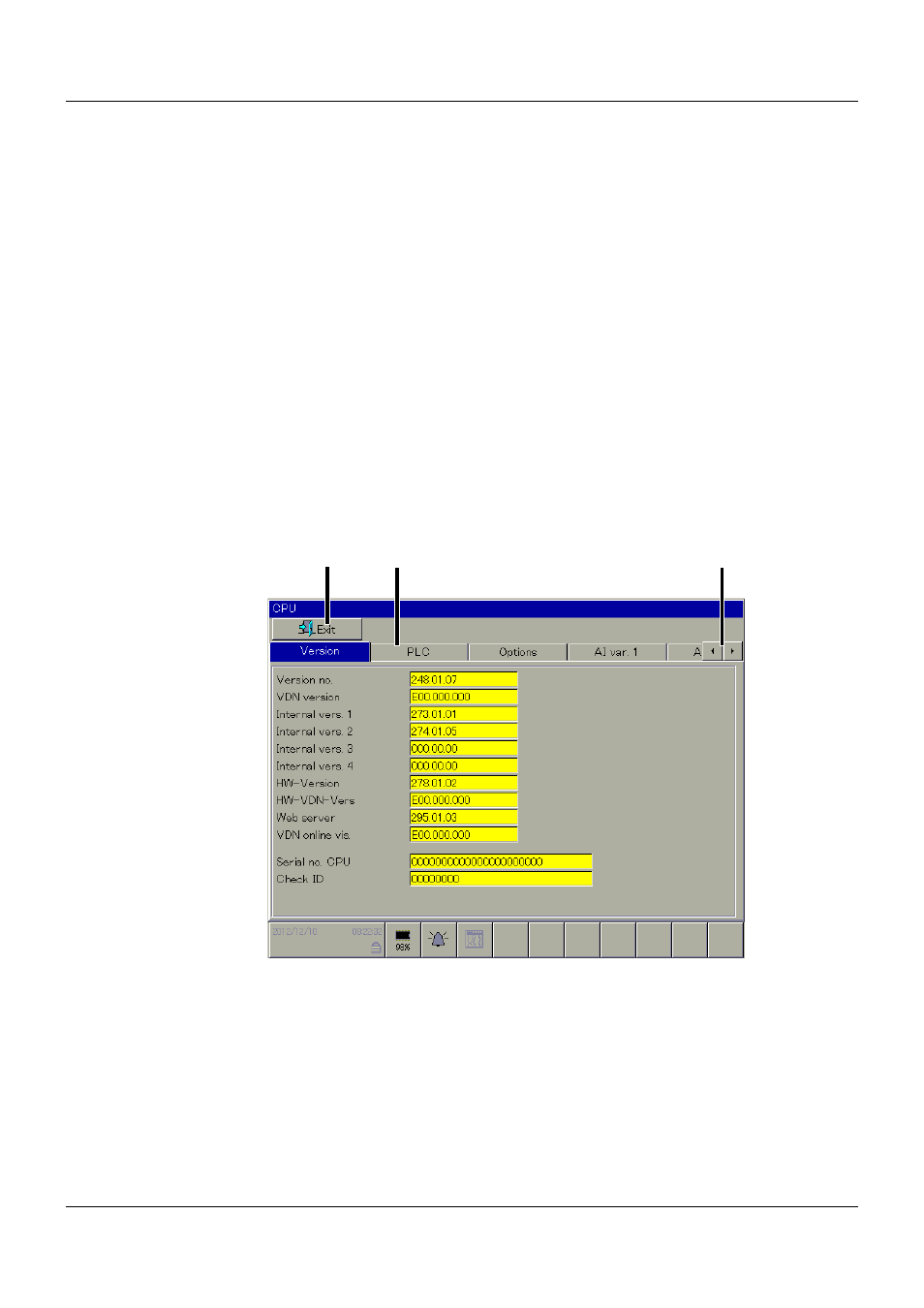

11.1.2 CPU
In the following chapter, device information on the central processing unit base unit is shown
as an example.
Exit
Exit to "Device info" function.
Tab
Touching a tab name displays the corresponding part of the information.
(2) (1) (3)
(1) Exit (2) Tab
(3) Show additional tabs
