4 Electrical connection
36
References to other information
• The electromagnetic compatibility meets the standards and regulations cited in the techni-
cal data.
• The USB device interface and voltage supply in the central processing unit 705001 are not
electrically isolated. In general, please observe the specifications regarding electrical isola-
tion.

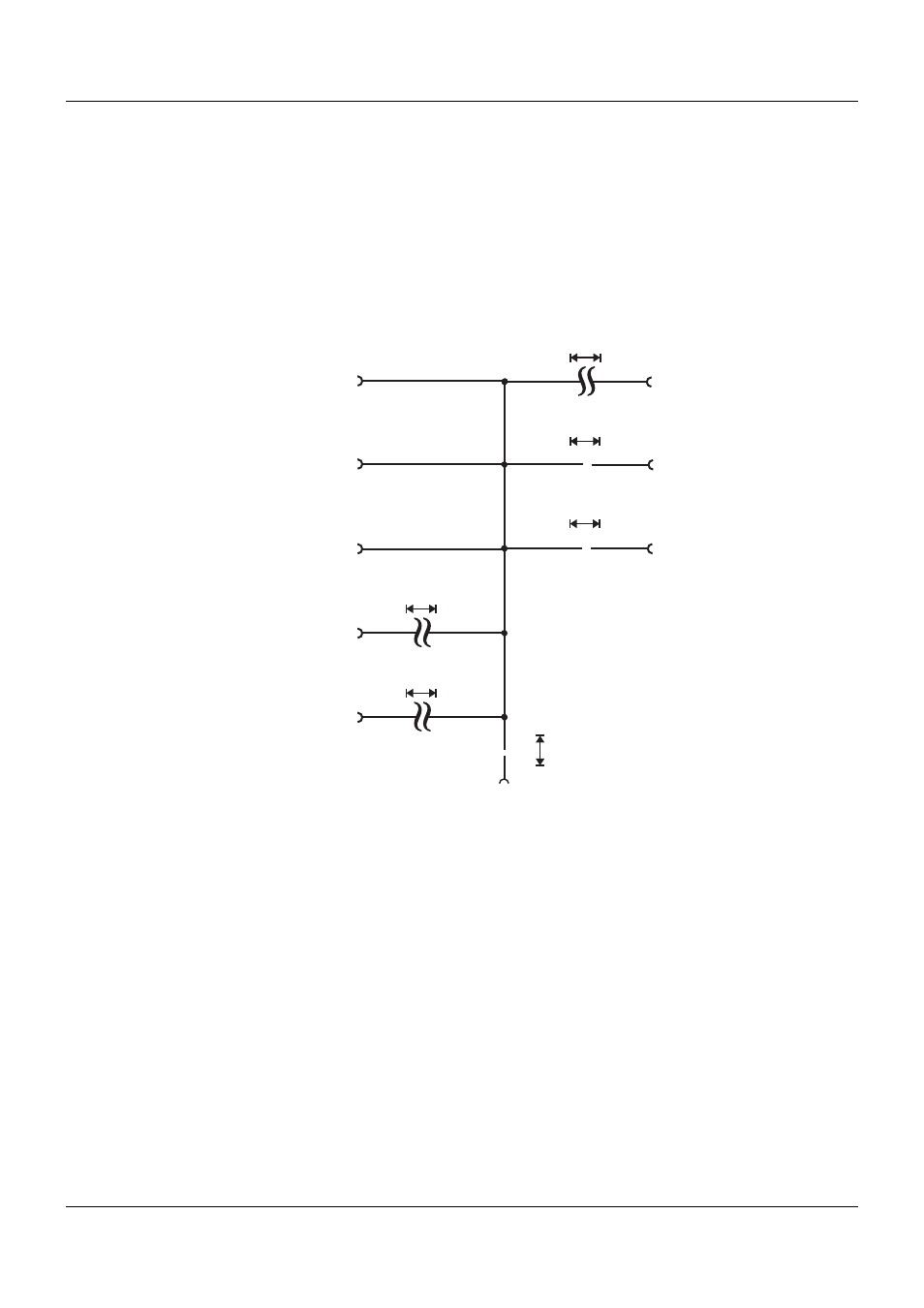

4.2 Electrical isolation
USB device
interface
System bus In
Interface Com2
»
Voltage supply
DC 24 V
Interface Com1
»
AC 1500 V
»
AC 1000 V
System bus Out
AC 1500 V
LAN
AC 1500 V
AC 30 V
DC 50 V
AC 30 V
DC 50 V
USB host
interface 1
USB host
interface 2
