13 Configuration
144
13.8 Digital inputs
The multifunction panel can manage and record 54 digital inputs. The digital inputs relate to
inputs and/or signals that reach the multifunction panel via the system bus.
For example, the digital inputs are pooled into groups together with other digital signals via the
"Groups" configuration and are available for further use via these groups.

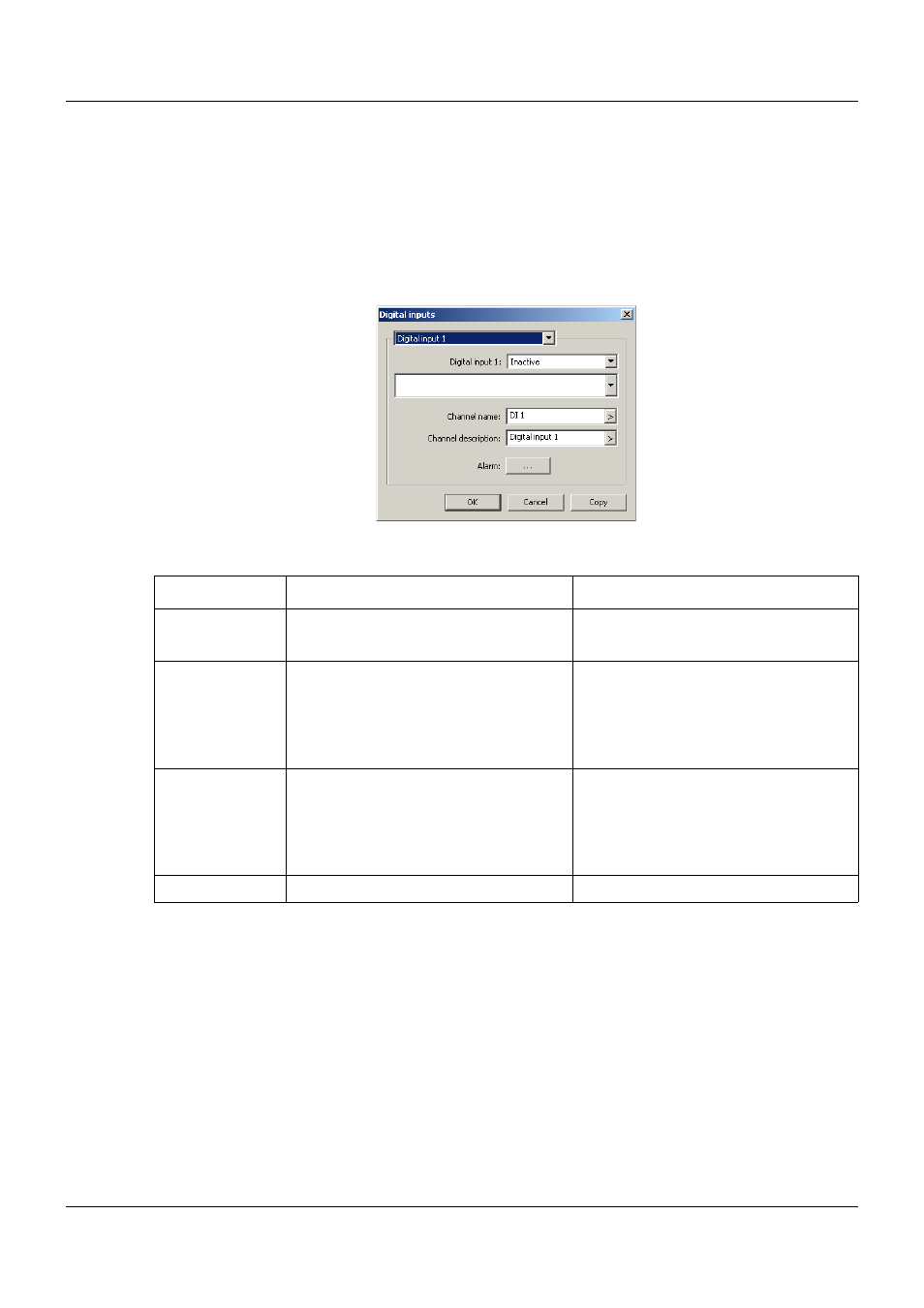

Setup dialog
Parameter
Digital channel x
The user can perform the allocation in this dialog window using the setup program. Further op-
tions can be seen in the following list.
•
Setup program: "NV connecting list: Digital" menu
HMI > C
ONFIGURATION LEVEL > NV CONNECTING LIST : D IGITAL
• Multifunction panel: "HMI digital inputs" menu
D
EVICE MANAGER > C ONFIGURATION > CPU > NV CONNECTING LIST > HMI DIGITAL INPUTS
Parameter Selection/settings Description
Digital input x Inactive No signal allocated.
Digital selector Signal that is to be allocated to the input.
Channel name DI x Name with a maximum length of seven
characters that is used in the visualiza-
tions together with the channel descrip-
tion.

Chapter 7.6 "Digital", page 63
Channel descrip-
tion Digital input x Description with a maximum length of
21 characters that is used in the visual-
izations together with the channel
names.

Chapter 7.6 "Digital", page 63
Alarm

Chapter 13.8.1 "Alarm", page 145
?
