7 Visualization
54

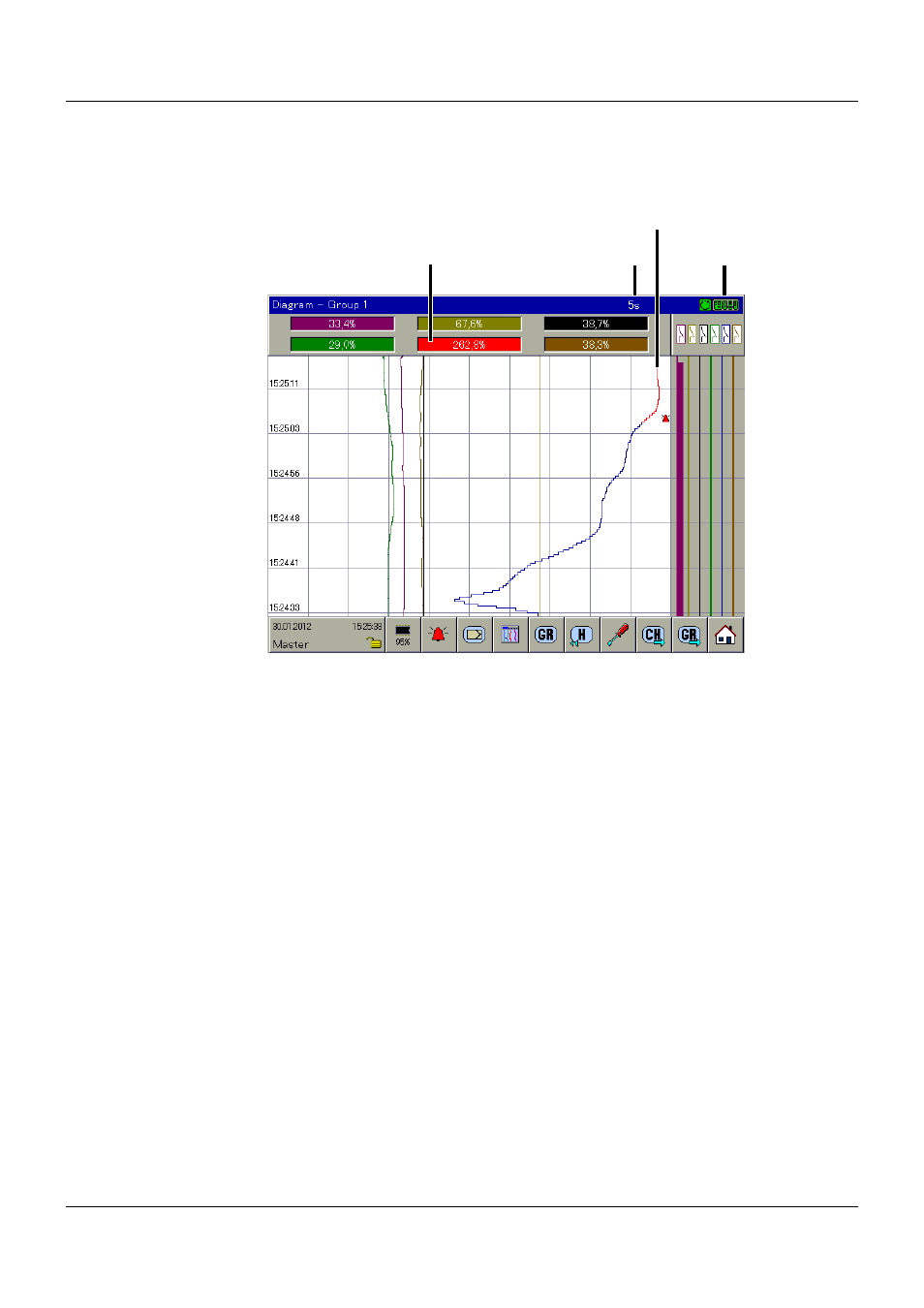

7.2 Diagram
In this visualization, the individual signals run across the screen from top to bottom (vertical dis-
play).
Alarm
An alarm (Alarm1 or Alarm2) is marked with an orange or red background and an orange or
red diagram. The colors can be configured in the setup program and using the multifunction
panel.
Sampling rate and operating mode
 Chapter 5.1.1 "Status line and Title line", page 42
Communication status
 Chapter 5.1.1 "Status line and Title line", page 42
(1) (2)
(3)
(5) (6) (7) (8) (9) (10)
(4)
(1) Alarm (2) Operating mode
(3) Alarm (4) Communication status
(5) Group selection (6) Memory display
(7) Numerical measured value display (8) Channel rotation
(9) Group rotation (10) Home button
