Chapter 35: RADIUS Authentication Protocol
322 Section II: Using the Web Browser Interface
Configuring the RADIUS Client
To configure the RADIUS client, perform the following procedure:
1. From the book marks on the left side of the page, select Security.
The Security folder expands.
2. From the Security folder, select RADIUS.

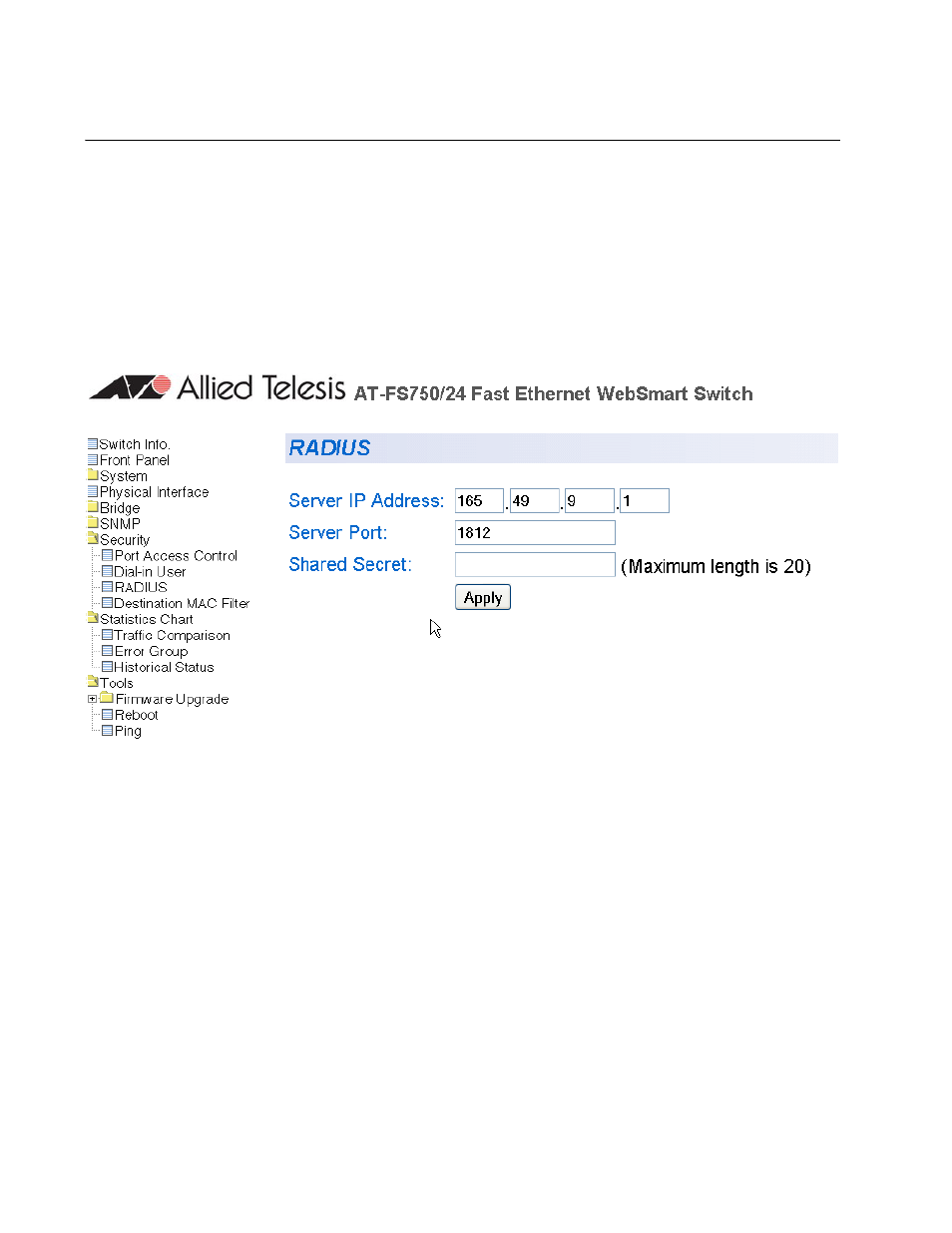

The RADIUS Page is shown in Figure 92.
Figure 92. RADIUS Page
3. To enter the RADIUS server’s IP address, enter the address in the
Server IP Address field in the xxx.xxx.xxx.xxx format.
4. To select the port number that you want to assign to UDP, type in the
port number in the Server Port field. You may only assign one port
number to this parameter. The default value is 1812.
5. To specify the server’s encryption key, click the Shared Secret field
and enter the encryption key. Then click Apply.
