Chapter 33: 802.1x Port-based Network Access Control Feature
312 Section II: Using the Web Browser Interface
Configuring 802.1x Port-based Network Access Control Feature
To configure the 802.1x Port-based Network Access Control feature,
perform the following procedure:
1. From the bookmarks on the left side of the page, click Security.
The Security folder expands.
2. From the Security folder, select Port Access Control.
The 802.1x Access Control Configuration Page is shown in Figure 90.

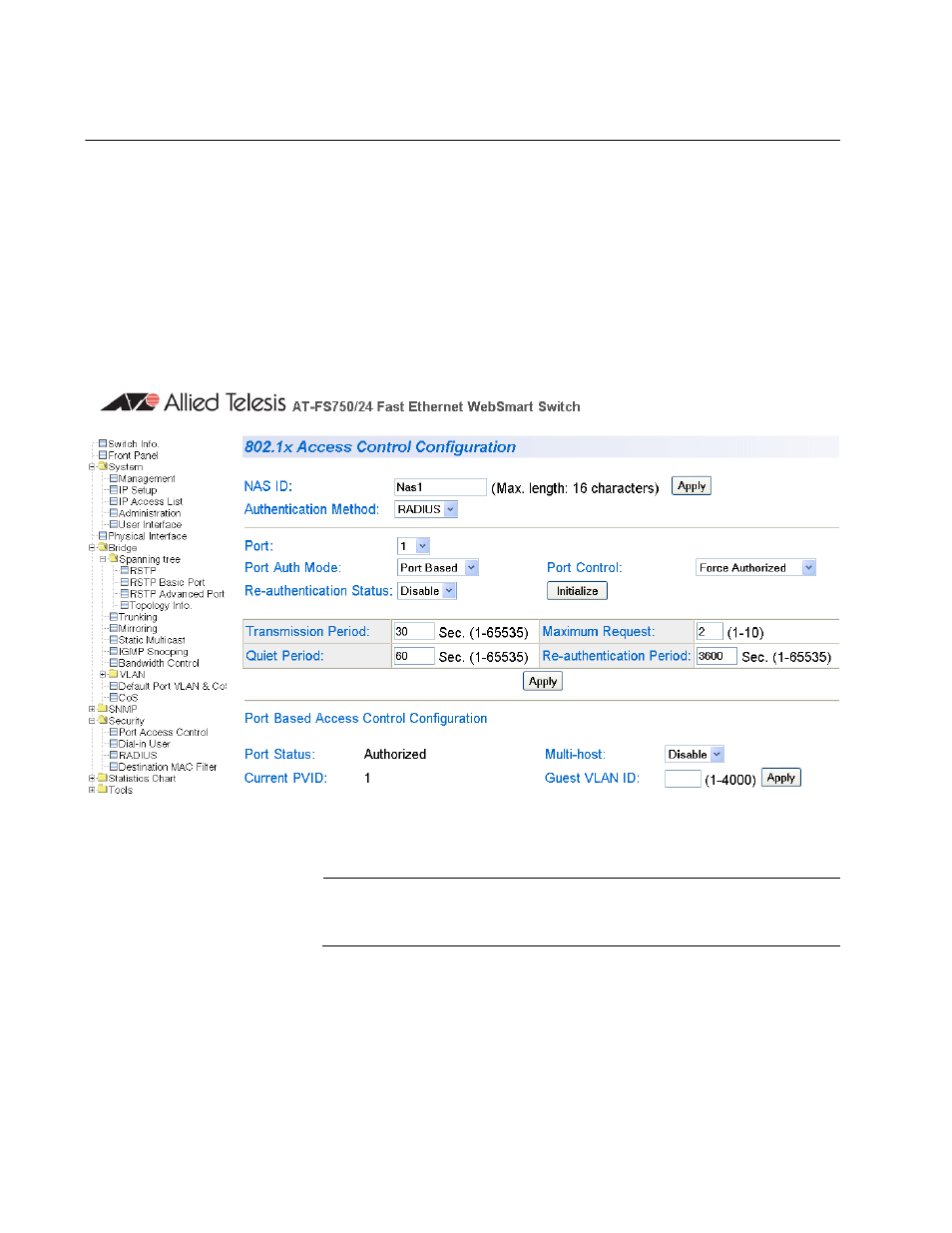

Figure 90. 802.1x Access Control Configuration Page
Note
The Initialize and Re-auth Initialize parameters are described in
Steps 5 and 6, respectively.
3. To select a port, click the Port field and select the port you want to
configure from the pull-down menu. You can configure only one port at
a time.
The current settings for the selected port are displayed.
