AT-S80 Management Software User’s Guide
Section II: Using the Web Browser Interface 281
Modifying a Port-Based VLAN
To modify a port-based VLAN, perform the following procedure:
1. From the bookmarks on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select VLAN.
The VLAN folder expands.
3. From the VLAN folder, select Port-Based VLAN.
The Port-Based VLAN Page is shown in Figure 79 on page 280.
4. In the VLAN Action column, click modify next to the VLAN that you
want to change.
The Modify Port-based VLAN Page is shown in Figure 80.

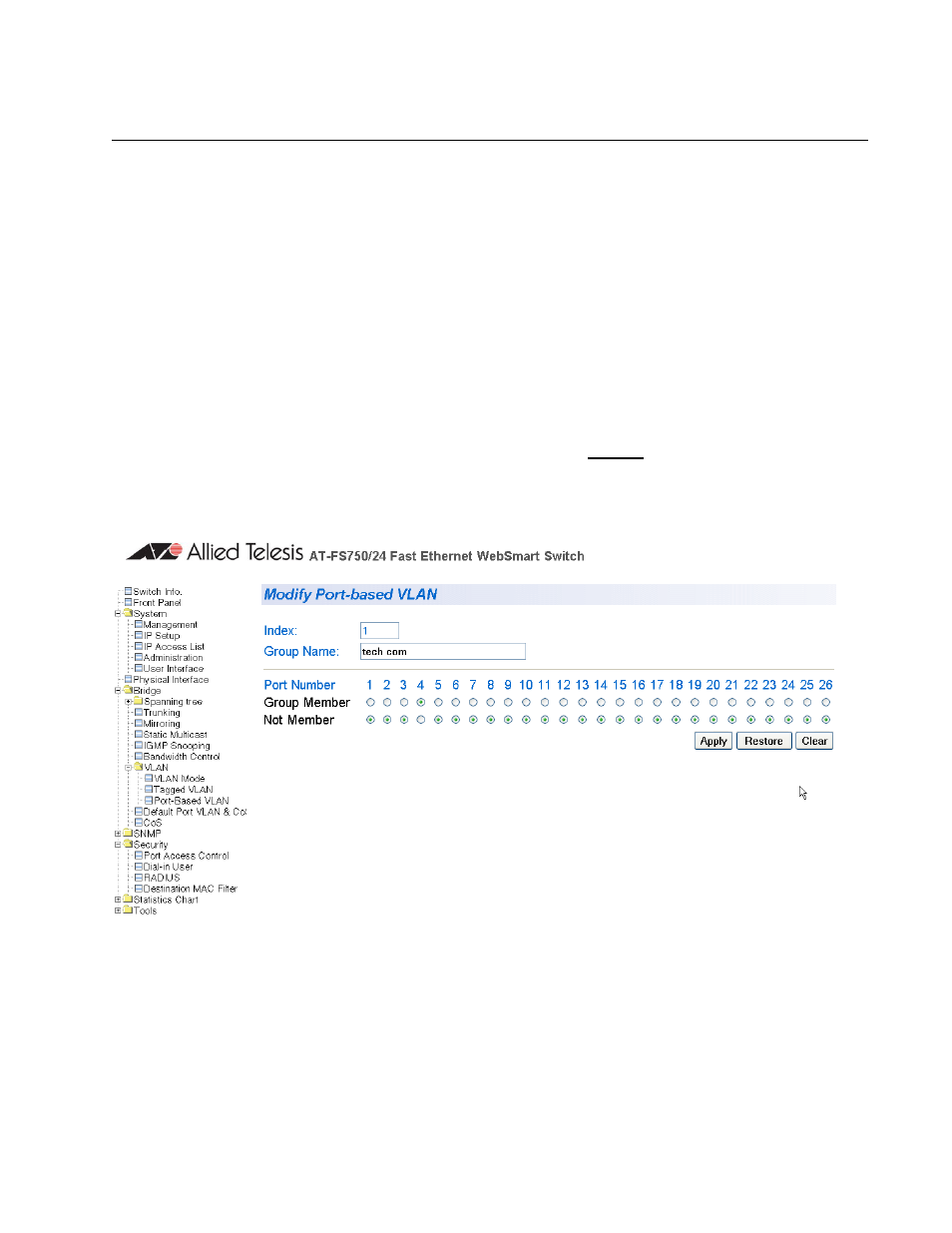

Figure 80. Modify Port-based VLAN
5. To change the VLAN ID, type a VLAN ID in the Index field.
You can choose a value between 2 and 4,000.
